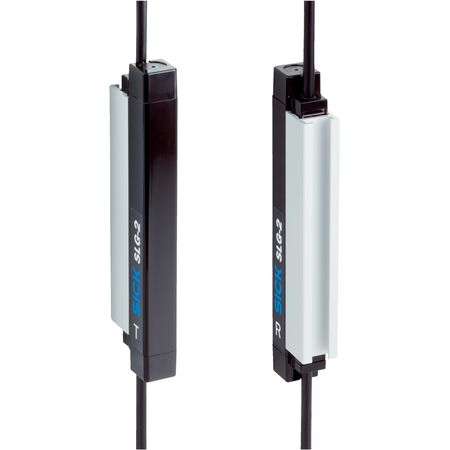

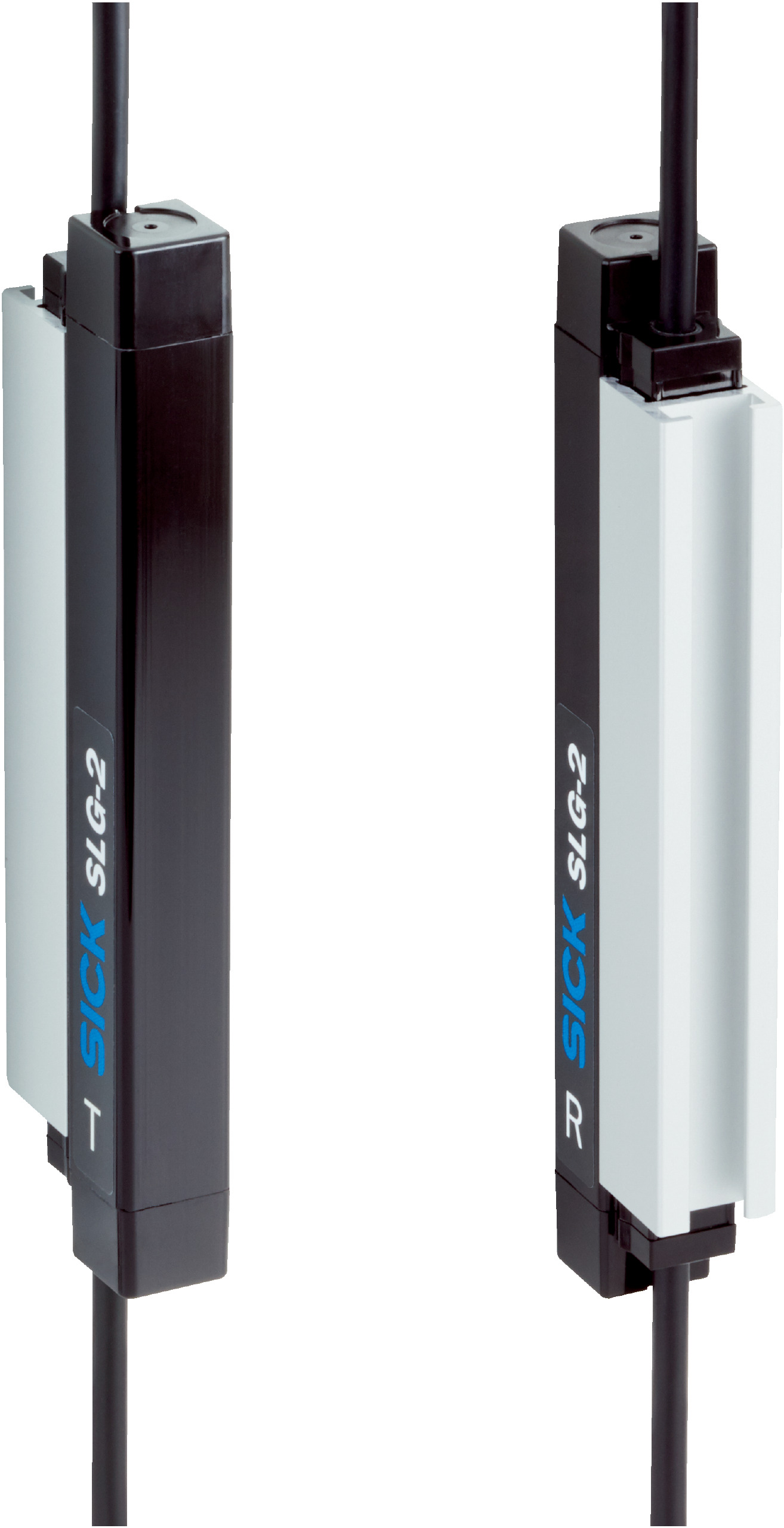

SICK FlexChain Light Grid | 20 Beams | 55 mm Minimum Detection | IP65 & IP67 Rated | by SICK
The SICK FlexChain Light Grid is designed for industrial automation, featuring a robust sender/receiver system with 20 beams and a minimum detectable object size of 55 mm. With a detection height of 1,000 mm and an infrared light source at 850 nm, this light grid ensures reliable object detection and safety in various applications, including material handling and access control in hazardous areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object: 55 mm
- Beam separation: 50 mm
- Number of beams: 20
- Detection height: 1,000 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male and female connectors, 4-pin, 0.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected
- Protection class: III
- Front screen material: PMMA
- Maximum range: 9.1 m
- Minimum range: ≥ 0 m
- Operating range: 6.5 m
- Scanning time: 1.8 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 999mm x 12mm x 24mm
- Weight: 0.57 kg
Key Features
- Sender/receiver light grid system with 20 beams
- Minimum detectable object size of 55 mm
- Detection height of 1,000 mm
- Slim optical light exit design
- Infrared light source with 850 nm wavelength
- High protection rating IP65 and IP67
- Fast scanning time of 1.8 ms
- Robust against shock and vibration
- LED indication for status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Material handling and packaging lines
- Intrusion detection and access control in hazardous areas
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG50S-100SBKA1K01 FlexChain Guest Light Grid System is available for immediate purchase, ideal for industrial automation and safety applications.
