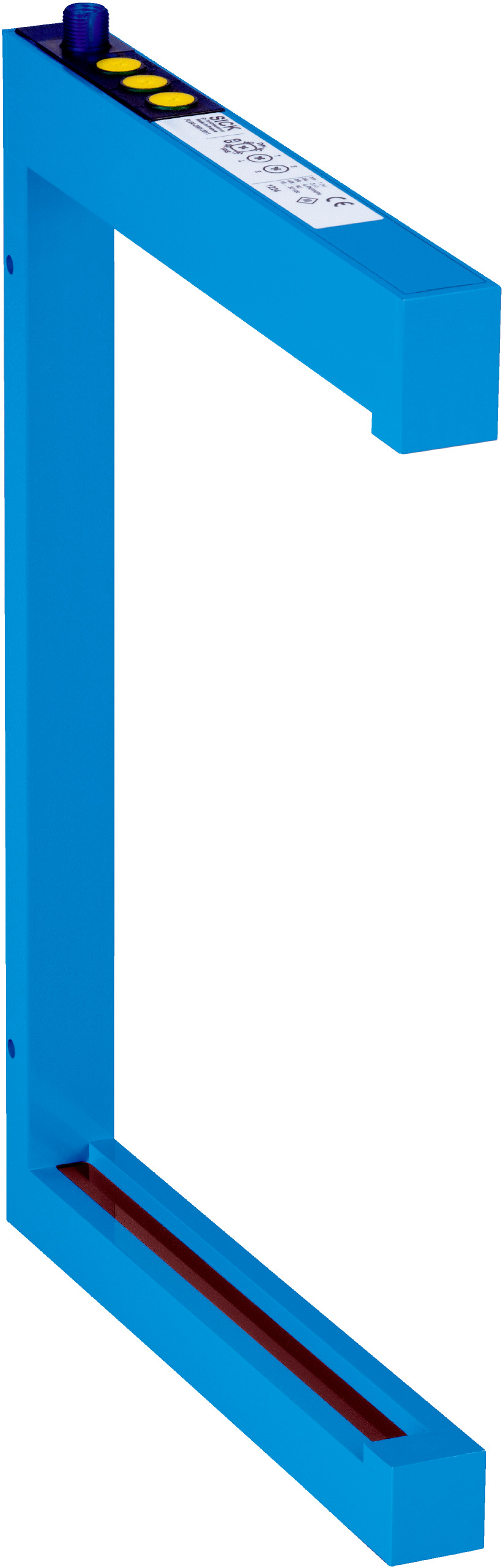

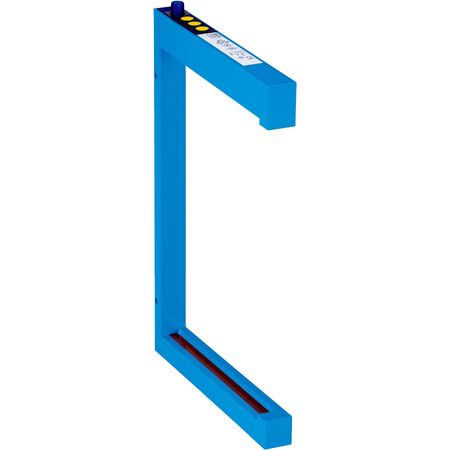

SICK FLG2-20025021 Object Detection Sensor | 2 mm MDO | IP65 Rated | Adjustable Light/Dark Switching | by SICK
The SICK FLG2-20025021 Object Detection Sensor features a sender/receiver principle with a minimum detectable object size of 2 mm dynamic and 6 mm static. Ideal for industrial automation and quality control, this robust sensor offers an adjustable light/dark switching output and a high switching frequency of 5,000 Hz, ensuring fast and reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object (MDO): 2 mm dynamic, 6 mm static
- Beam separation: 2 mm
- Detection height: 250 mm
- Output function: Light/dark switching adjustable by rotary switch
- Wave length: 880 nm
- Supply voltage: DC 18 V to 30 V
- Ripple: < 10%
- Output current max: ≤ 100 mA
- Off delay: 0 s to 5 s
- Initialization time: 0.3 s
- Switching output: PNP, NPN
- Connection type: Male connector M12, 4-pin
- Housing material: Aluminum, painted
- Indication: LED
- Enclosure rating: IP65
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Switching frequency: 5,000 Hz
- Detection area: 250 mm x 200 mm
- Response time: < 0.1 ms
- Shock resistance: EN 60068-2-27
- Vibration resistance: EN 60068-2-6
- EMC: EN 60947-5-2
- Ambient light immunity: Sunlight 10,000 lx
- Operating temperature: 0 °C to +60 °C
- Storage temperature: -20 °C to +80 °C
- Dimensions (H x L x W): 230mm x 25mm x 312mm
- Weight: 0.86 kg
Key Features
- Open device version with sender/receiver sensor principle
- Minimum detectable object size of 2 mm dynamic and 6 mm static
- Adjustable light/dark switching output via rotary switch
- High switching frequency of 5,000 Hz for fast response
- Robust aluminum painted housing with IP65 enclosure rating
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Quality control in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with DC 18 V to 30 V supply voltage
- Protected against interference pulses to ensure long-term reliability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FLG2-20025021 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
