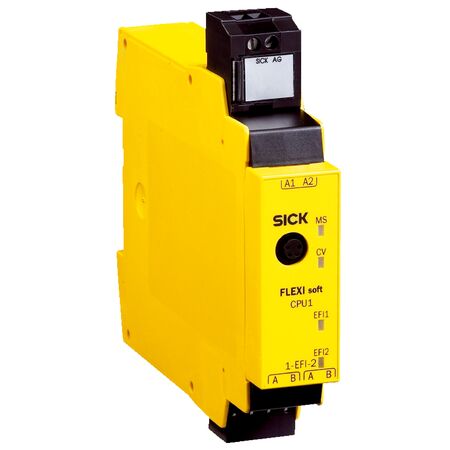

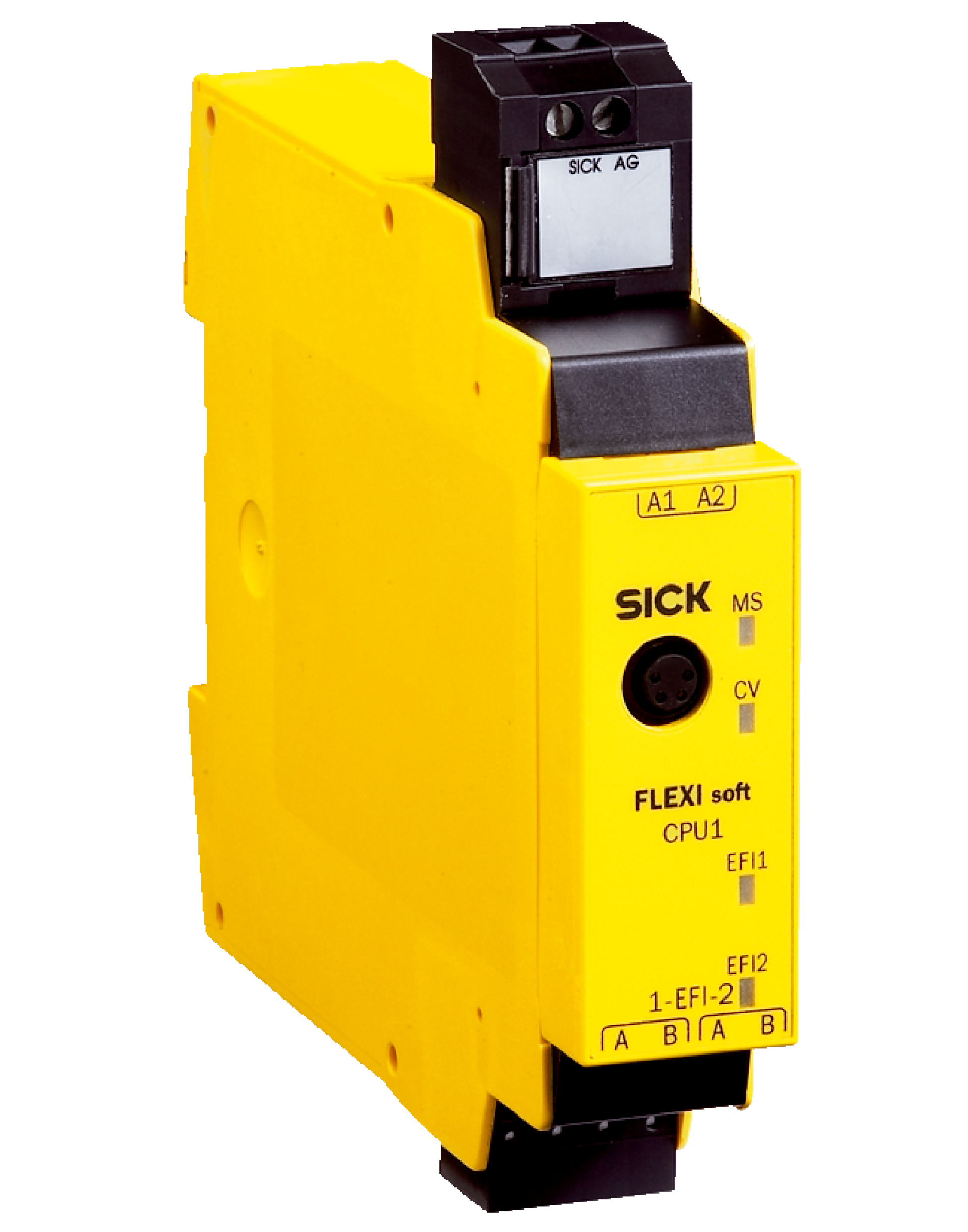

SICK FX3-CPU130002 Safety Controller Module | SIL 3 | Category 4 | 20-Year Mission Time | by SICK
The SICK FX3-CPU130002 Safety Controller Module is designed for industrial automation safety control, featuring a SIL 3 safety integrity level and Category 4 compliance. Configurable via Flexi Soft Designer software, it ensures reliable machine safety monitoring with a long mission time of 20 years and low power consumption of ≤ 2.5 W, making it ideal for high safety standard applications in factory automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK FX3-CPU130002 Safety Controller Module | SIL 3 | Category 4 | 20-Year Mission Time | by SICK
Brand: SICK
SKU: 1043784
Alternatively Known As: FX3 CPU 130002, SICK Safety Controller Module, Flexi Soft Main Module
Technical Specifications
- Module type: Main module
- Configuration method: Via Flexi Soft Designer software
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 1.69 x 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- System connection: System plug (ordered separately)
- Number of EFI interfaces: 2
- Connection type: Plug-in spring terminals
- Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin)
- Protection class: III (EN 61140)
- Voltage supply type: PELV or SELV
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Overvoltage category: II (EN 61131-2)
- Switch-on time: ≤ 18 seconds
- Enclosure rating: IP20 (EN 60529)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.119 kg
Key Features
- Main module configurable via Flexi Soft Designer software
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Mean probability of dangerous failure per hour (PFHD) 1.69 x 10^-9
- Mission time of 20 years
- Safe SICK device communication and networking with Flexi Link
- Two EFI interfaces with plug-in spring terminals
- RS-232 configuration and diagnostics interface (M8 female connector, 4-pin)
- Protection class III (EN 61140)
- Supply voltage 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption ≤ 2.5 W
- Overvoltage category II (EN 61131-2)
- Switch-on time ≤ 18 seconds
- Enclosure rating IP20 (EN 60529)
- Operating temperature range -25 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Non-condensing air humidity up to 95%
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety control systems and compliant with relevant safety standards.
Applications
- Industrial automation safety control
- Machine safety monitoring
- Factory automation systems requiring high safety standards
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of ≤ 2.5 W reduces energy usage
- Long mission time of 20 years supports sustainable operation
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-CPU130002 Main Module is available for immediate purchase, ideal for industrial safety and automation applications.
