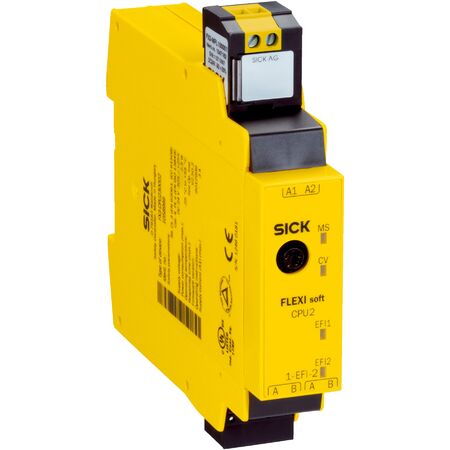

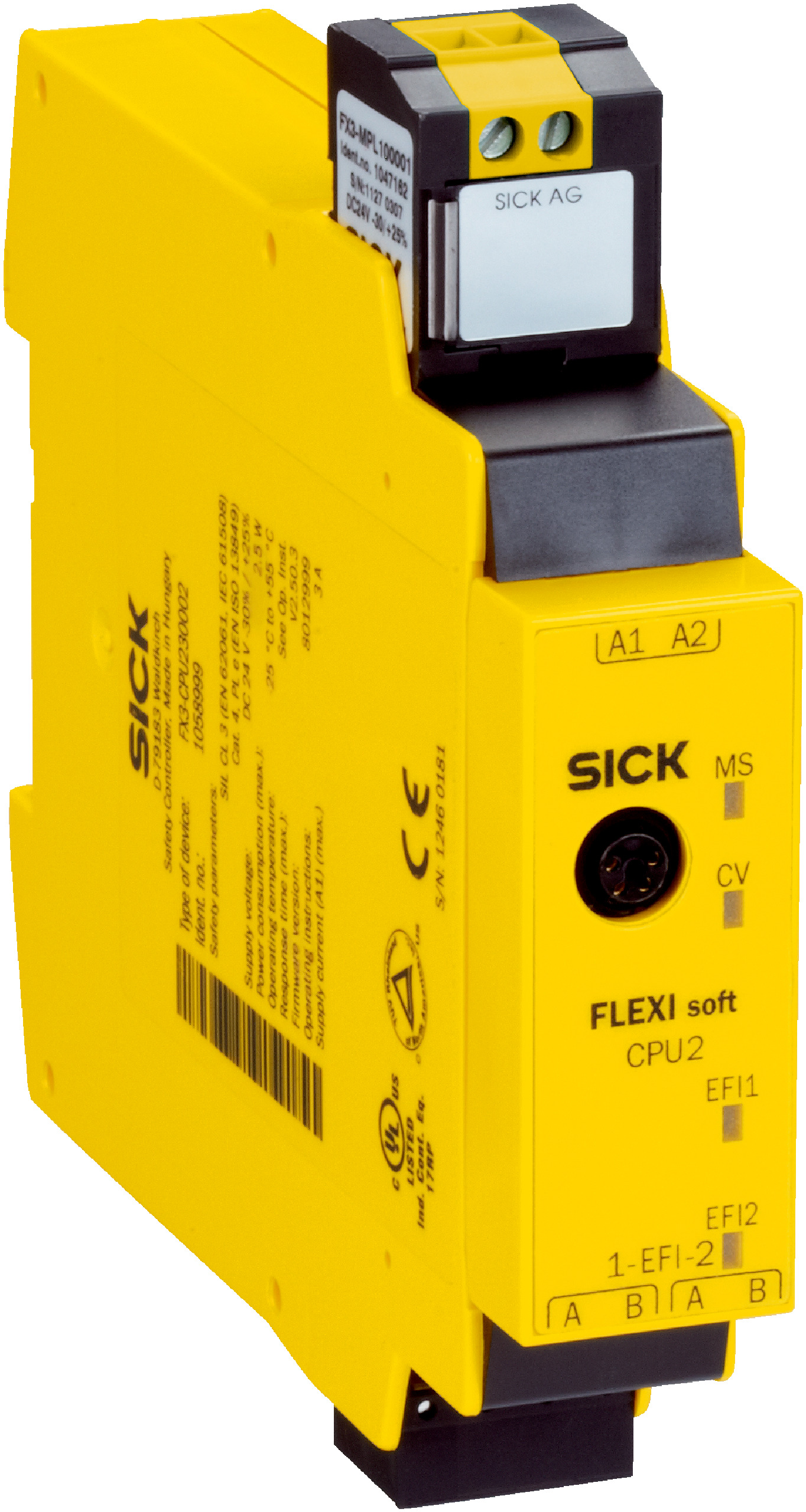

SICK FX3-CPU230002 Safety Control Module | SIL 3 | Category 4 | PL e | by SICK
The SICK FX3-CPU230002 Safety Control Module is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With low power consumption and automatic configuration recovery, it ensures reliable machine safety monitoring and automation applications, making it ideal for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 1.69 x 10^-9
- Mission Time: 20 years
- System connection via system plug (ordered separately)
- Number of EFI interfaces: 2
- Configuration and diagnostics via RS-232 (M8 female connector, 4-pin)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Protection class: III (EN 61140)
- Overvoltage category: II (EN 61131-2)
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.119 kg
Key Features
- Main module configurable via Flexi Soft Designer software
- Supports safe SICK device communication and safe networking with Flexi Link
- Automatic Configuration Recovery (ACR) feature
- Two EFI interfaces with plug-in spring terminals
- RS-232 configuration and diagnostics interface with M8 female connector
- Protection class III with PELV or SELV voltage supply
- Low internal power consumption (≤ 2.5 W)
- Overvoltage category II compliant
- Switch-on time ≤ 18 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety control systems and electrical standards to ensure compliance and safety.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long operational life minimizing electronic waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK FX3-CPU230002 Main Module is available for immediate purchase, ideal for industrial safety and automation control applications.
