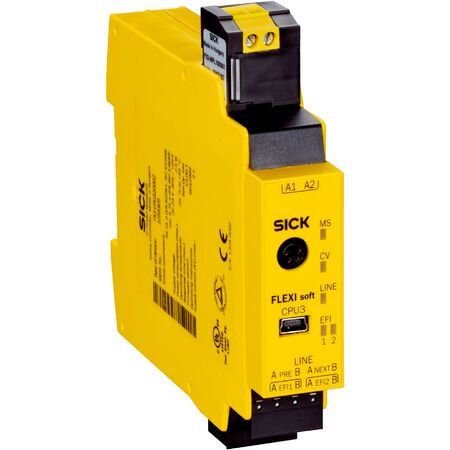

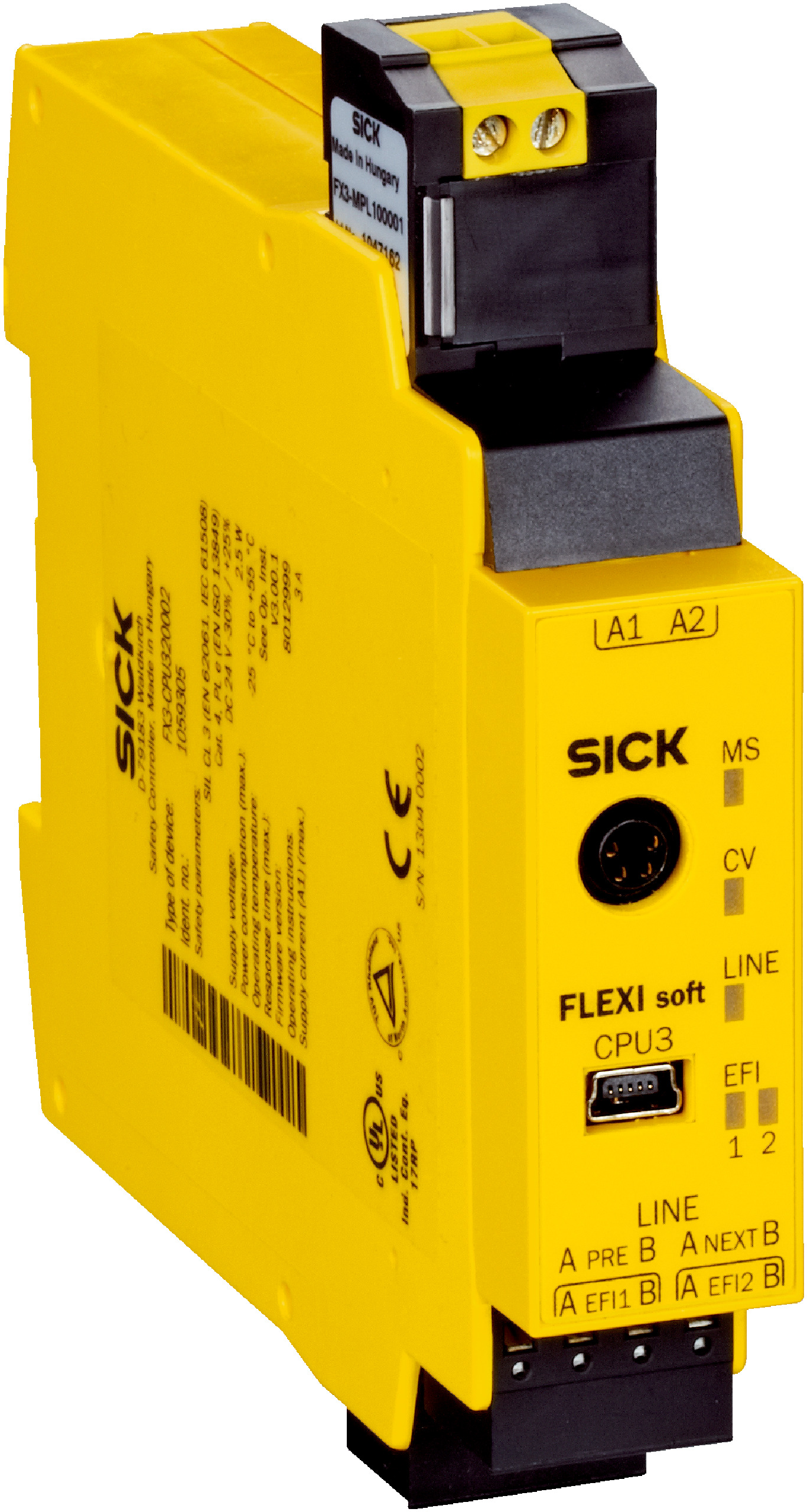

SICK FX3-CPU320002 Safety Controller Module | SIL 3 & Category 4 | Low Power Consumption | by SICK
The SICK FX3-CPU320002 Safety Controller Module is designed for industrial safety control systems, featuring SIL 3 safety integrity and Category 4 compliance. With low power consumption and robust communication interfaces, it ensures reliable machine safety monitoring and automation applications, making it ideal for professionals in safety control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 1.69 x 10^-9
- Mission Time: 20 years
- Number of EFI interfaces: 2
- System connection: System plug (ordered separately)
- Configuration and diagnostics interface: RS-232 (M8 female connector, 4-pin), Mini-USB
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal power consumption: ≤ 2.5 W
- Enclosure rating: IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Air humidity: ≤ 95%, non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.133 kg
Key Features
- Main module configurable via Flexi Soft Designer software
- Supports safe SICK device communication and safe networking via Flexi Link and Flexi Line
- Automatic Configuration Recovery (ACR) feature
- Plug-in spring terminal connections
- RS-232 and Mini-USB interfaces for configuration and diagnostics
- Protection class III with PELV or SELV voltage supply
- Low internal power consumption (≤ 2.5 W)
- Overvoltage category II compliant
- Switch-on time ≤ 18 seconds
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety control systems and relevant standards.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long operational life minimizing electronic waste
Warranty Information
Warranty terms as per SICK standard policy; typically 1-2 years against manufacturing defects.
Available Now
The SICK FX3-CPU320002 Main Module is available for immediate purchase, ideal for industrial safety and automation control applications.
