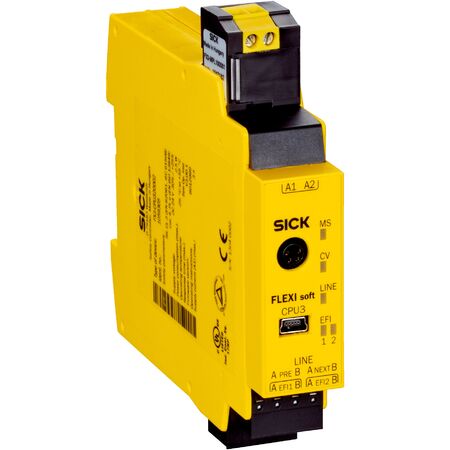

SICK FX3-CPU320012 Safety Controller Module | SIL 3 & PL e Compliance | Protective Coating | by SICK
The SICK FX3-CPU320012 Safety Controller Module is designed for industrial safety control systems, featuring SIL 3 and PL e compliance for high safety integrity. With a protective coating for challenging environments and support for safe device communication, this module is ideal for machine safety monitoring and automation applications, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 1.69 x 10^-9
- Mission Time: 20 years
- Supply Voltage: 24 V DC (16.8 V DC to 30 V DC)
- Internal Power Consumption: ≤ 2.5 W
- Overvoltage Category: II (EN 61131-2)
- Switch-on Time: ≤ 18 seconds
- Protection Class: III (EN 61140)
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Dimensions (W x H x D): 22.5 mm x 96.5 mm x 120.6 mm
- Weight: 133 g (± 5%)
- Dimensions (H x L x W): 96.5mm x 120.6mm x 22.5mm
- Weight: 0.133 kg
Key Features
- Main module with protective coating for challenging ambient conditions including sulfur resistance
- Configuration via Flexi Soft Designer software
- Supports safe SICK device communication and safe networking via Flexi Link and Flexi Line
- Automatic Configuration Recovery (ACR) feature
- Plug-in spring terminal connections
- RS-232 and Mini-USB interfaces for configuration and diagnostics
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial safety systems and SICK products.
Applications
- Industrial safety control systems
- Machine safety monitoring
- Automation safety applications requiring SIL 3 and PL e compliance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low internal power consumption (≤ 2.5 W) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-CPU320012 Main Module is available for immediate purchase, ideal for industrial safety and automation applications requiring high safety integrity.
