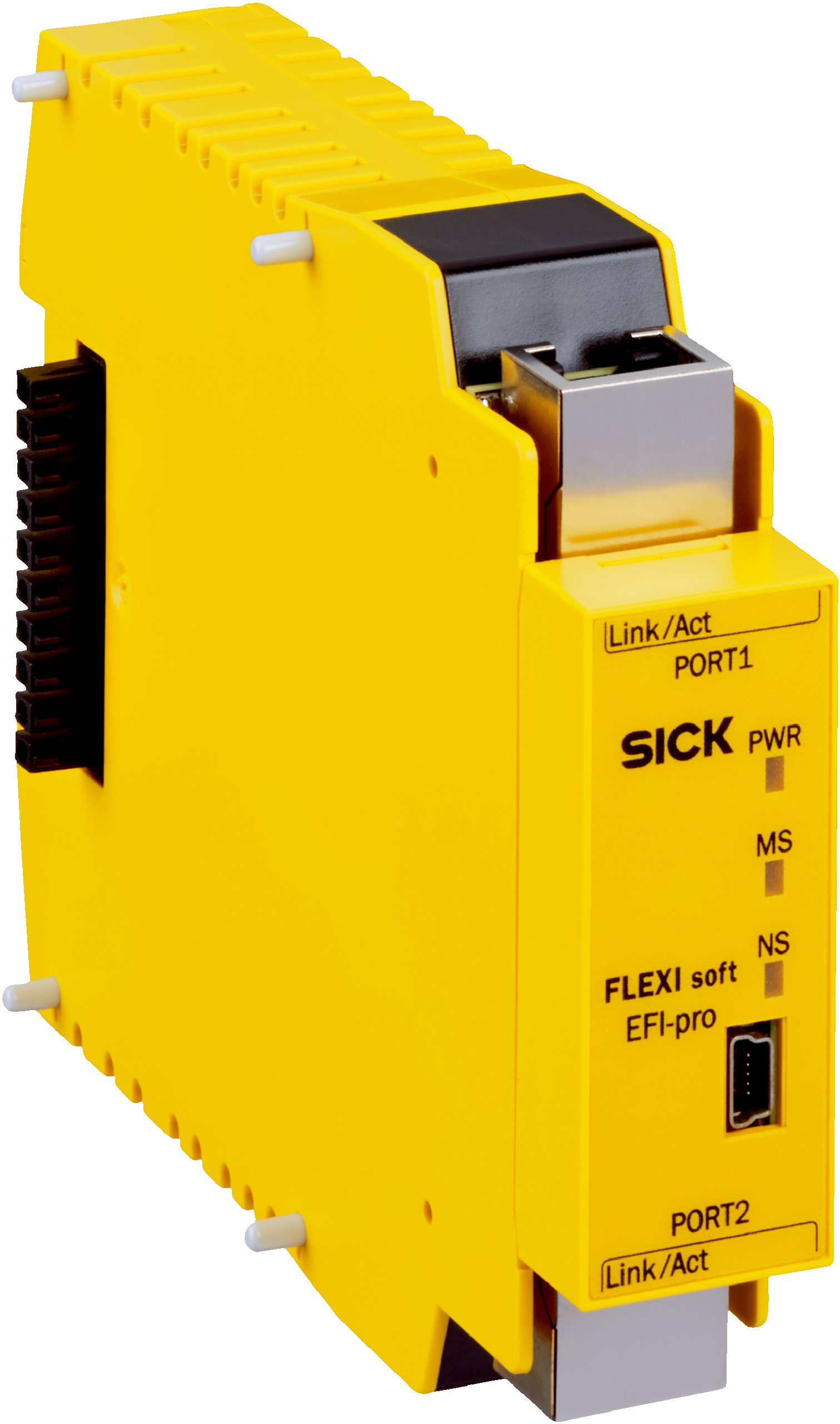

SICK FX3 Gateway Module | SIL 3 Safety Level | Integrated Ethernet Switch | IP20 Enclosure | by SICK
The SICK FX3 Gateway Module is designed for industrial automation safety communication, supporting EFI-pro and EtherNet/IP™ CIP Safety™ networks. With a SIL 3 safety level and integrated 3-port managed Ethernet switch, it ensures reliable data transmission and up to 10 safe connections. Ideal for factory and process automation, this module enhances safety and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 0.3 x 10^-9
- Mission Time (TM): 20 years
- Fieldbus Networks: EFI-pro, EtherNet/IP CIP Safety
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-TX) autosensing
- Requested Packet Interval (RPI): Producing 4 ms to 500 ms (multiple of 4 ms), Consuming 4 ms to 500 ms (multiple of 1 ms)
- Number of Data Bytes: RX ≤ 48 Byte, TX ≤ 50 Byte
- Number of Safe Connections: Consuming ≤ 10, Producing ≤ 10
- Connection Type: 2 x female RJ-45 connectors
- Configuration Interface: Mini-USB
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3.5 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.135 kg
Key Features
- Gateway module supporting EFI-pro and EtherNet/IP™ CIP Safety™ industrial networks
- Configuration via Safety Designer software
- Integrated 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Data transmission rates of 10 Mbit/s and 100 Mbit/s autosensing
- Supports up to 10 safe connections for both consuming and producing
- Mini-USB interface for configuration and diagnostics
- Protection class III (EN 61140) with voltage supply via FLEXBUS+
- Low internal power consumption of ≤ 3.5 W
Professional Installation Requirements
- Installation and configuration should be performed by qualified industrial automation professionals familiar with safety network protocols and standards.
Applications
- Industrial automation safety communication
- Integration of safety-related fieldbus networks
- Factory and process automation requiring SIL 3 safety level
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables safer and more reliable industrial automation reducing risk of accidents
- Supports efficient network communication reducing downtime and energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

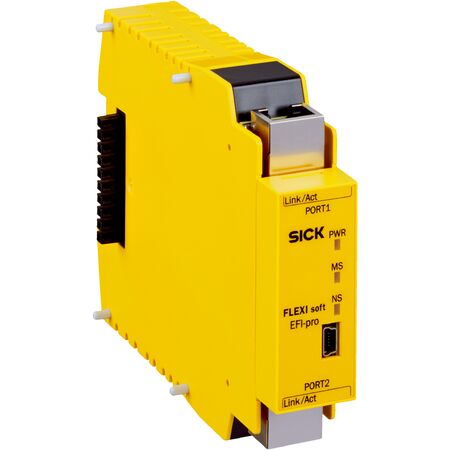

The SICK FX3-GEPR00000 Gateway Module is available for immediate purchase, ideal for industrial automation and safety network integration applications.
