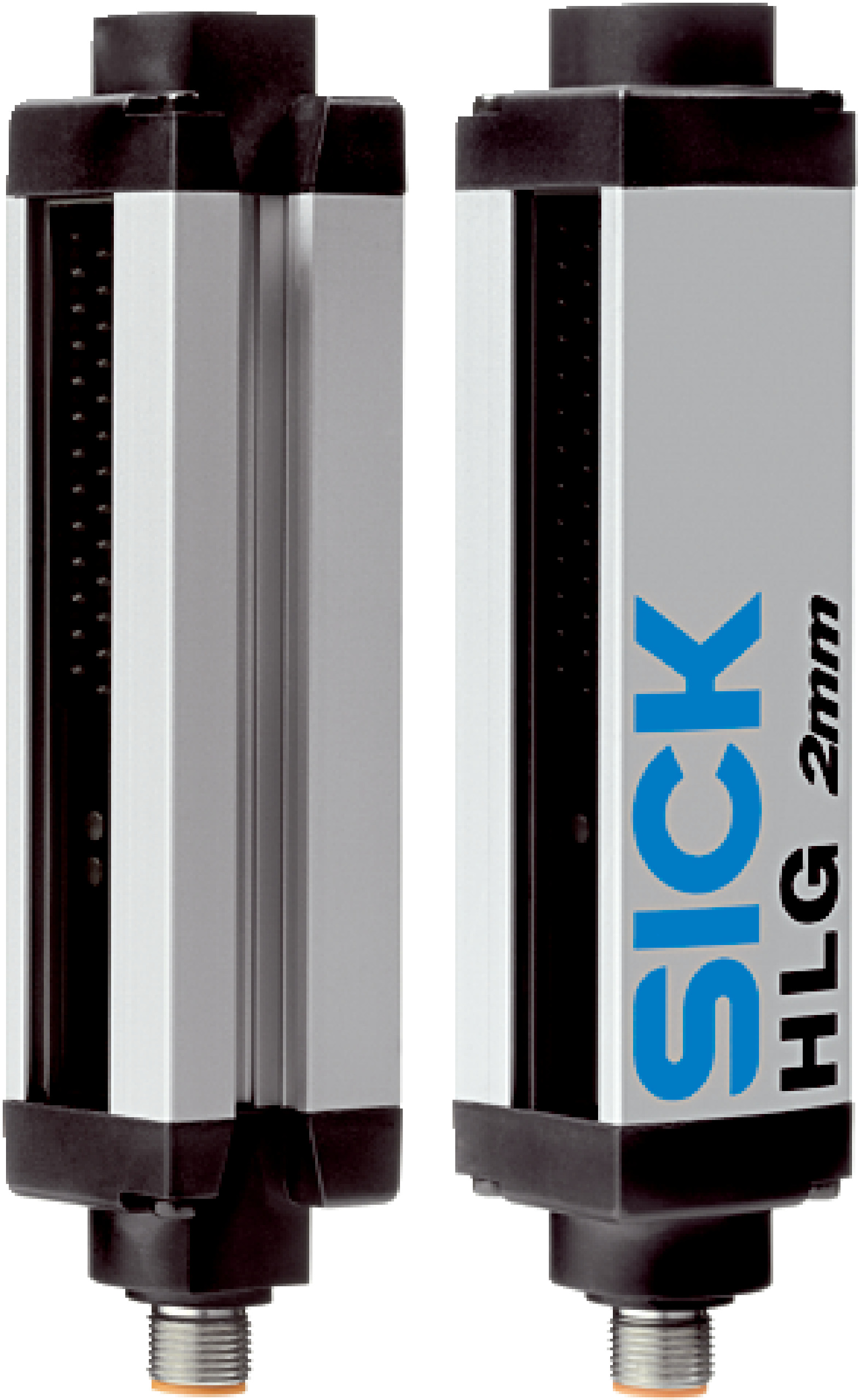

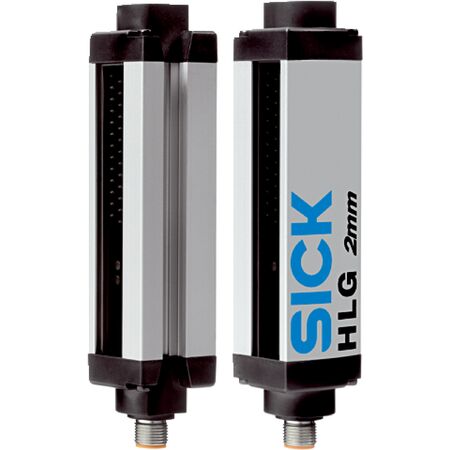

SICK HLG2-050F811 Multi-Beam Sensor | 26 Beams | 2 mm Beam Separation | IP54 Rated | by SICK
The SICK HLG2-050F811 multi-beam sensor features a sender/receiver principle with 26 beams and a 2 mm beam separation, making it ideal for industrial automation and safety monitoring applications. With a robust aluminum housing and an IP54 enclosure rating, this sensor ensures reliable performance in challenging environments, providing a maximum operating range of 2 m and a quick response time of just 3 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK HLG2-050F811 Multi-Beam Sensor | 26 Beams | 2 mm Beam Separation | IP54 Rated | by SICK
Brand: SICK
SKU: 1029853
Alternatively Known As: SICK multi-beam sensor, SICK HLG2 sensor, 26 beam sender receiver sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: Parallel beam, 2 mm
- Number of beams: 26
- Detection height: 50 mm
- Wavelength: 950 nm
- Supply voltage: DC 15 V to 30 V
- Power consumption sender: 56.3 mA
- Power consumption receiver: 125.2 mA
- Ripple: < 5 V pp
- Output current max: ≤ 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 0.8 s
- Switching output: 2 x PNP
- Output mode: Q dark switching
- Teach-in input: PNP
- Connection type: Male connector M12, 8-pin
- Housing material: Aluminum
- Indication: LED
- Synchronization: Cable
- Enclosure rating: IP54
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 2 m
- Minimum range: ≥ 0 mm
- Operating range: 1.5 m
- Response time: 3 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: ≤ 50,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 123mm x 29mm x 34mm
- Weight: 0.135 kg
Key Features
- Sender/receiver sensor principle
- 26 beams with 2 mm beam separation
- Detection height of 50 mm
- Operating range of 1.5 m with maximum range of 2 m
- Response time of 3 ms for parallel beam
- Robust aluminum housing with IP54 enclosure rating
- LED indication and synchronization via cable
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient DC supply voltage
- Durable aluminum housing reduces material waste and extends product life
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HLG2-050F811 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
