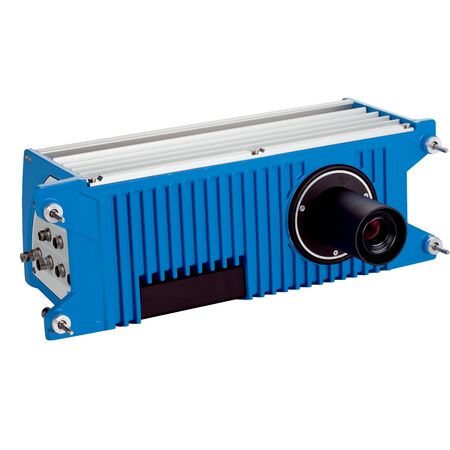

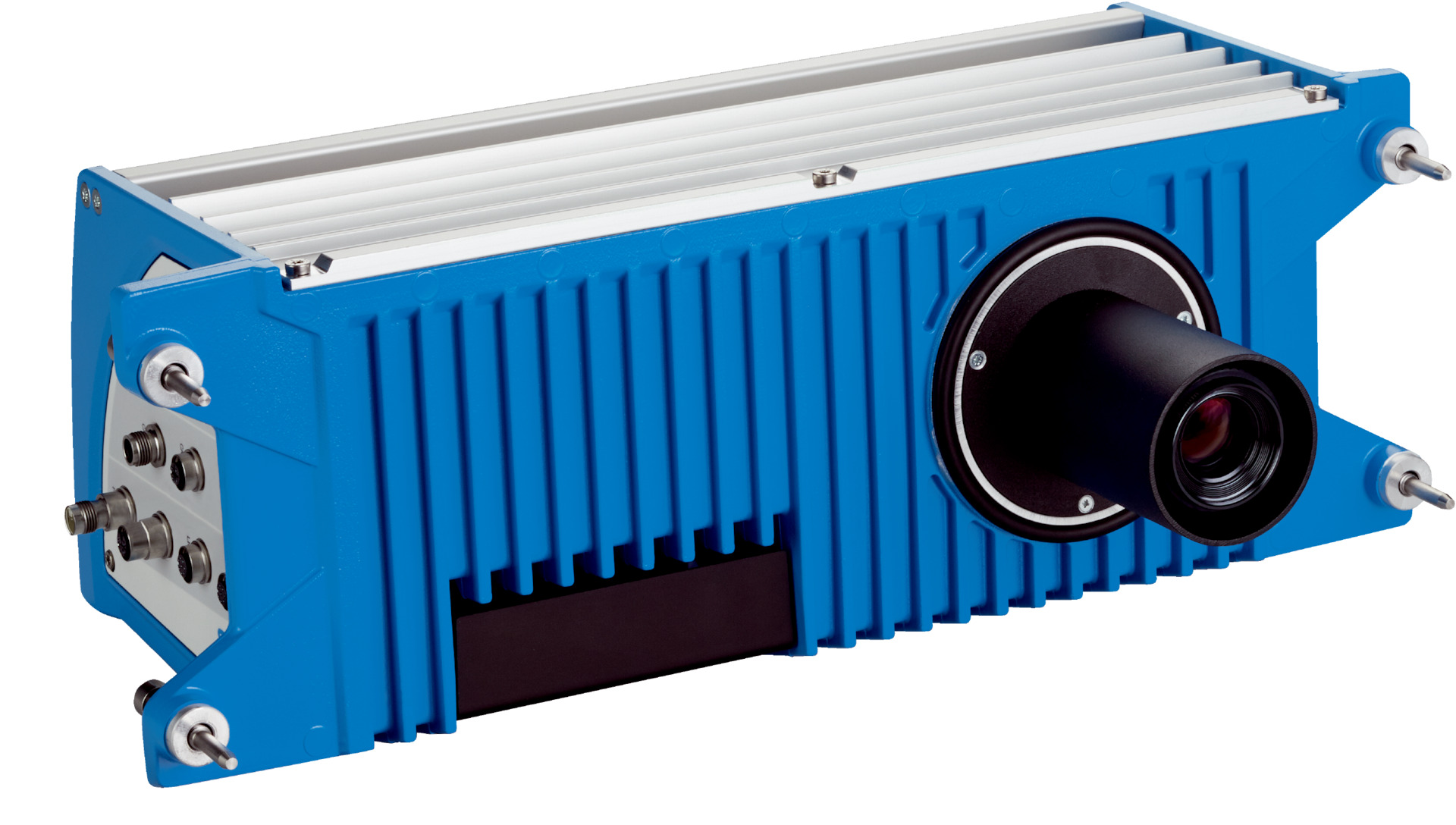

SICK ICD890-46342010 Line Camera | 8192 px CMOS Sensor | 50 kHz Line Frequency | IP65 Rated | by SICK
The SICK ICD890-46342010 Line Camera features a high-resolution 8192 px CMOS color sensor and a maximum line frequency of 50 kHz, making it perfect for indoor industrial automation and vision system applications. With its robust IP65-rated aluminum housing and multiple connection options, this camera excels in barcode and 2D code reading, object classification, and hazardous material detection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS Color line sensor
- Sensor resolution: 8192 px (200 dpi)
- Processor: High performance
- Line frequency: Max. 50 kHz
- Lens: Integrated 95 mm focal length
- Reading distance: 1550 mm to 3600 mm
- Field of view: 1200 mm (170 dpi), 1035 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating mode: Forward, backward, start/stop
- Connection types: Multiple M12 connectors, USB 2.0, Ethernet (3x), CAN (2x)
- Supply voltage: 24 V DC, –10 % +20 %
- Power consumption: Typ. 80 W, standby typ. 50 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 61010-1:2010-10
- Weight: Approx. 11 kg
- MTBF: 120,000 h
- MTTR: < 10 min
- Readable code structures: 1D, 2D, stacked, plain text
- Supported barcode types: GS1-128, EAN 128, UPC, GTIN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, postal codes
- Supported 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
- Skew angle: ≤ 75°
- Transport speed: ≤ 4.5 m/s
- Minimum object distance: ≥ 50 mm
- Number of objects per second: ≤ 10
- Image output formats: JPEG, TIFF, BMP
- Data transmission rate: 20 kbit/s to 500 Mbit/s
- Configuration software: SOPAS ET
- Memory: 2.5 inch SSD and microSD card
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Line camera with integrated 1D/2D code decoder and image output in black/white and color
- Dynamic and fixed optical focus with 95 mm integrated lens
- High resolution CMOS color line sensor with 8192 px (200 dpi)
- High performance processor with max line frequency of 50 kHz
- Extended functions including code quality analysis, empty tote detection, hazardous material detection, object classification, and 2D dimensioning
- Multiple connection types including Ethernet, CAN, USB, and various M12 connectors
- Robust aluminum die cast housing with IP65 rating and protection class III
- Supports various 1D and 2D barcode types including GS1-128, QR code, Data Matrix ECC200, and more
- Image output supports JPEG, TIFF, BMP formats with FTP, AWS S3, Samba, and REST server options
- Electromagnetic compatibility and vibration/shock resistance compliant with IEC standards
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper integration with industrial systems and compliance with electrical safety standards.
Applications
- Indoor area applications requiring high-performance line camera imaging and code decoding
- Industrial automation for barcode and 2D code reading
- Object classification, hazardous material detection, and dimensioning in manufacturing lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient 24 V DC operation with low standby power consumption
- Durable aluminum housing designed for long service life reducing waste
- Supports digital image processing reducing need for physical labels and manual inspections
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK ICD890-46342010 Line Camera is available for immediate purchase, ideal for indoor industrial automation and vision system applications.
