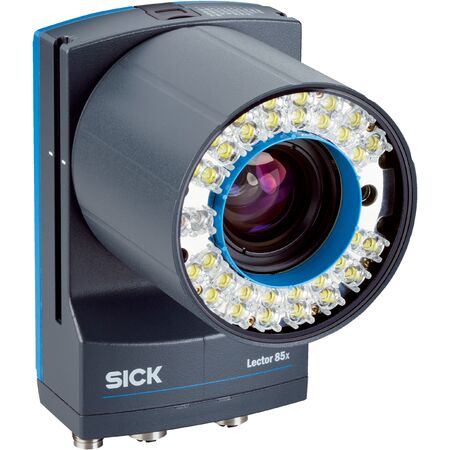

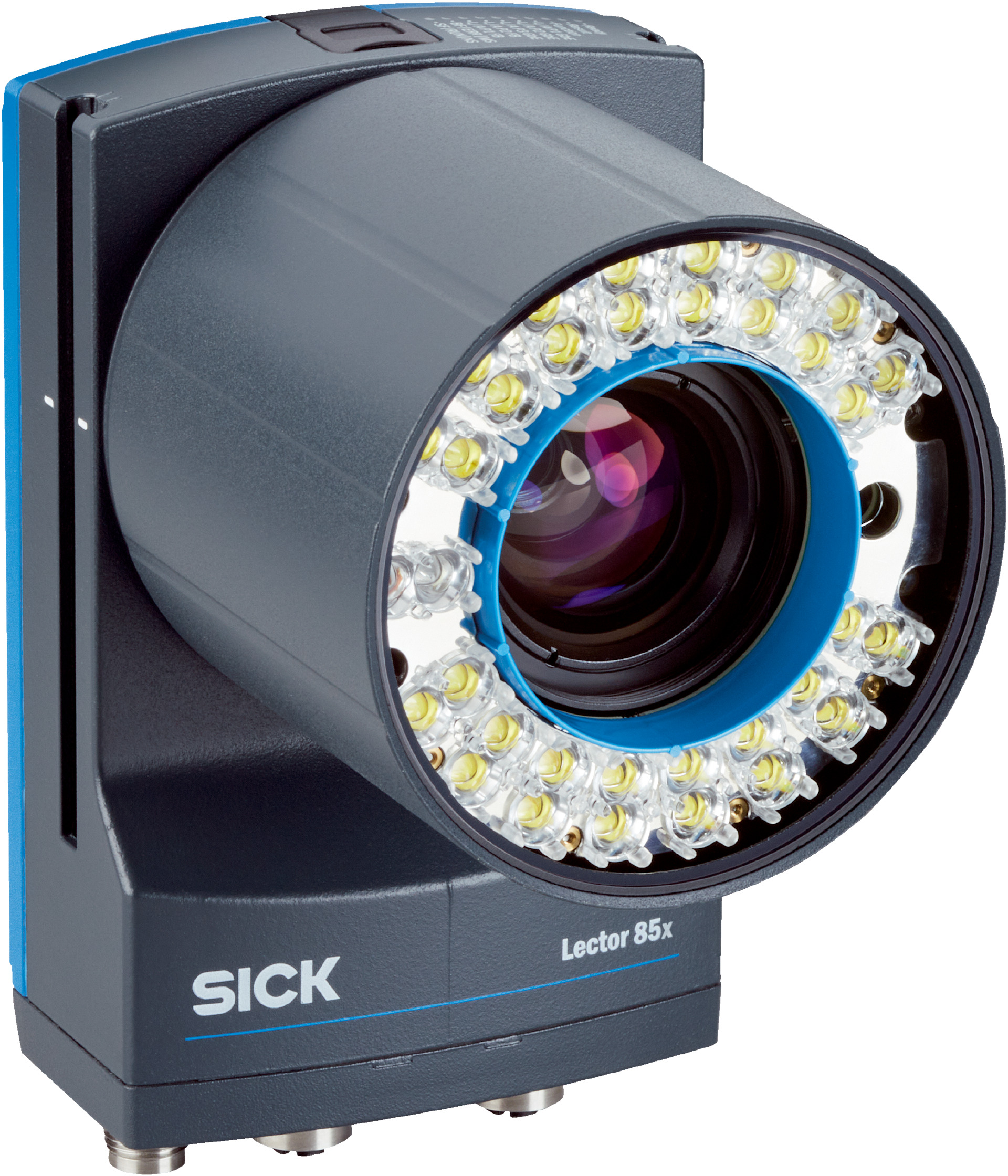

SICK Industrial Barcode Scanner | 12MP CMOS Sensor | Adjustable Focus | IP65 Rated | by SICK
The SICK Industrial Barcode Scanner features a 12MP CMOS monochrome sensor with a resolution of 4096 x 3008 px, making it perfect for indoor industrial automation and barcode reading applications. With adjustable manual optical focus and integrated white LED illumination, this scanner ensures high-quality image capture and reliable performance in quality control and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 3008 px (12 MP)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Optical focus: Adjustable manual
- Lens: C-mount, 12 mm focal length, aperture 1.8 to 16
- Scanning frequency: 15 Hz at full resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin, 8-pin)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010-1 compliant
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Weight: 640 g without lens and cables
- MTBF: 100,000 hours
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with IEC 60825-1
- C-mount lens with 12 mm focal length and aperture range 1.8 to 16
- Scanning frequency of 15 Hz at full resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple industrial interfaces including Ethernet, EtherNet/IP, CAN, Serial RS-232, USB 2.0, PROFINET
- Robust aluminum die cast housing with IP65 rating
- Scratch-proof 2 mm thick glass window
- Operating temperature 0°C to +50°C
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Shock and vibration resistant per EN 60068 standards
- Supports 1D, 2D, and stacked barcode types
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Indoor area industrial automation
- Barcode and 2D code reading
- Quality control and inspection
- Logistics and packaging
Standards & Compliance
- AS/NZS 61010.1 – Safety requirements for electrical equipment for measurement, control and laboratory use
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8512R-1MCICXAF2SXXXX sensor camera is available for immediate purchase, ideal for indoor industrial automation and barcode reading applications.
