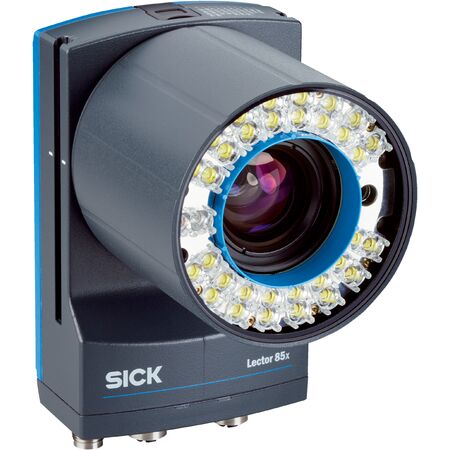

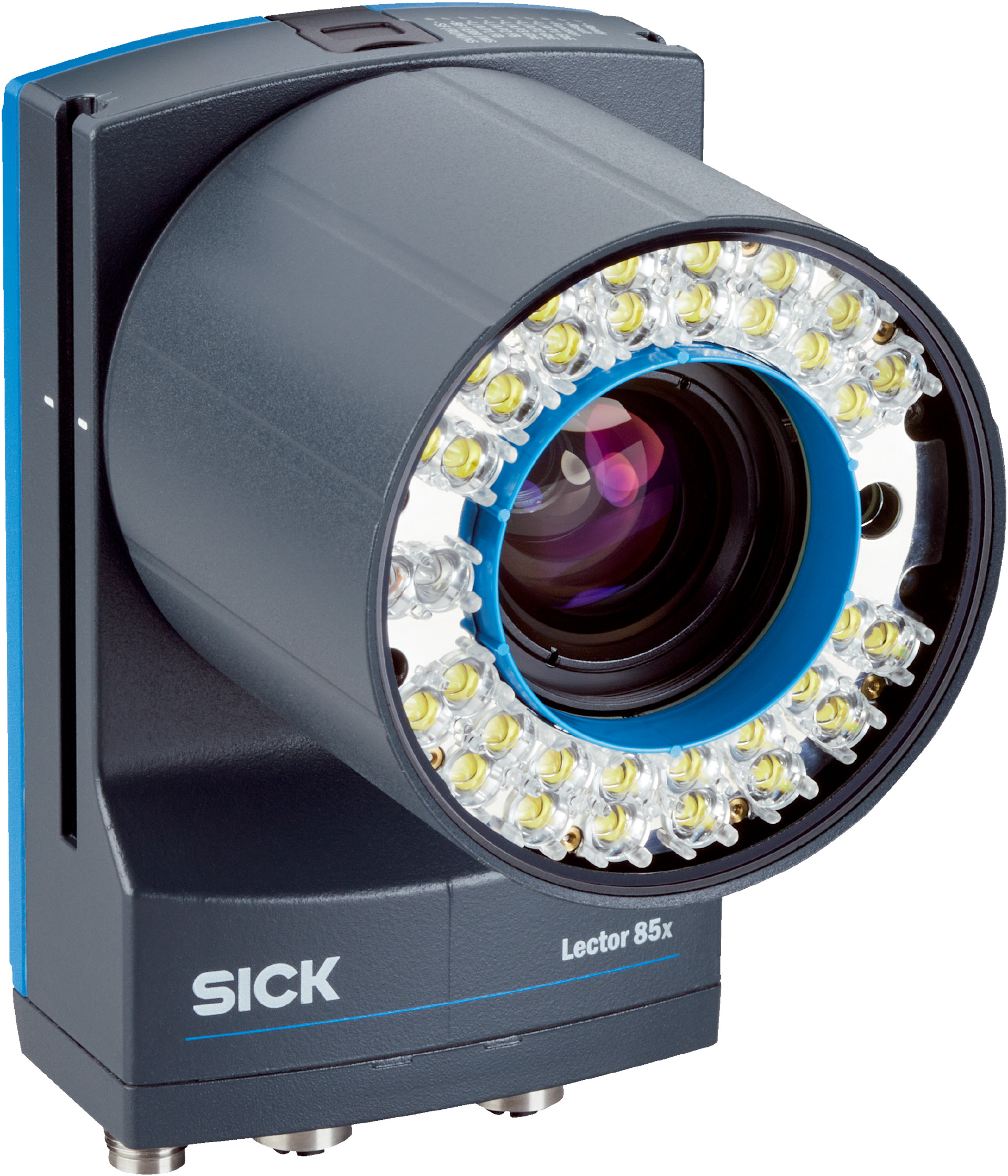

SICK Industrial Barcode Scanner | 5MP CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The SICK Industrial Barcode Scanner features a 5MP CMOS monochrome sensor with a resolution of 2464 x 2048 pixels, making it perfect for indoor industrial code reading and inspection. With adjustable optical focus and integrated white LED illumination, this scanner is designed for automated manufacturing and logistics systems, ensuring high scanning frequency and support for various barcode types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 2464 px x 2048 px (5 Megapixel)
- Optical focus: Adjustable manual
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- LED class: Risk group 1 (low risk) per EC 62471-1 and EN 62471-1
- Laser class: Class 1, compliant with EN 60825-1 and IEC 60825-1
- Lens: C-mount, 1/1.8" optical format, 12 mm focal length, aperture 1.8 to 11
- Scanning frequency: 30 Hz at 5 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors for power, CAN, serial, Ethernet (Megabit and Gigabit), external illumination, and I/O
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing: Aluminum die cast, anthracite gray (RAL 7016)
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65 per IEC 60529
- Electrical safety: EN 61010-1 compliant
- MTBF: 100,000 hours
- Readable codes: 1D, 2D, stacked codes including Code 128, GS1-128, EAN, UPC, Data Matrix ECC200, QR code, Aztec, PDF417
- Interfaces: Ethernet (TCP/IP), EtherNet/IP, PROFINET, CAN, Serial (RS-232, RS-422), USB 2.0
- Network management: SNMP, MIB-2, LLDP, MRP client support
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Ambient operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Relative humidity: ≤ 90%, non-condensing
- Vibration and shock resistance: EN 60068-2 series
- Electromagnetic compatibility: IEC 61000-6-2 and IEC 61000-6-4
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 5 Megapixel CMOS monochrome sensor with 2464 x 2048 resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED and laser classes compliant with international safety standards
- Multiple industrial communication interfaces including Ethernet, PROFINET, EtherNet/IP, CAN, Serial, and USB
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- High scanning frequency of 30 Hz with code resolution ≥ 0.1 mm
- Supports a wide range of 1D, 2D, and stacked barcode types
- Advanced network management and configurable digital I/O
- Web server operator interface and SOPASair configuration software
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area industrial code reading and inspection
- Automated manufacturing and logistics systems
- Barcode and 2D code scanning in production lines
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Compliant with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MCICXAF2SXXXX sensor is available for immediate purchase, ideal for industrial indoor barcode and code reading applications.
