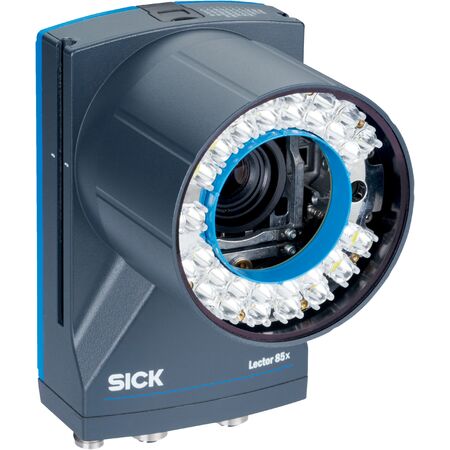

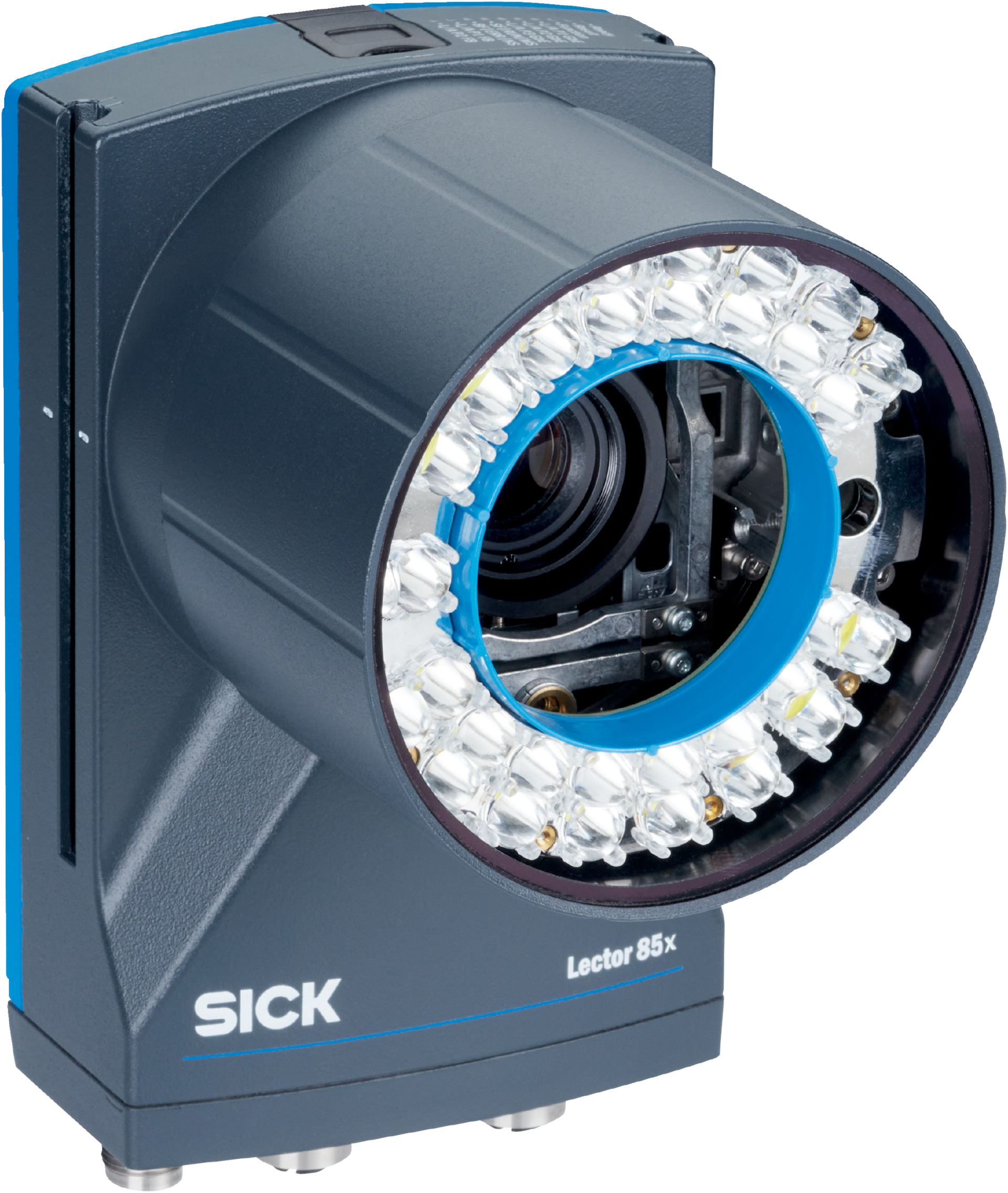

SICK Industrial Barcode Scanner | 5MP CMOS Sensor | IP65 Rated | Integrated Red LED | by SICK
The SICK Industrial Barcode Scanner features a 5MP CMOS sensor and integrated red LED illumination, making it perfect for indoor barcode scanning applications. With a working range of 500 mm to 2400 mm and support for various barcode types, this scanner is designed for reliability and efficiency in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 5 Megapixels (2464 x 2048 px)
- Illumination: Integrated red LED, 32 LEDs, 31° aperture angle
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 30 Hz
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female X-coded)
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W, Max current 2 A
- Housing: Aluminum die cast, anthracite gray
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010 compliant
- Supported codes: 1D, 2D, Stacked including Code 128, GS1-128, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet (Gigabit), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated, configurable digital I/O
- Operator interface: Web server, SOPASair software
- Memory: Micro SD card slot for cloning and data storage
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2-6, -27, -64
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: ≤ 90% non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 5 Megapixel sensor resolution (2464 px x 2048 px)
- Integrated red LED illumination with 32 LEDs
- Aperture angle of 31° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Green and red visible LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 30 Hz at 5 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 2400 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC ± 20%
- Power consumption typically 27 W, max current 2 A
- Aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure
- Electrical safety compliant with EN 61010 standards
- Supports 1D, 2D, and stacked barcode types
- Ethernet, CAN, Serial, USB interfaces with various data rates
- Configurable digital inputs and outputs
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- EMC compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistant per EN 60068 standards
- Operating temperature 0°C to +50°C, storage -20°C to +70°C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Compliant with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8505R-1MEMEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
