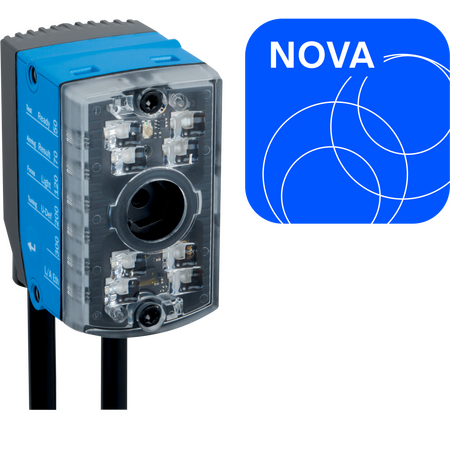

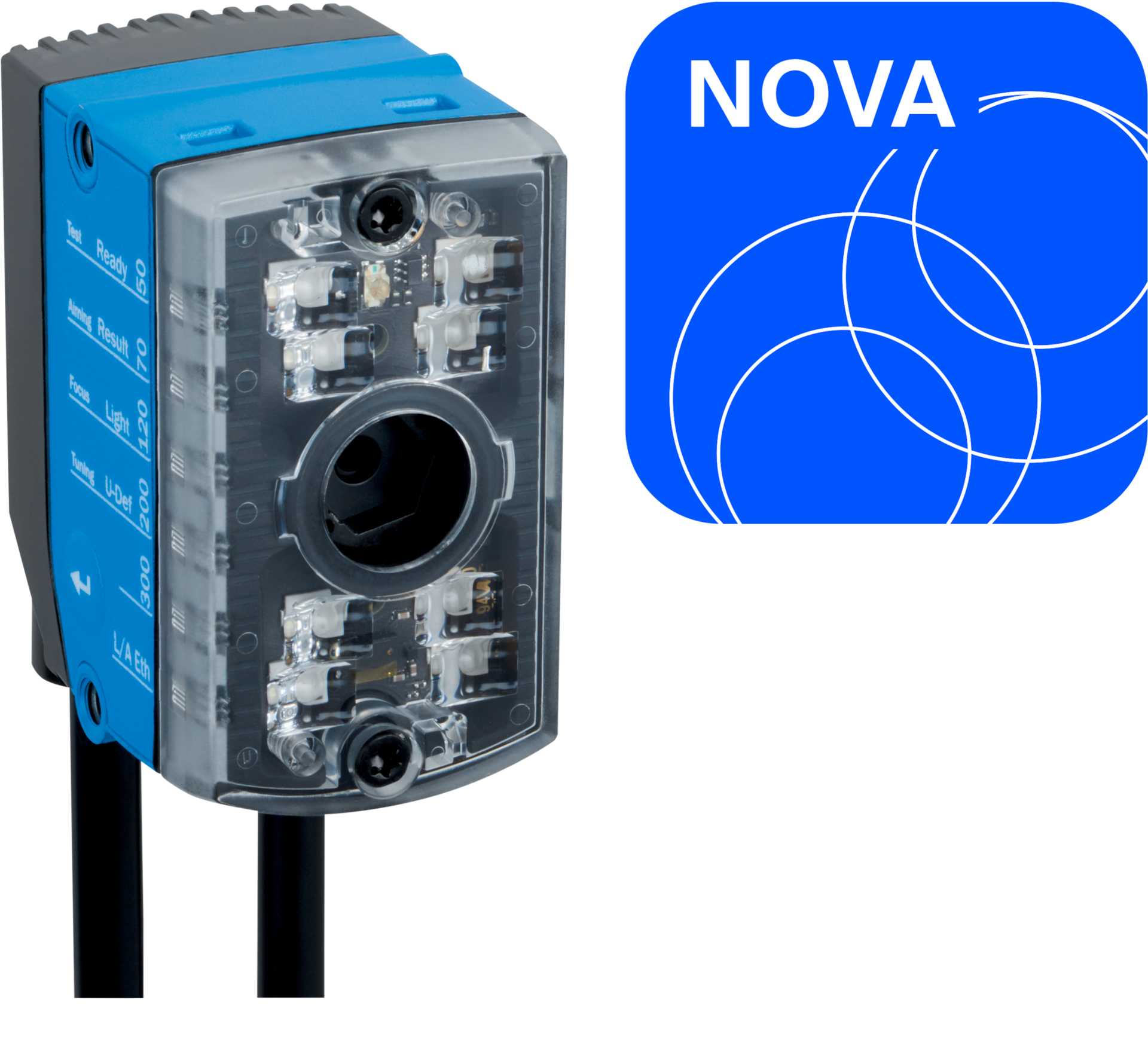

SICK INSPECTOR61 2D Snapshot Sensor | 1280x960 Resolution | 40Hz Frame Rate | IP54 Rated | by SICK
The SICK INSPECTOR61 2D Snapshot Sensor features advanced 2D snapshot technology with a 1280 px x 960 px resolution and a 40 Hz scan rate, making it ideal for quality inspection in manufacturing. With integrated white LED illumination and multiple communication interfaces, this sensor is perfect for dimension measurement, pattern recognition, and OCR identification, ensuring high performance in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: SICK INSPECTOR61 2D Snapshot Sensor, V2D611P-CMWBI4 Vision Sensor, SICK 2D Code Reader, SICK Quality Inspection Sensor
Technical Specifications
- Sensor resolution: 1280 px x 960 px (1.2 MP)
- Scan/frame rate: 40 Hz
- Supply voltage: 12 V DC to 24 V DC ±15%
- Power consumption: Typically 3.5 W
- Enclosure rating: IP54 (EN 60529)
- Protection class: III
- Connection types: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector (Ethernet)
- Data transmission rates: 10/100 MBit/s Ethernet, 300 Baud to 115.2 kBaud serial
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- MTBF: 75,000 hours
- Optical focus: Adjustable manual
- Illumination color: White LED, 4000 K ± 1000 K
- Laser class: 1 (IEC 60825-1:2014)
- LED class: Risk group 1 (IEC 62471)
- Dimensions (H x L x W): 29.6mm x 50mm x 40.3mm
- Weight: 0.165 kg
Key Features
- 2D snapshot technology with CMOS color image sensor
- Programmable and configurable with Nova Inspector software
- Integrated white LED illumination (4000 K ± 1000 K)
- Adjustable manual optical focus
- Global-Shutter shutter technology
- Working range 50 mm to 300 mm with internal illumination
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP, and RS-232
- IP54 rated zinc diecast housing with PMMA window
- LED feedback spot and alignment aids
- Complies with laser class 1 and LED risk group 1 safety standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial vision systems and electrical safety standards.
Applications
- Quality inspection in manufacturing
- Dimension, contour, and volume measurement
- 2D code and OCR identification
- Pattern recognition and sorting
- 2D position determination
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Integrated LED illumination reduces energy consumption compared to traditional lighting
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK V2D611P-CMWBI4 INSPECTOR61 2D Snapshot Sensor is available for immediate purchase, ideal for industrial quality inspection and automation applications.
