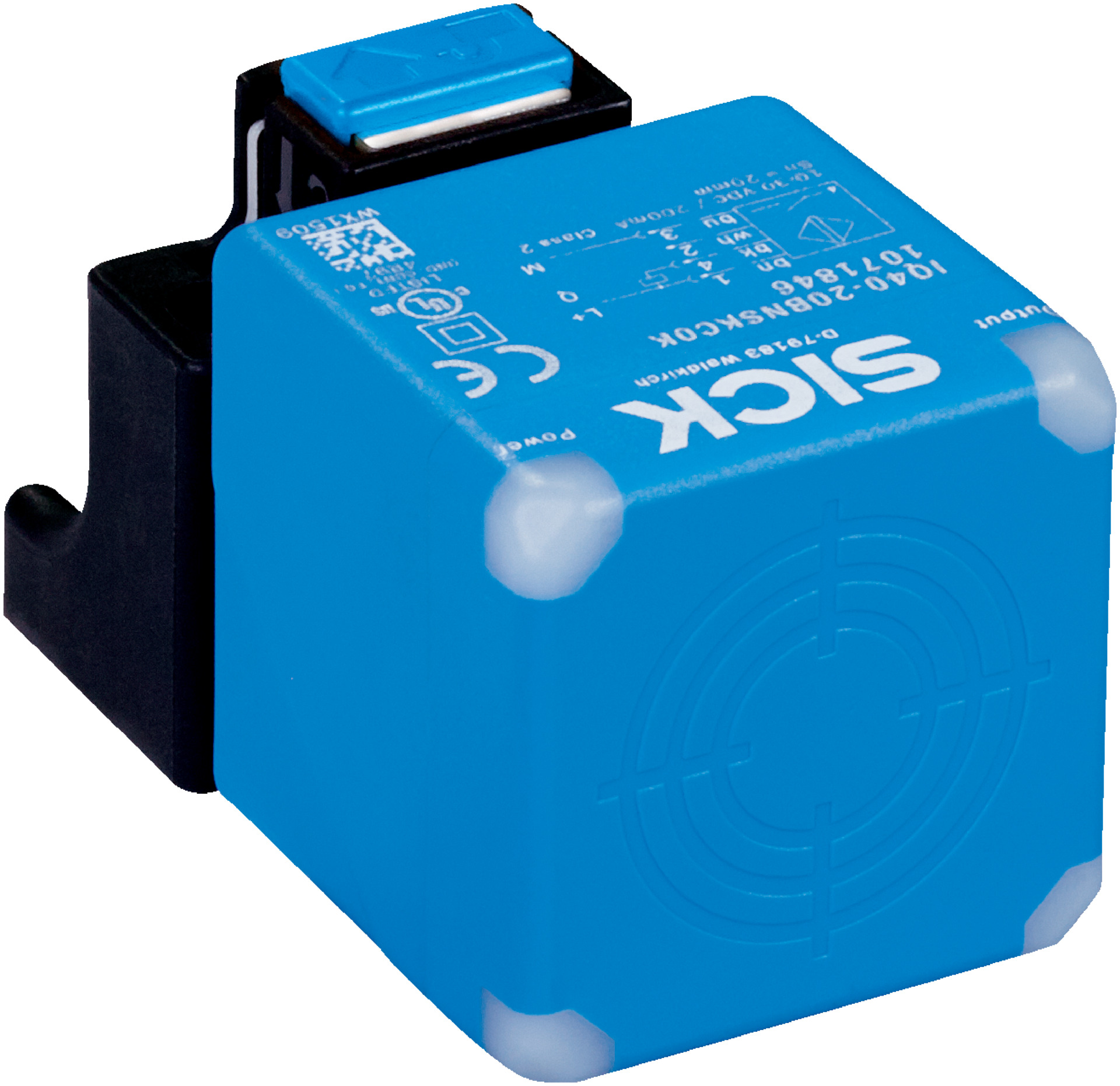

SICK IQ40 PNP Proximity Sensor | Short-Body Design | IP67/IP68/IP69K Rated | by SICK
The SICK IQ40 PNP Proximity Sensor is designed for reliable object detection in industrial automation. With a short-body housing and a sensing range of 40 mm, it excels in harsh environments thanks to its IP67, IP68, and IP69K protection ratings. Ideal for applications requiring dependable sensing under difficult conditions, this sensor features a PNP complementary output and is built to withstand shock and vibration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10 V pp
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 3% to 15%
- Reproducibility: ≤ 6%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: 12.5 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +85 °C
- Ambient storage temperature: –40 °C to +85 °C
- Housing material: Plastic PA 66
- Sensing face material: Plastic PA 66
- Tightening torque max: 1.8 Nm
- Protection class: II
- Switching output: PNP complementary
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 40mm x 66mm x 40mm
- Weight: 0.1 kg
Key Features
- Short-body housing design
- Non-flush installation type
- Sensing range of 40 mm with safe sensing range of 32.4 mm
- Switching frequency of 100 Hz
- PNP complementary switching output
- Male connector M12, 4-pin connection
- Electrical wiring: DC 4-wire
- High protection rating: IP67, IP68, IP69K
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature from –25 °C to +85 °C
- Short-circuit and power-up pulse protection included
- Housing and sensing face made of durable Plastic PA 66
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Harsh environment sensing with IP67, IP68, IP69K protection
- Difficult application conditions requiring reliable sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IQ40-40NPPKC0K sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
