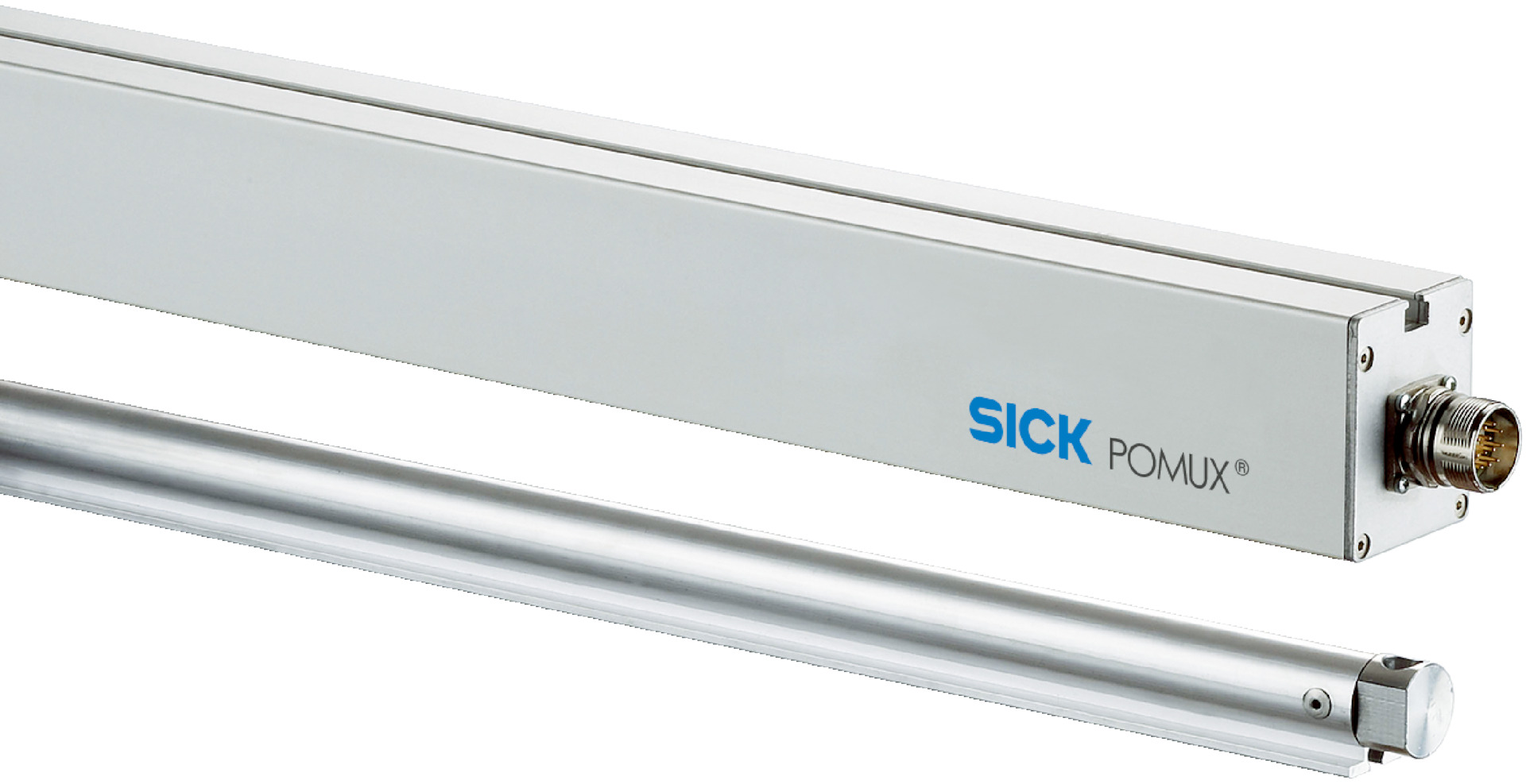

SICK KHK53 Linear Position Sensor | 0 to 38 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The SICK KHK53 Linear Position Sensor offers a measuring range of 0 to 38 meters with an impressive 0.1 mm resolution, making it ideal for high-precision distance and position sensing in industrial automation. With a robust IP66 rated enclosure, it withstands harsh environments while providing reliable communication via SSI and RS-422 interfaces. Perfect for manufacturing processes, this sensor ensures high repeatability and fast traversing speeds.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK KHK53 Linear Position Sensor | 0 to 38 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030051
Alternatively Known As: SICK KHK53 Linear Position Sensor, SICK KHK53 Measuring Sensor, Industrial Distance Sensor
Technical Specifications
- Measuring range: 0 m to 38 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: SSI, 24 Bit gray code
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 10 m length
- Position tolerance: ±10 mm
- Read head material: AlMgSiPbF28
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Enclosure rating: IP66
- Dimensions (H x L x W): 100mm x 300mm x 100mm
- Weight: 2.4 kg
Key Features
- Measuring range up to 38 meters with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable communication via SSI and RS-422 interfaces
- Mean time to dangerous failure (MTTFD) of 45 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation and safety systems
- Position measurement in manufacturing processes
- High-precision distance and position sensing
Standards & Compliance
- Complies with AS/NZS 61000 series for EMC standards
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

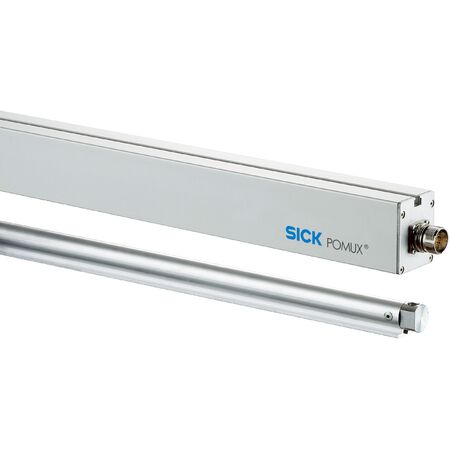

The SICK KHK53-AXU00038 sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
