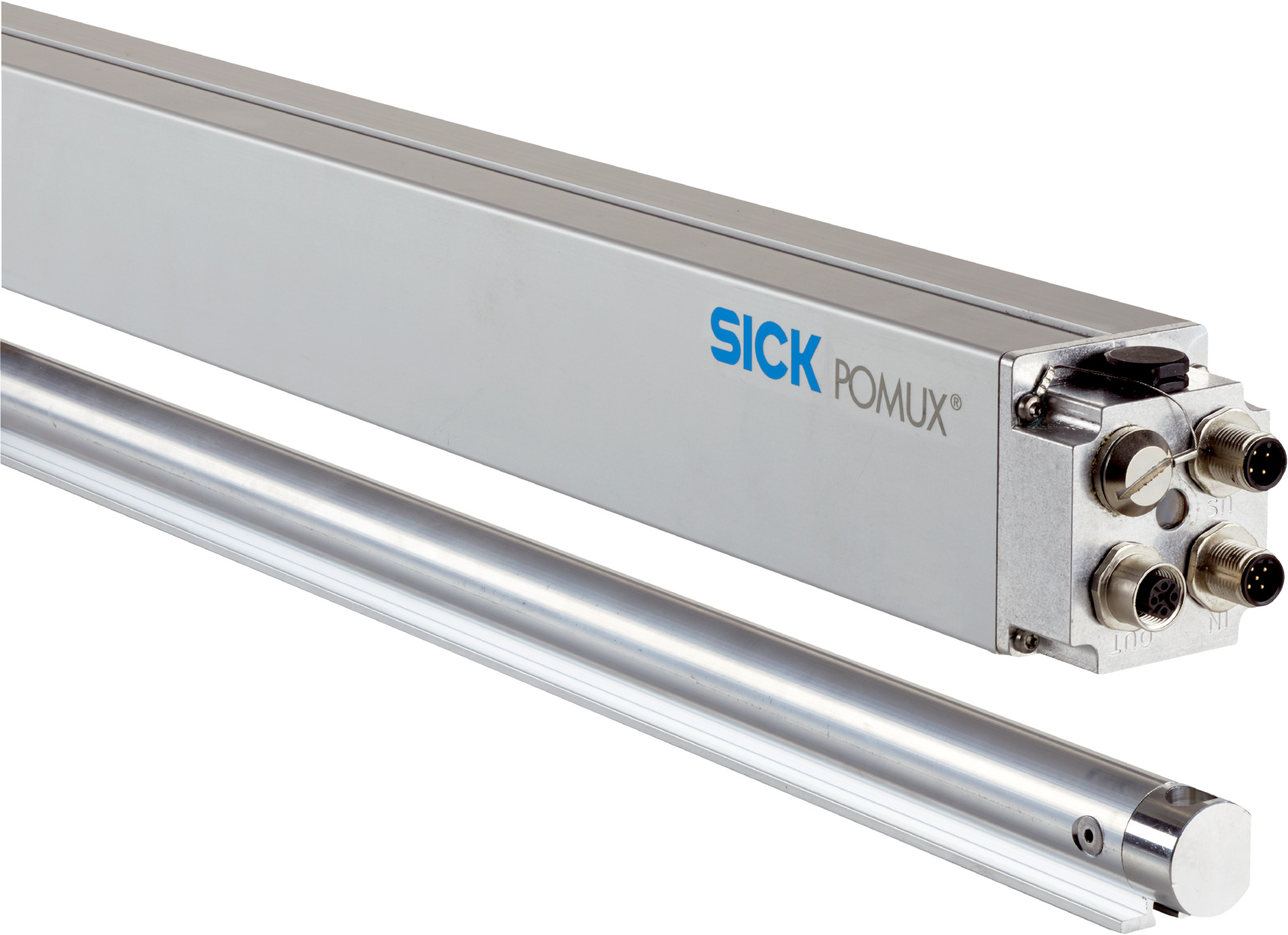

SICK KHK53 Linear Position Sensor | 0 to 38 m Measuring Range | 0.1 mm Resolution | IP67 Rated | by SICK
The SICK KHK53 Linear Position Sensor offers a measuring range of 0 to 38 meters with an impressive 0.1 mm resolution, making it ideal for precise position measurement in industrial automation. With a robust IP67 enclosure, it withstands harsh environments while providing high repeatability and accuracy. Perfect for manufacturing processes and control systems, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK KHK53 Linear Position Sensor | 0 to 38 m Measuring Range | 0.1 mm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1036163
Alternatively Known As: SICK KHK53 Linear Position Sensor, PROFIBUS Distance Sensor, Industrial Measuring Sensor SICK
Technical Specifications
- Measuring range: 0 m to 38 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: PROFIBUS DP
- Bus interface: RS-485 electrically isolated by optocoupler
- Position forming time: +1.1 ms
- Address setting: 0 to 127 via Hex switches or protocol
- Data protocol: PROFIBUS DP basic functions (DP-V0)
- Data transmission rate: 9.6 kBaud to 12 MBaud automatic detection
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Power consumption: 2.5 W
- Connection type: Male connector, 3x, M12
- Weight: 2.4 kg
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Resistance to shocks: 30 g, 10 ms
- Resistance to vibration: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 50mm x 200mm x 50mm
- Weight: 2.4 kg
Key Features
- Measuring range up to 38 meters with 0.1 mm resolution
- High repeatability of 0.3 mm and measurement accuracy ±1000 + ME (Tu-25 °C) Tk µm
- Robust IP67 rated enclosure for harsh environments
- Communication via PROFIBUS DP with RS-485 bus interface
- Fast position forming time of +1.1 ms
- Electronics with low power consumption of 2.5 W and supply voltage 10 V to 32 V
- Durable read head material AlMgSiPbF28
- Resistance to shocks up to 30 g and vibration up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFIBUS DP systems and industrial sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation and safety systems
- Position measurement in manufacturing processes
- Integration in control systems requiring precise distance measurement
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

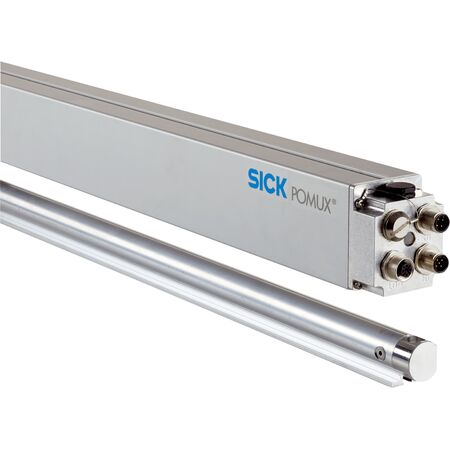

The SICK KHK53-PXF00038 sensor is available for immediate purchase, ideal for industrial automation and safety measurement applications.
