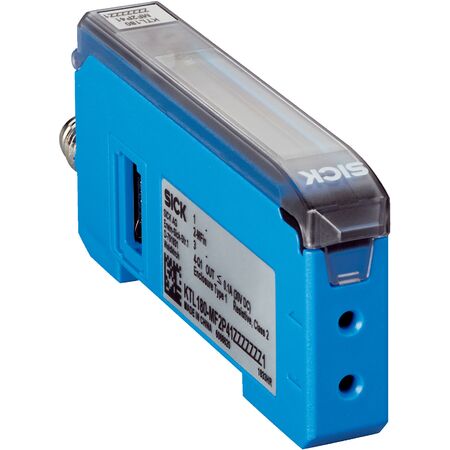

SICK KTL180 Expansion Module | LED Status Display | Proximity Sensing up to 30mm | Fiber-Optic Applications | by SICK
The SICK KTL180 Expansion Module is designed for industrial automation systems, featuring an LED status display and a sensing range of up to 30 mm. Ideal for fiber-optic sensing applications, this module offers multiple teach-in modes and adjustable delay times, ensuring precise proximity sensing and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 33.2mm x 71.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- LED status display with dual 4-character digital displays showing set and actual values simultaneously
- Sensing range up to 30 mm with proximity system
- Housing designed for fiber-optic applications
- White LED light source with approx. 65° angle of dispersion
- Multiple teach-in modes including 1-point, 2-point, and dynamic
- Adjustable delay time and multi-function input
- Expansion unit for BUS mode with no L+/M
- Supply voltage from 12 V DC to 24 V DC with ripple ≤ 10%
- Switching frequency of 31.2 kHz and response time of 16 µs
- NPN switching output with light/dark switching mode
- Protection class III with reverse polarity, short-circuit, and overcurrent protection
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and configuration, especially for BUS mode integration.
Applications
- Industrial automation systems requiring expansion units
- Fiber-optic sensing applications
- Systems needing precise proximity sensing up to 30 mm
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable ABS/PC housing material for long product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK KTL180-ME2P41ZZZZZ Expansion Unit is available for immediate purchase, ideal for industrial automation and fiber-optic sensing applications.
