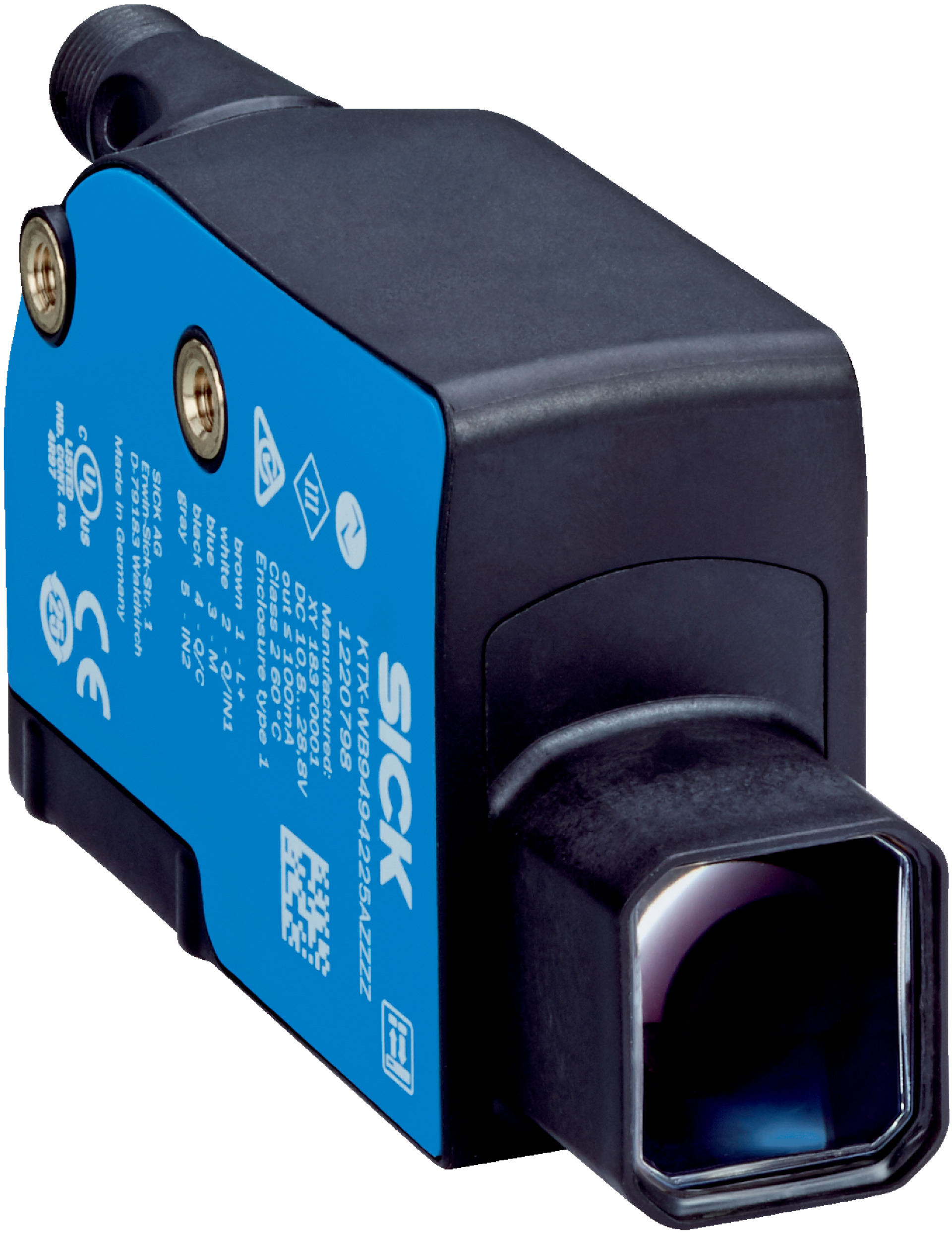

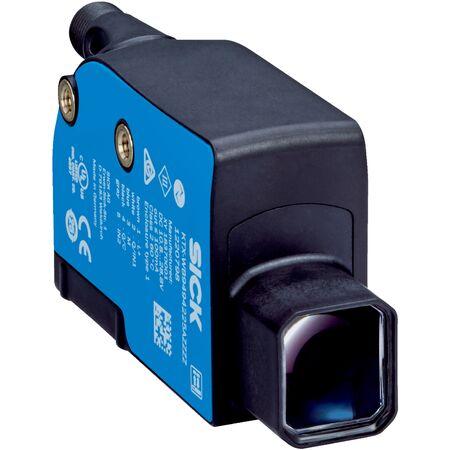

SICK KTX-WB9A94225AZZZZ RGB LED Sensor | 150 mm Sensing Distance | IP67 Rated | by SICK
The SICK KTX-WB9A94225AZZZZ RGB LED sensor offers a long sensing distance of up to 150 mm with ±8 mm tolerance, making it perfect for industrial automation and quality control applications. With a robust IP67 rated housing and multiple teach-in modes, this sensor is designed for reliable performance in harsh environments, ensuring optimal object detection and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 150 mm with ±8 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Switching frequency: 25 kHz
- Response time: 20 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Output type: Push-pull PNP/NPN
- Output current max: 100 mA
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®
- Optics material: Glass
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 78.5mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 150 mm with ±8 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Push-pull PNP/NPN switching output with 100 mA max output current
- IP67 rated housing for robust protection in harsh environments
- Compact housing size of 30 mm x 53 mm x 78.5 mm
- IO-Link communication interface for advanced device integration
- Short device side light emission with a round, large light spot of 12 mm diameter
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link integration.
Applications
- Industrial automation for object detection
- Quality control in manufacturing processes
- Material handling and logistics systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9A94225AZZZZ sensor is available for immediate purchase, ideal for industrial automation and quality control applications.
