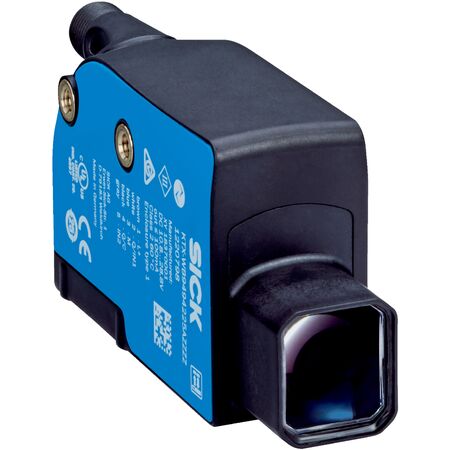

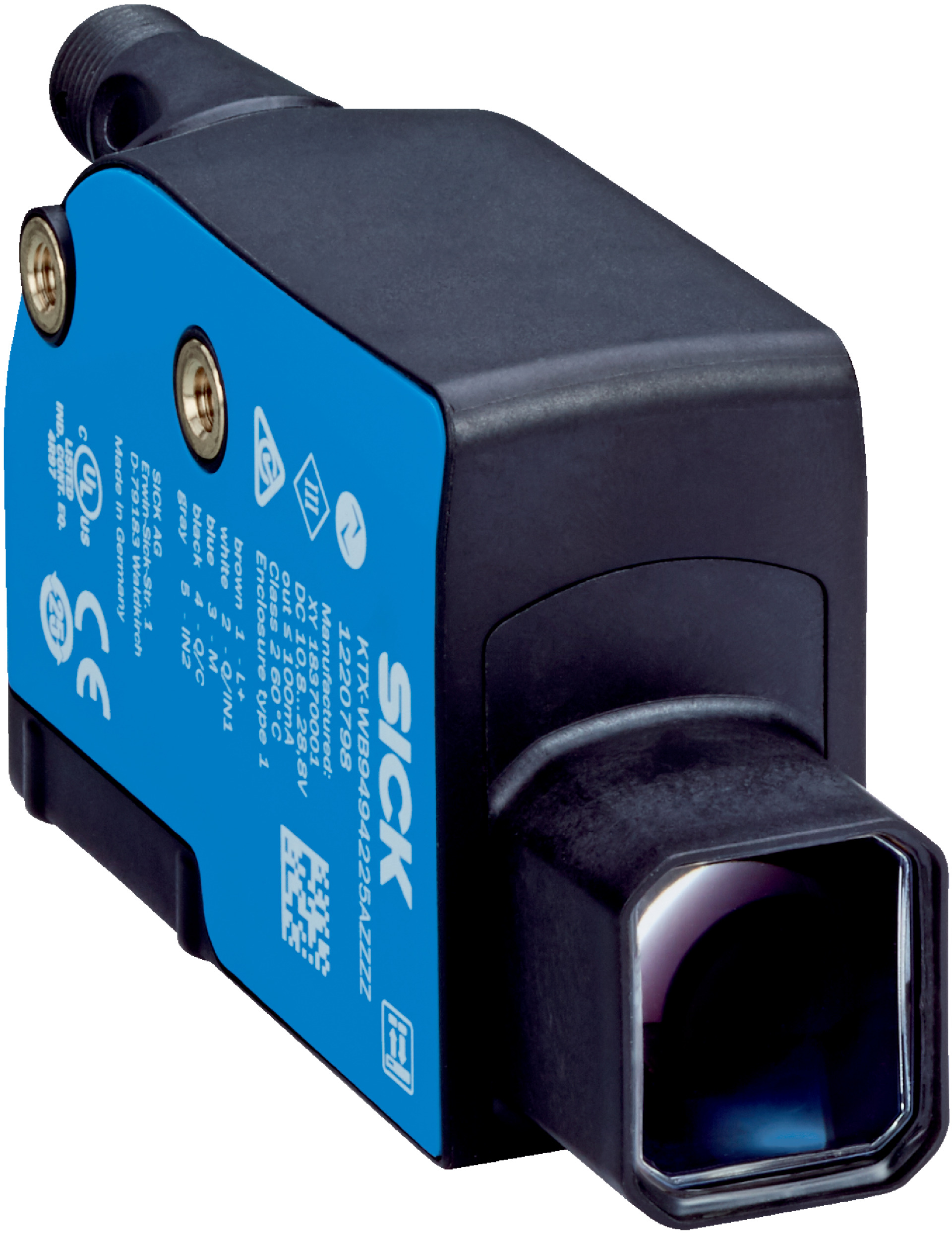

SICK KTX-WN9234224IZZZZ Sensor | Long Sensing Distance | RGB LED Light Source | IP67 Rated | by SICK
The SICK KTX-WN9234224IZZZZ sensor features a long sensing distance of up to 40 mm with ±3 mm tolerance, making it ideal for industrial automation and object detection applications. With an RGB LED light source and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, providing robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: 0.9 mm x 3.9 mm
- Output: Analog current output 0 mA to 20 mA and digital NPN switching output
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Male M12, 4-pin connector
- Housing material: VISTAL® with glass optics
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with horizontal light spot direction
- 1-point and 2-point teach-in modes with dynamic and auto modes
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Standard sensing applications requiring long sensing distance
- Environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WN9234224IZZZZ sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring reliable long-distance detection.
