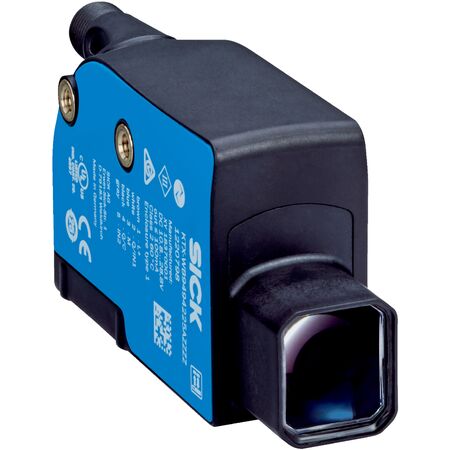

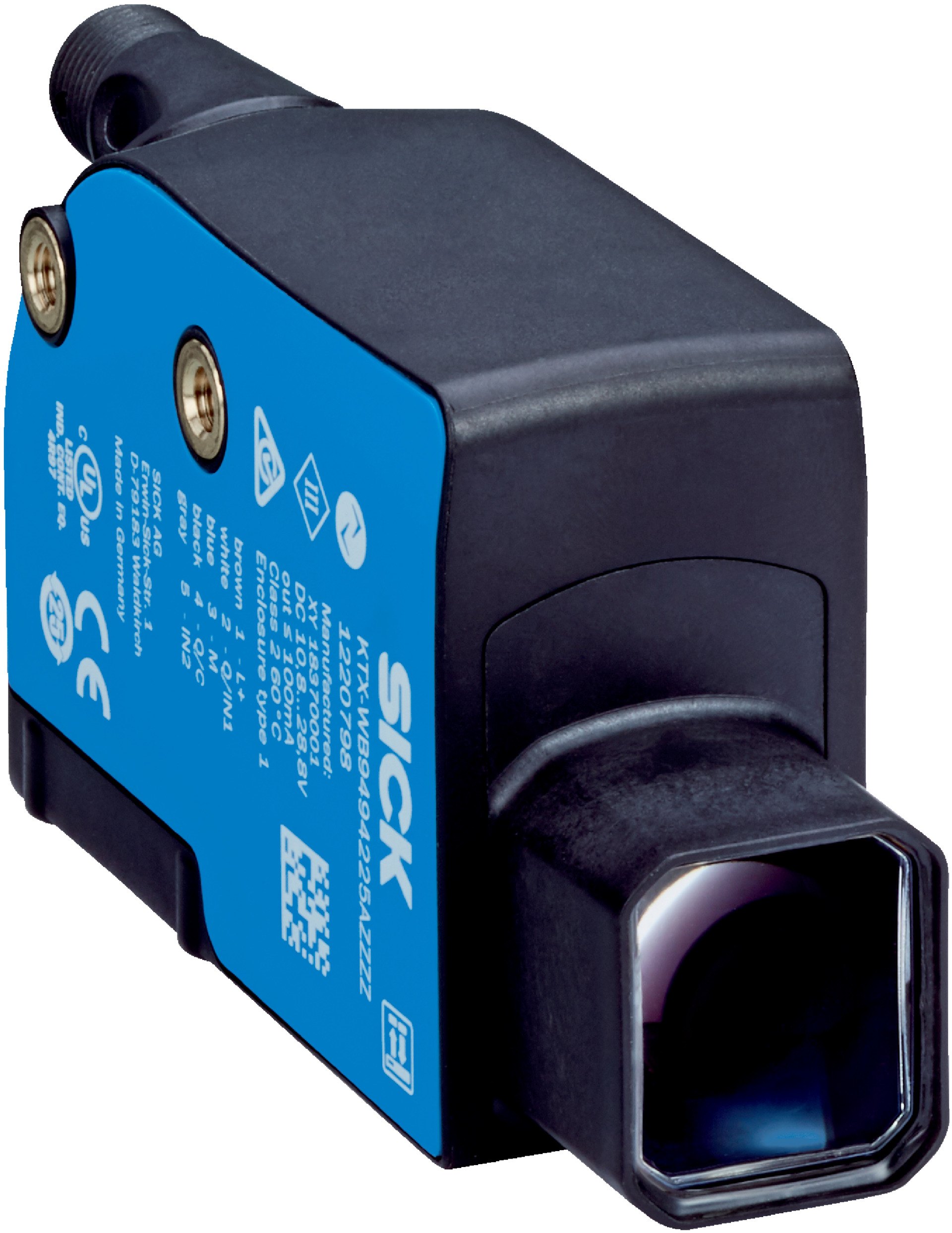

SICK KTX-WP9134224IZZZZ Sensor | Long Sensing Distance | RGB LED Light Source | IP67 Rated | by SICK
The SICK KTX-WP9134224IZZZZ sensor features a long sensing distance of up to 40 mm with ±3 mm tolerance, making it ideal for industrial automation and object detection. With an RGB LED light source and IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for quality control and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 40 mm with ±3 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light spot size: 3.9 mm x 0.9 mm
- Output: Analog current output 0-20 mA and digital PNP switching output
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 50 kHz
- Response time: 10 µs
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Male M12, 4-pin connector
- Housing material: VISTAL®
- Optics material: Glass
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock resistance: 30 g / 11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- Long sensing distance up to 40 mm with ±3 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Short device side light emission with vertical light spot direction
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- Adjustable delay time and light/dark switching output function
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor device standards to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Quality control and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 100 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTX-WP9134224IZZZZ sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
