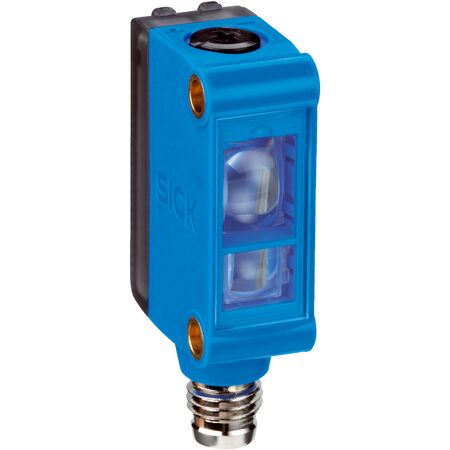

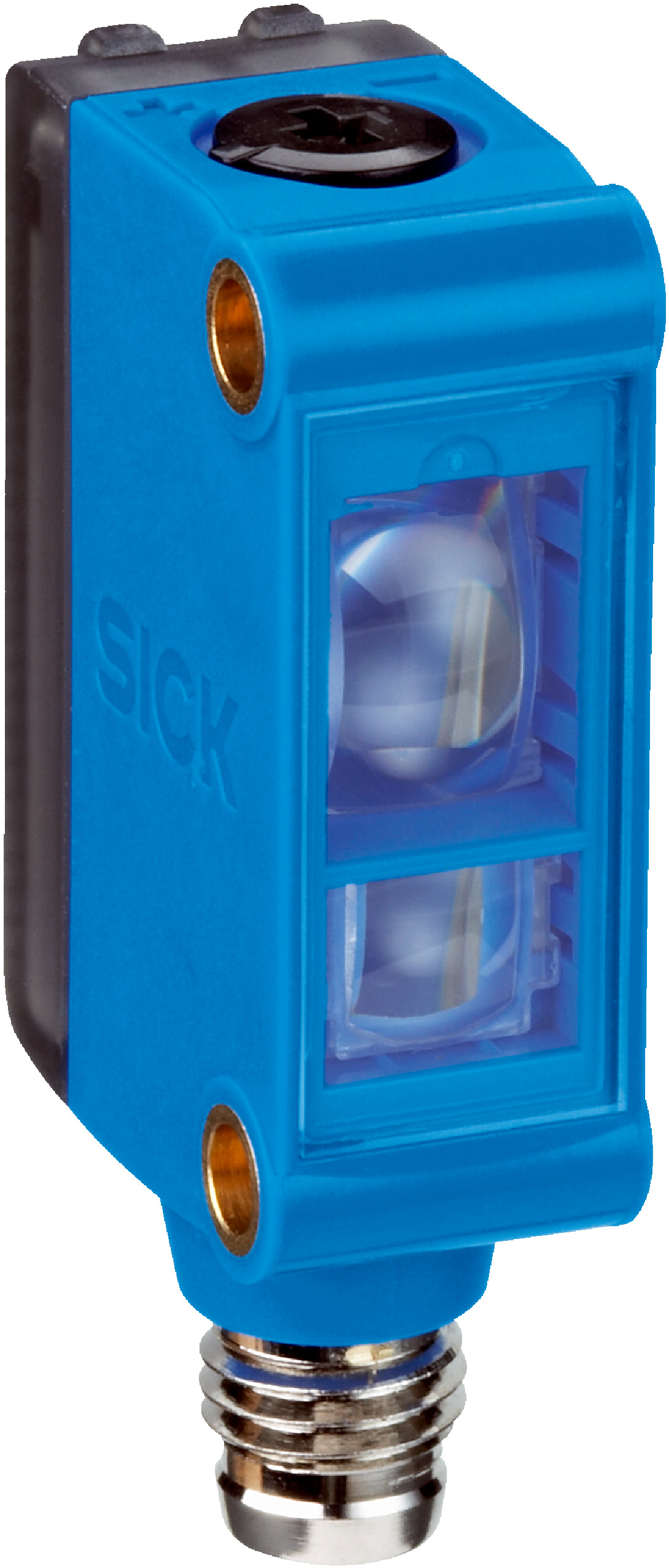

SICK LED Proximity Sensor KTM-MB31111P | IP67 Rated | PNP/NPN Output | 10 kHz Switching Frequency | by SICK
The SICK LED Proximity Sensor KTM-MB31111P is designed for industrial automation, featuring a compact housing and a sensing distance of up to 12.5 mm. With a fast switching frequency of 10 kHz and both PNP and NPN output options, this sensor is perfect for position sensing and machine safety applications. Its IP67 rating ensures durability in harsh environments, making it a reliable choice for manufacturing lines and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: less than 50 mA
- Switching frequency: 10 kHz
- Response time: 50 microseconds
- Sensing distance: up to 12.5 mm with ±3 mm tolerance
- Light source: White LED
- Switching output: PNP and NPN
- Output current max: 50 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -10°C to +55°C
- Storage temperature: -20°C to +75°C
- Housing material: ABS
- Optics material: PMMA
- Connection: Male M8, 4-pin connector
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- LED white light source with round light spot of 2 mm diameter
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- Switching frequency of 10 kHz and response time of 50 µs
- PNP and NPN switching output options with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Green and yellow LED indicators for power and output status
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption under 50 mA reduces energy usage
- Durable ABS housing and IP67 rating ensure long product life and reduced waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-MB31111P sensor is available for immediate purchase, ideal for industrial automation and control applications.
