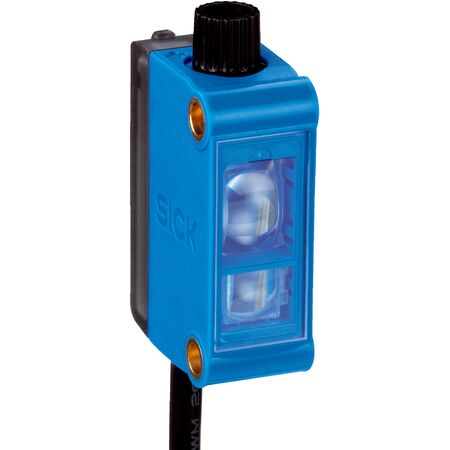

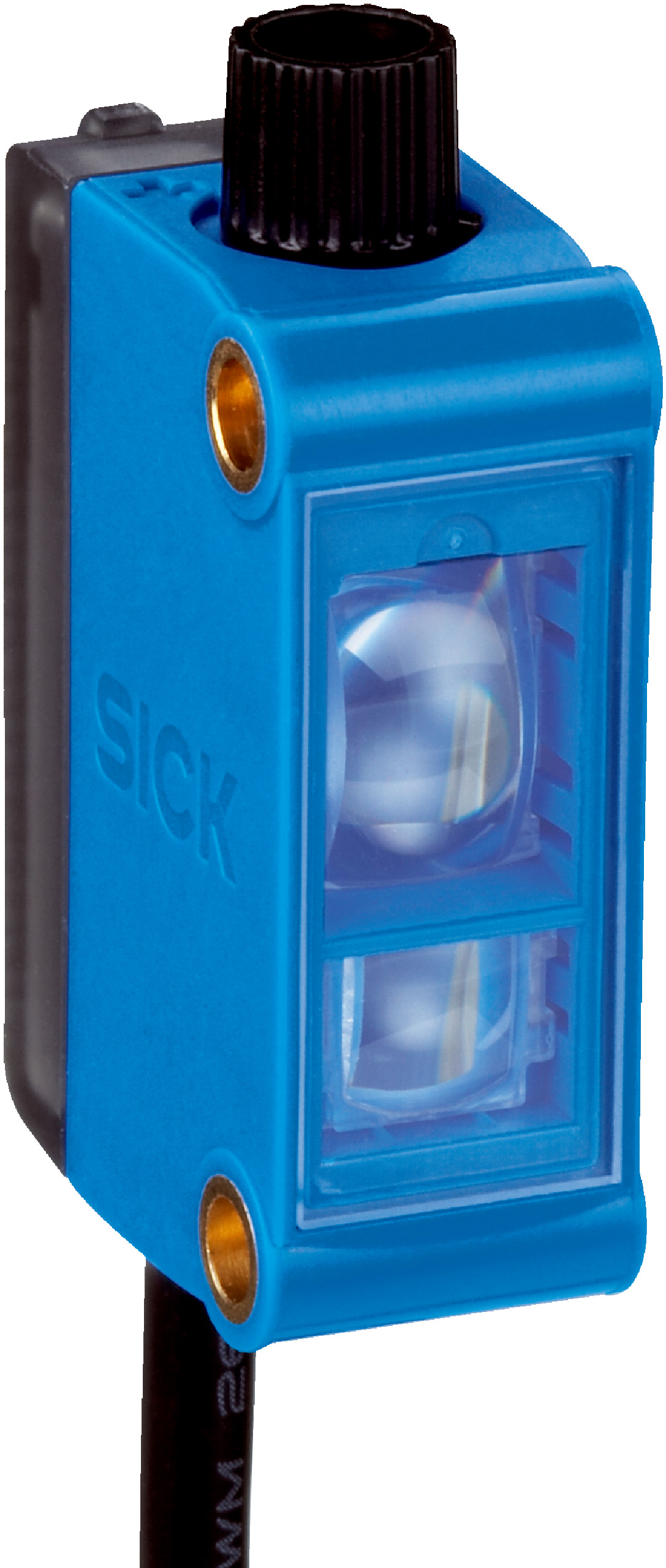

SICK LED Proximity Sensor KTM-MB31194P | IP67 Rated | Small Housing Design | PNP/NPN Switching | by SICK
The SICK LED Proximity Sensor KTM-MB31194P is designed for industrial automation, featuring a small housing and IP67 rating for dust and water resistance. With a sensing distance of up to 12.5 mm and a fast response time of 50 µs, it's perfect for applications in manufacturing process control, packaging machinery, and robotics. Built for reliability, this sensor ensures precise object detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 10 kHz
- Response time: 50 µs
- Jitter: 25 µs
- Switching output: PNP and NPN
- Output current max: 50 mA
- Time delay: None
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection: 4-wire cable, 2 m length
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with round light spot of 2 mm diameter
- Light/dark switching mode with PNP and NPN switching outputs
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Cable open end 4-wire connection, 2 meters long
- Green LED indicator for power on and yellow LED for switching output status
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery sensing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KTM-MB31194P sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise object detection.
