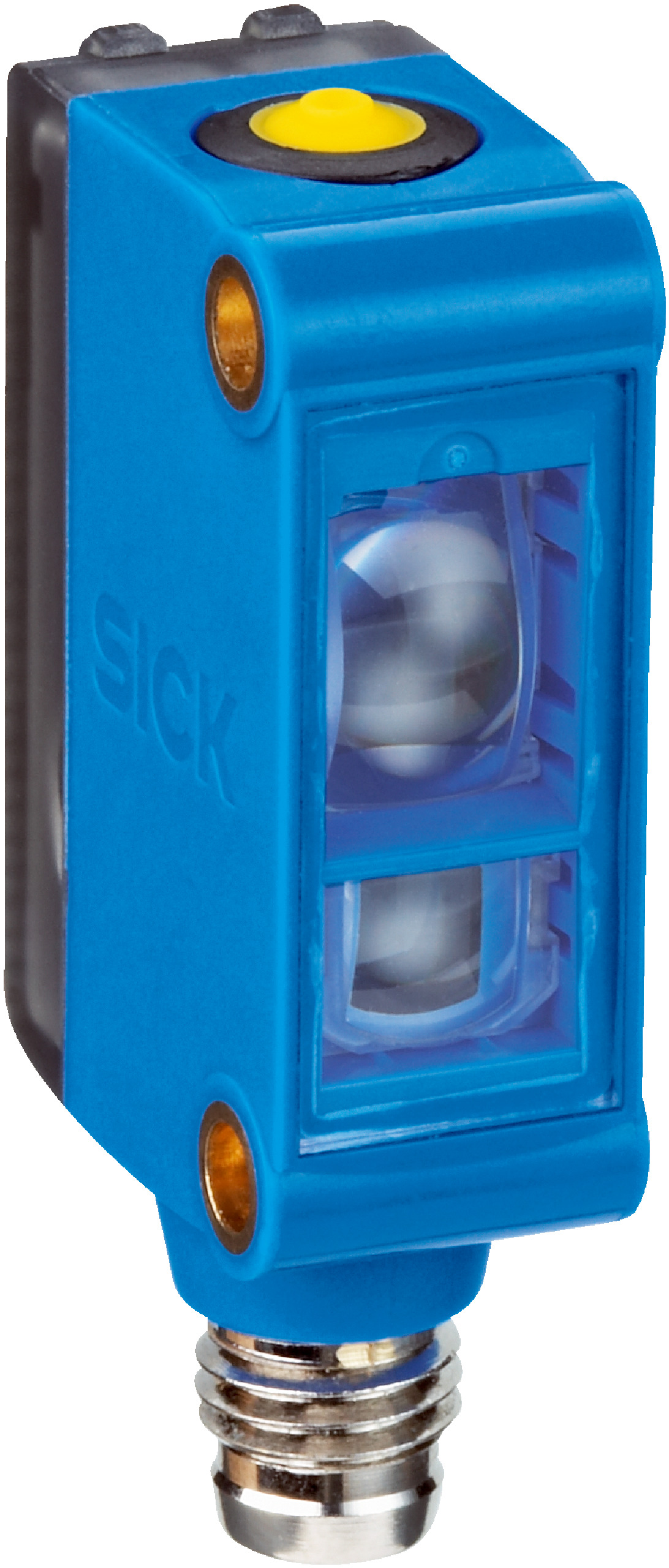

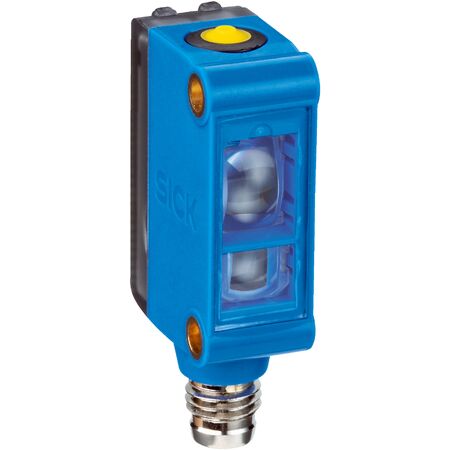

SICK LED Proximity Sensor KTM-MP11181P | IP67 Rated | 15 kHz Switching Frequency | Small Housing Design | by SICK
The SICK LED Proximity Sensor KTM-MP11181P is designed for industrial automation, featuring a high switching frequency of 15 kHz and a compact housing for easy installation. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and position sensing in manufacturing lines, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male connector M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with vertical light spot direction
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- PNP switching output with light/dark switching mode
- High switching frequency of 15 kHz and fast response time of 32 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Quality control systems
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing reduces material waste and extends product life
- IP67 rating ensures long-term reliability in harsh environments, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-MP11181P sensor is available for immediate purchase, ideal for industrial automation and sensing applications.
