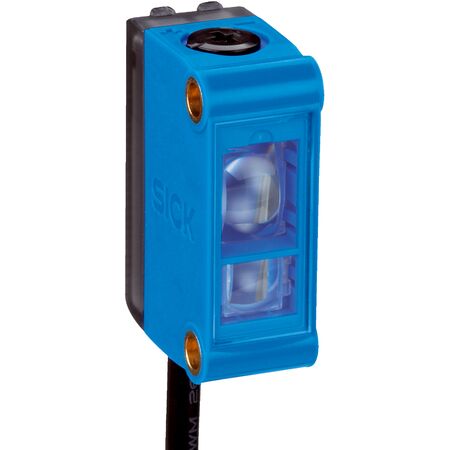

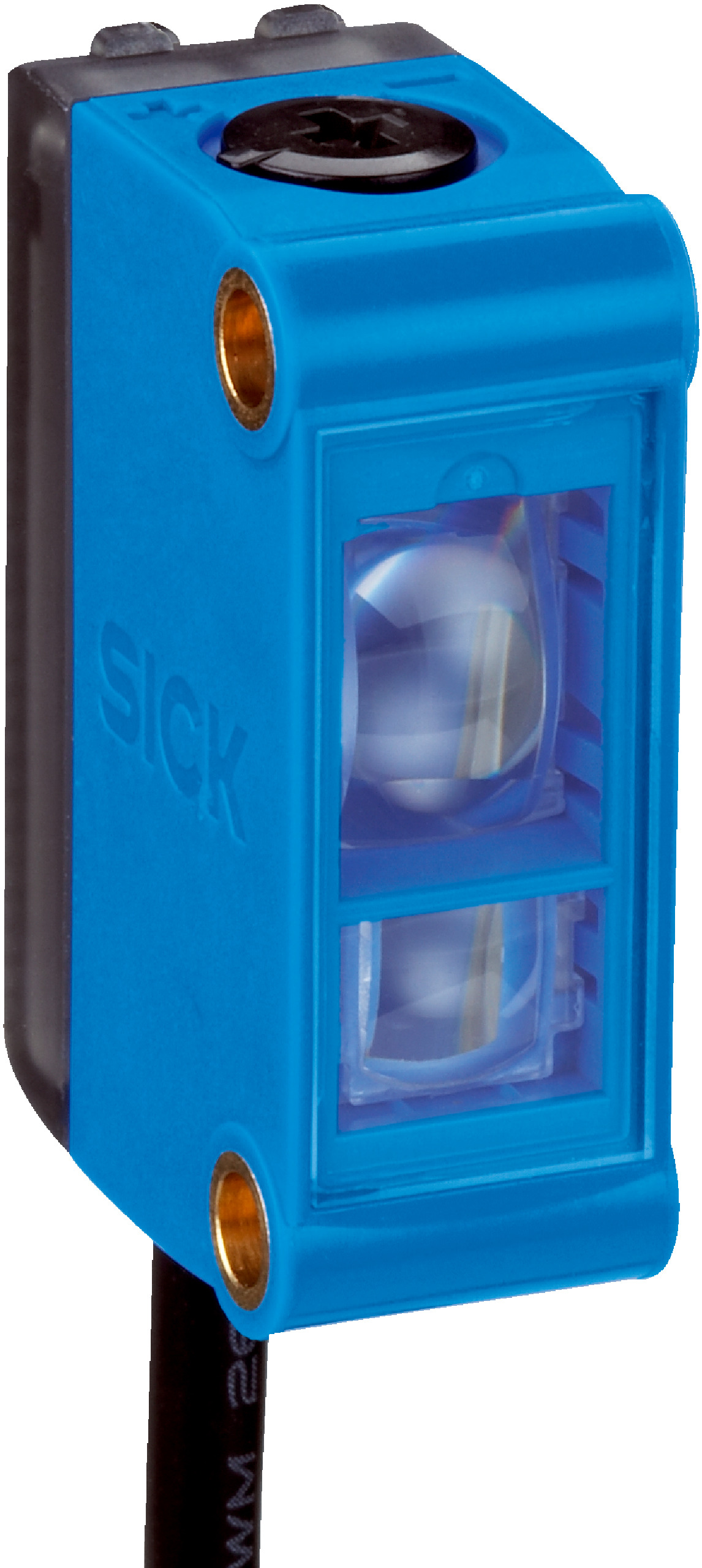

SICK LED Proximity Sensor | Small Housing Design | IP67 Rated | 10 kHz Switching Frequency | by SICK
The SICK LED Proximity Sensor is designed for industrial automation, featuring a compact housing and an IP67 rating for dust and water protection. With a sensing distance of up to 12.5 mm and a rapid response time of 50 µs, it's perfect for manufacturing process control and robotics applications. Built for reliability, this sensor ensures optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching output: PNP and NPN options
- Switching mode: Light/dark switching
- Output current max: 50 mA
- Response time: 50 µs
- Switching frequency: 10 kHz
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Housing material: ABS
- Optics material: PMMA
- Connection type: Cable with M12 male connector, 4-pin, 0.2 m
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with round light spot of 2 mm diameter
- Potentiometer adjustment via screwdriver
- Cable with M12 male 4-pin connector, 0.2 m length
- IP67 rated enclosure for dust and water protection
- LED indicators: green for power on, yellow for switching output status
- Reverse polarity and short-circuit protected output
- Switching frequency of 10 kHz and response time of 50 µs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS and PMMA materials extend product life reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-MB31112P sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
