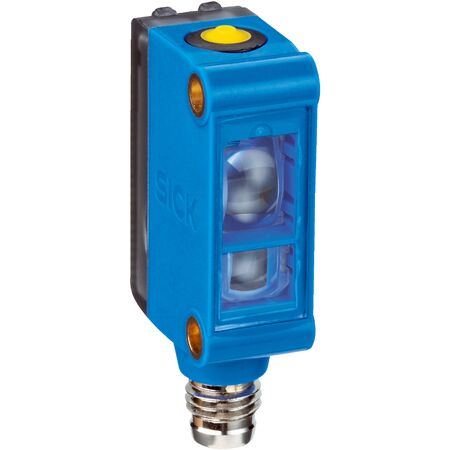

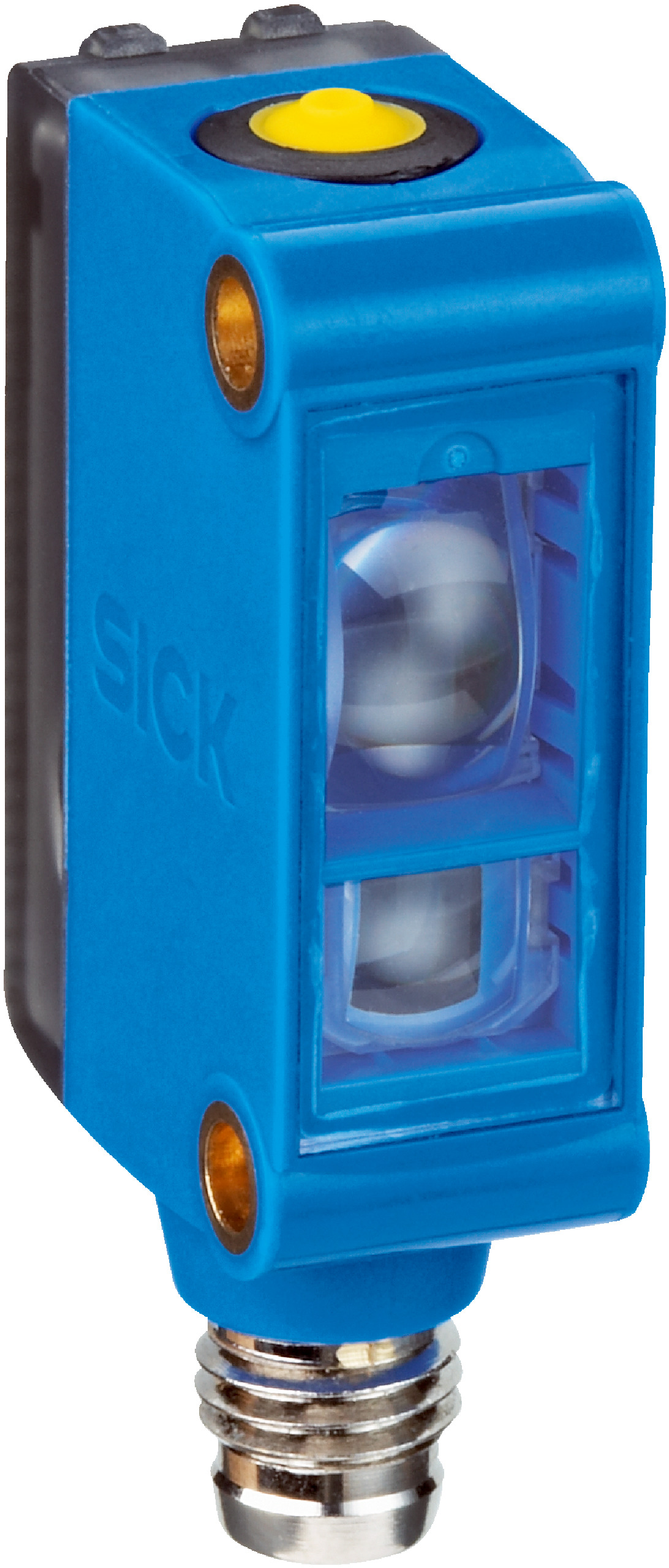

SICK LED Proximity Sensor | Small Housing Design | IP67 Rated | 15 kHz Switching Frequency | by SICK
The SICK LED Proximity Sensor is designed for precision in industrial automation, featuring a small housing design and an impressive sensing distance of up to 12.5 mm. With a high switching frequency of 15 kHz and a fast response time of 32 µs, this sensor is perfect for manufacturing process control and robotics applications. Its IP67 rating ensures durability against dust and water, making it a reliable choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male connector M8, 4-pin
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with round light spot of 2 mm diameter
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- PNP switching output with light/dark switching mode
- High switching frequency of 15 kHz and fast response time of 32 µs
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected output
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly line monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce waste through long service life
- IP67 rating ensures protection against environmental contaminants, reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTM-MP31181P sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
