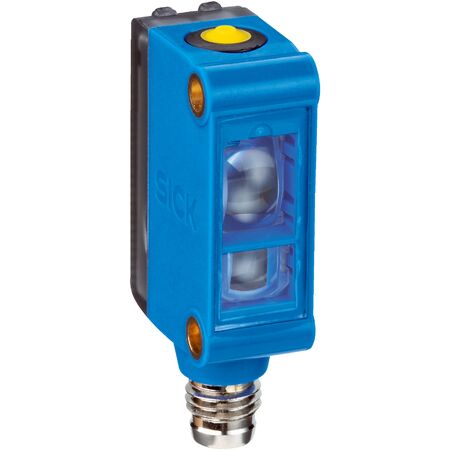

SICK LED Proximity Sensor | Small Housing Design | IP67 Rated | PNP Switching Output | by SICK
The SICK LED Proximity Sensor is designed for industrial automation, featuring a small housing design and an IP67 rating for dust and water resistance. With a sensing distance of up to 12.5 mm and a fast response time of 32 µs, it's perfect for manufacturing process control and robotics applications. Built for reliability, this sensor ensures low power consumption and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Ripple: ≤ 5 V pp
- Current consumption: < 50 mA
- Switching frequency: 15 kHz
- Response time: 32 µs
- Jitter: 15 µs
- Switching output: PNP, light/dark switching
- Output current max: 50 mA
- Retention time (ET): 28 ms, non-volatile memory
- Housing material: ABS
- Optics material: PMMA
- Connection type: Male connector M8, 4-pin
- LED indicators: Green for power on, yellow for output status
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -20 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Small housing design with dimensions 12 mm x 31.5 mm x 21 mm
- Sensing distance up to 12.5 mm with ±3 mm tolerance
- White LED light source with round light spot of 2 mm diameter
- Teach-in button for 2-point teach-in static/dynamic and proximity to mark
- Error teach output via Q output with alternating signal
- PNP switching output with light/dark switching mode
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with less than 50 mA current draw
- Durable ABS housing and PMMA optics reduce material waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTM-MP31181PS01 LED sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
