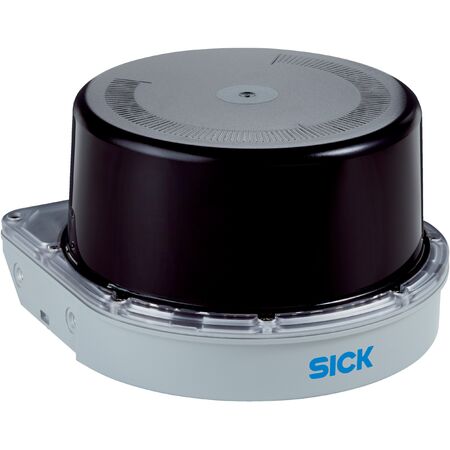

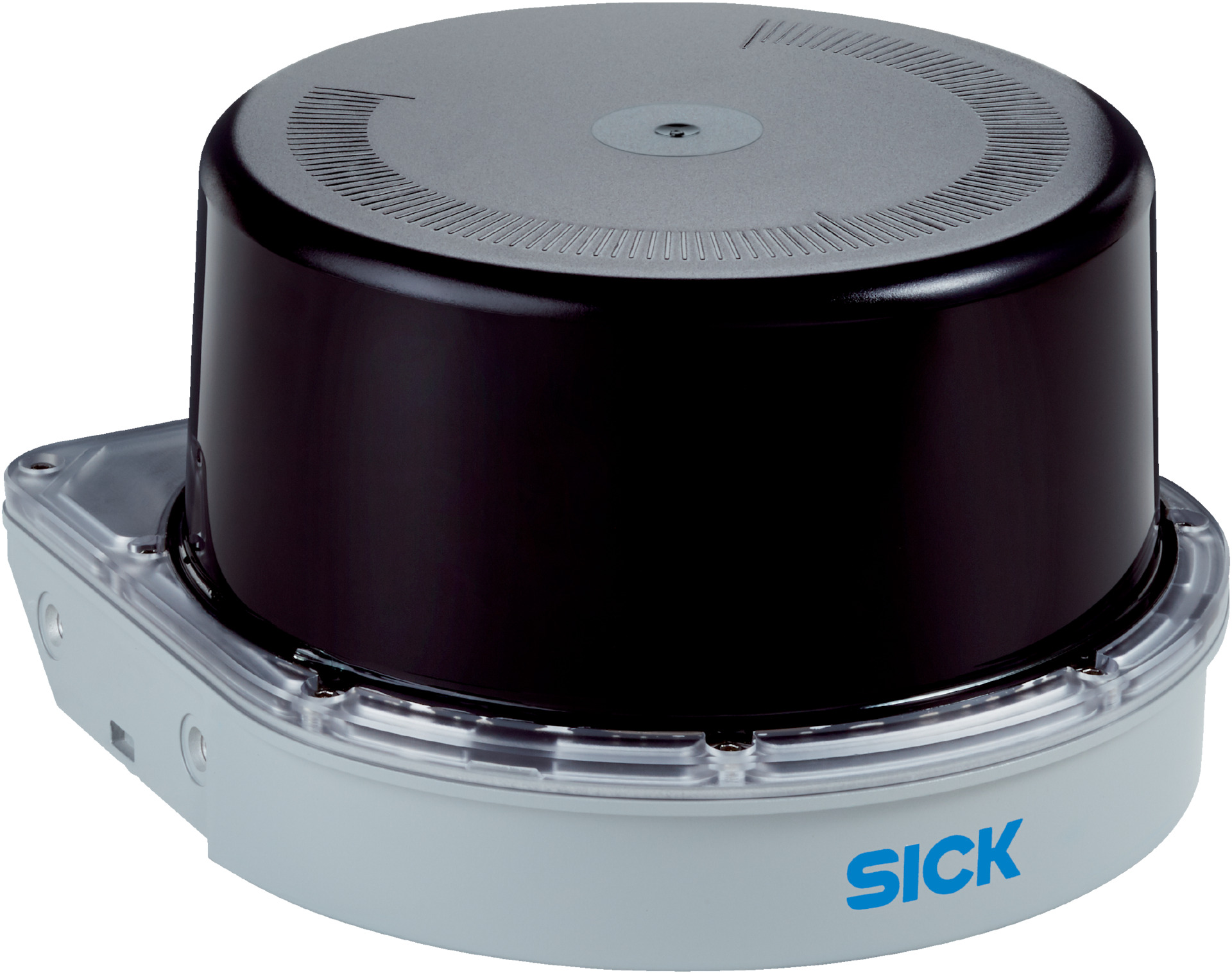

SICK LiDAR Sensor LMS1104C | HDDM+ Measurement | IP65 & IP67 Protection | 0.2m to 64m Range | by SICK
The SICK LiDAR Sensor LMS1104C is designed for precise distance measurement and scanning, featuring HDDM+ technology and a robust IP65/IP67 housing. Ideal for both outdoor and indoor industrial applications, it offers a wide measurement range from 0.2m to 64m, ensuring reliable performance in various environments. With a high scanning frequency and multiple filtering options, this sensor is perfect for automation and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power supply: 10 V DC to 30 V DC
- Power consumption: Typical 18 W, max 42 W, power-up max 35 W for 5 seconds
- Housing material: AlSi12 with polycarbonate optics cover
- Dimensions: 151.9 mm x 150 mm x 92.5 mm
- Weight: 1.2 kg
- MTBF: 50 years
- MTTFD: > 100 years
- Output data: Contamination indication, IMU secondary sensor data
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 7 ms
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Object remission range: 2% to > 1000% (reflector)
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Electromagnetic compatibility: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: IEC 60068-2-6:2007
- Shock resistance: EN 60068-2-27:2008
- Ambient light immunity: 80 klx
- Dimensions (H x L x W): 92mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide horizontal aperture angle of 275° with 0.75° angular resolution
- High scanning frequency up to 150 Hz with interlaced angular resolution options
- Working range from 0.2 m up to 64 m
- Self-heating for reliable operation in cold environments
- Robust housing with IP65 and IP67 protection ratings
- Multiple filters including fog, particle, average, median, edge, and echo filters
- Ethernet interface with TCP/IP, UDP/IP, OPC, and NTP support
- Supports up to 10 simultaneous field evaluations
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure compliance with safety and operational standards.
Applications
- Outdoor and indoor distance measurement and scanning
- Industrial automation and safety monitoring
- Field evaluation and measurement data output
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency
- Robust housing ensures long operational life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LMS1104C-111031S01 LiDAR sensor is available for immediate purchase, ideal for outdoor and indoor industrial measurement and automation applications.
