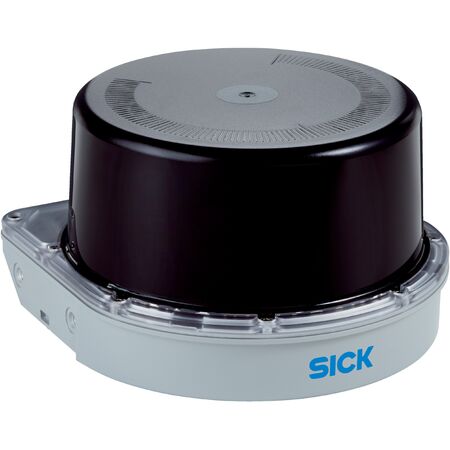

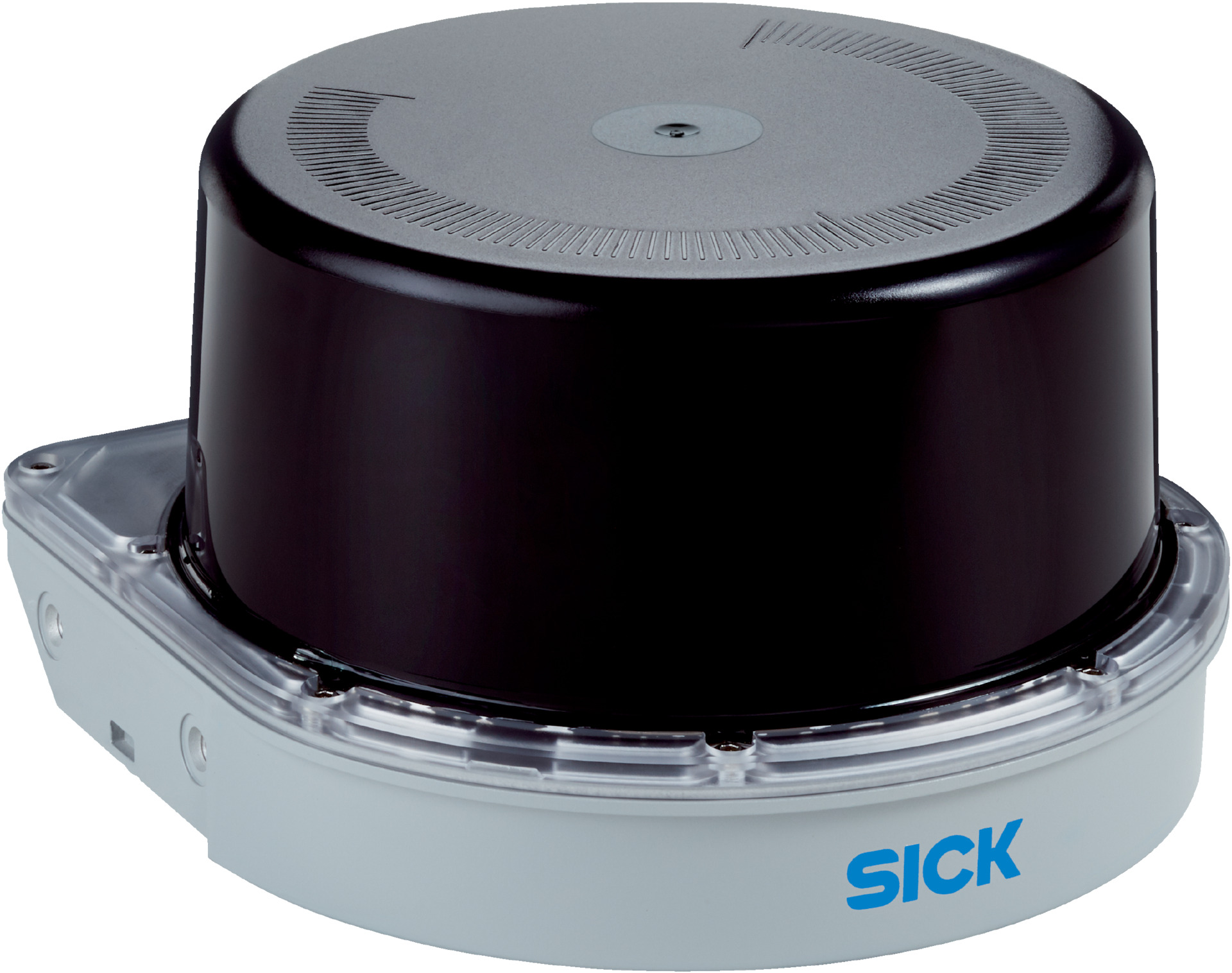

SICK LiDAR Sensor MRS1104C | HDDM+ Measurement | IP65/IP67/IPX9K Rated | 0.2m to 64m Range | by SICK
The SICK LiDAR Sensor MRS1104C is designed for precise distance measurement and scanning, utilizing HDDM+ technology with an infrared light source. With a working range of 0.2m to 64m and robust IP65/IP67/IPX9K protection, it's perfect for industrial automation and safety monitoring applications. This sensor offers high scanning frequency and multiple echo evaluation, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- Horizontal angular resolution: 0.0625°, interlaced
- Vertical angular resolution: 2.5°
- Scanning frequency: 50 Hz, 4 x 12.5 Hz
- Working range: 0.2 m to 64 m
- Scanning range at 10% remission factor: 16 m
- Scanning range at 90% remission factor: 30 m
- Spot size: 10.4 mrad x 8.7 mrad
- Amount of evaluated echoes: 3
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 13 W, max 37 W, start-up max 30 W for 1 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65, IP67, IPX9K
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years
- Output data: Contamination indication, IMU (secondary sensor data)
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 4 layers typical 20 ms, 1 layer typical 80 ms
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Number of field sets: Up to 64
- Simultaneous evaluation cases: Up to 16
- Filters: Fog, particle, average, median, ground reference, edge, echo
- Interfaces: Ethernet (TCP/IP, UDP/IP), 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SOPAS ET, Web server display
- Object remission: 2% to > 1000% (Reflector)
- EMC: EN 61000-6-2:2005 / EN 61000-6-3:2007+A1:2011
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 frequency cycles
- Shock resistance: 15 g, 11 ms, 6 single shocks/axis; 10 g, 16 ms, 1000 continuous shocks/axis
- Ambient operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80 klx
- Dimensions (H x L x W): 93mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- High scanning frequency: 50 Hz with 4 x 12.5 Hz layers
- Working range from 0.2 m up to 64 m
- Self-heating for stable operation
- Multiple echo evaluation (up to 3 echoes)
- Robust housing with IP65, IP67, and IPX9K protection ratings
- Supply voltage range: 10 V DC to 30 V DC
- Power consumption typically 13 W, max 37 W
- Integrated filters including fog, particle, average, median, ground reference, edge, and echo filters
- Ethernet interface with TCP/IP and UDP/IP support
- Configuration via SOPAS ET software and web server display
- High vibration and shock resistance
- Operating temperature range from -30 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Outdoor and indoor distance measurement and scanning
- Industrial automation and safety monitoring
- Object detection and environmental mapping
Standards & Compliance
- Complies with AS/NZS 61010-1: Electrical equipment safety standards
Environmental Benefits
- Durable and robust design reduces need for frequent replacements
- Low power consumption relative to performance
- High resistance to environmental factors extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS1104C-911011S05 LiDAR sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
