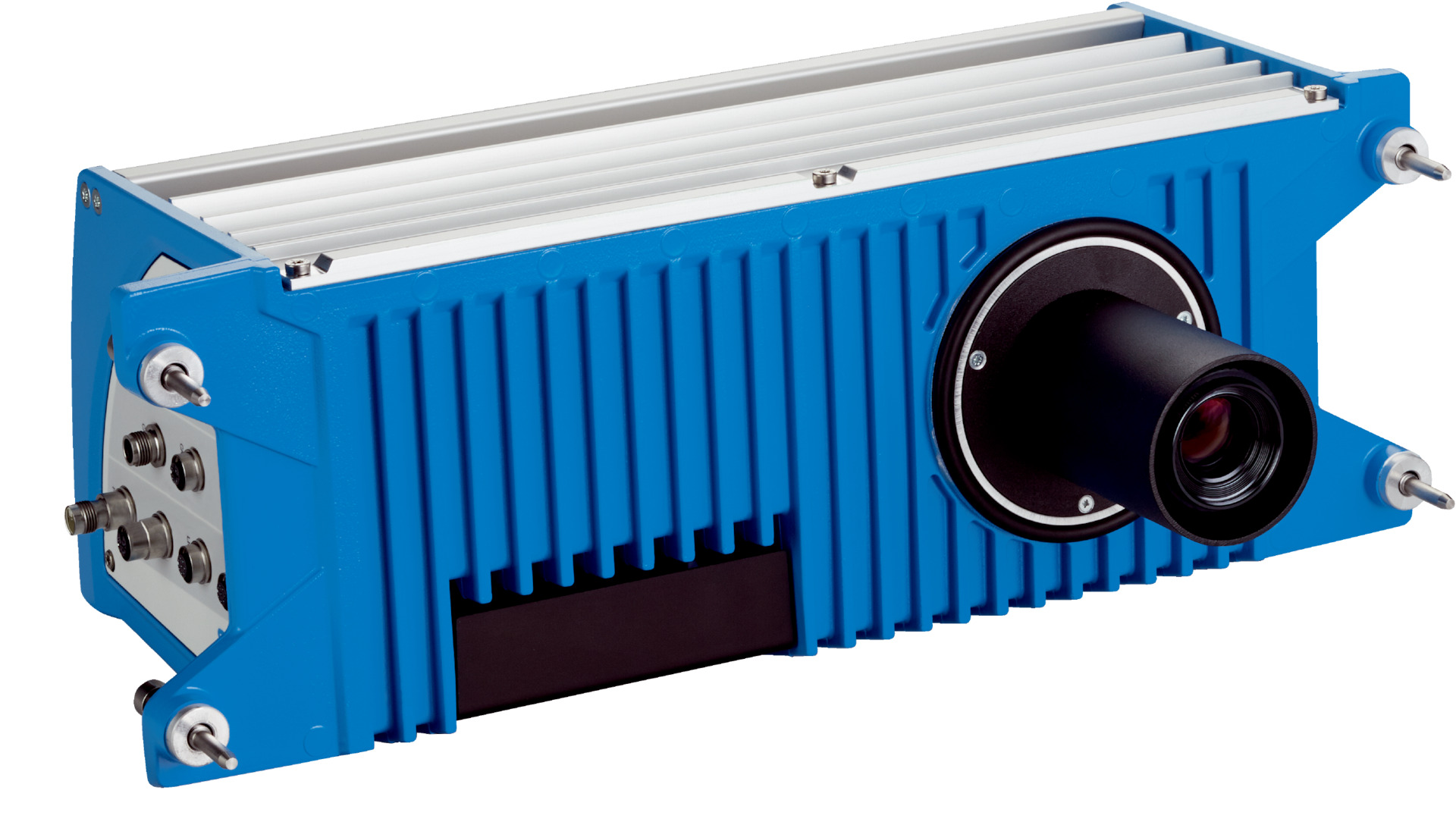

SICK Line Camera ICD890 | 12,288 px CMOS Sensor | 43 kHz Line Frequency | IP65 Rated | by SICK
The SICK Line Camera ICD890 is engineered for high-resolution line scanning and code decoding, featuring a 12,288 px CMOS sensor and a maximum line frequency of 43 kHz. Ideal for industrial automation, it excels in applications like object classification and hazardous material detection, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS line sensor monochrome
- Sensor resolution: 12,288 px (200 dpi)
- Processor: High performance
- Line frequency: Max. 43 kHz
- Lens: Integrated, focal length 120 mm
- Reading distance: 1,550 mm to 3,900 mm
- Field of view: 1,800 mm (170 dpi), 1,560 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating modes: Forward, backward, start/stop
- Working range: 1,550 mm to 3,600 mm
- Power consumption: Typical 80 W, standby 50 W
- Supply voltage: 24 V DC, –10% +20%
- Connection types: Multiple M12 connectors, USB 2.0, Ethernet (3x 1 Gbit/s)
- Image output formats: JPEG, TIFF, BMP
- Data transmission rate: 20 kbit/s to 500 Mbit/s
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +70 °C
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 61010-1:2010-10
- MTBF: 120,000 hours
- MTTR: < 10 minutes
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Line camera with integrated 1D/2D code decoder and image output
- Dynamic and fixed optical focus with 120 mm integrated lens
- High resolution CMOS line sensor with 12,288 px (200 dpi)
- High performance processor with max line frequency of 43 kHz
- Extended functions including code quality analysis, empty tote detection, hazardous material detection, object classification, and 2D dimensioning
- Multiple connection types including Ethernet, CAN, USB, and various M12 connectors
- Robust aluminum die cast housing with IP65 rating
- Supports various 1D and 2D barcode types including GS1-128, QR code, Data Matrix ECC200, and more
- Image output supports JPEG, TIFF, BMP formats with FTP, AWS S3, Samba, and REST server options
- Electromagnetic compatibility and vibration/shock resistance compliant with IEC standards
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with electrical safety standards.
Applications
- Indoor area applications requiring high-resolution line scanning and code decoding
- Industrial automation for barcode and 2D code reading
- Object classification, hazardous material detection, and dimensioning in manufacturing lines
Standards & Compliance
- Complies with AS/NZS 61010-1 for electrical safety
Environmental Benefits
- Energy-efficient operation with 24 V DC supply and standby power consumption of 50 W
- Durable aluminum housing extends product life reducing waste
- Supports digital image output reducing need for physical media and paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

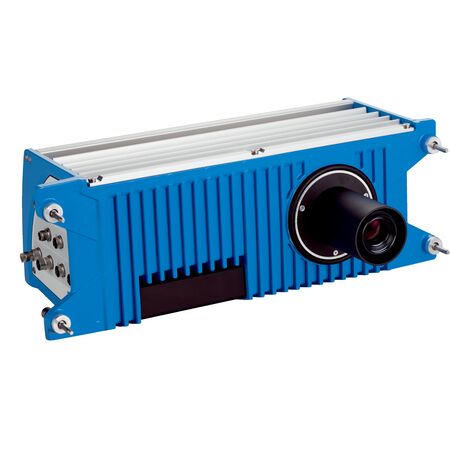

The SICK ICD890-45232010 Line Camera is available for immediate purchase, ideal for indoor industrial automation and code reading applications.
