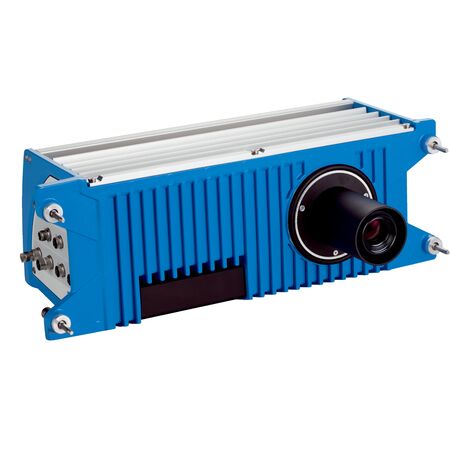

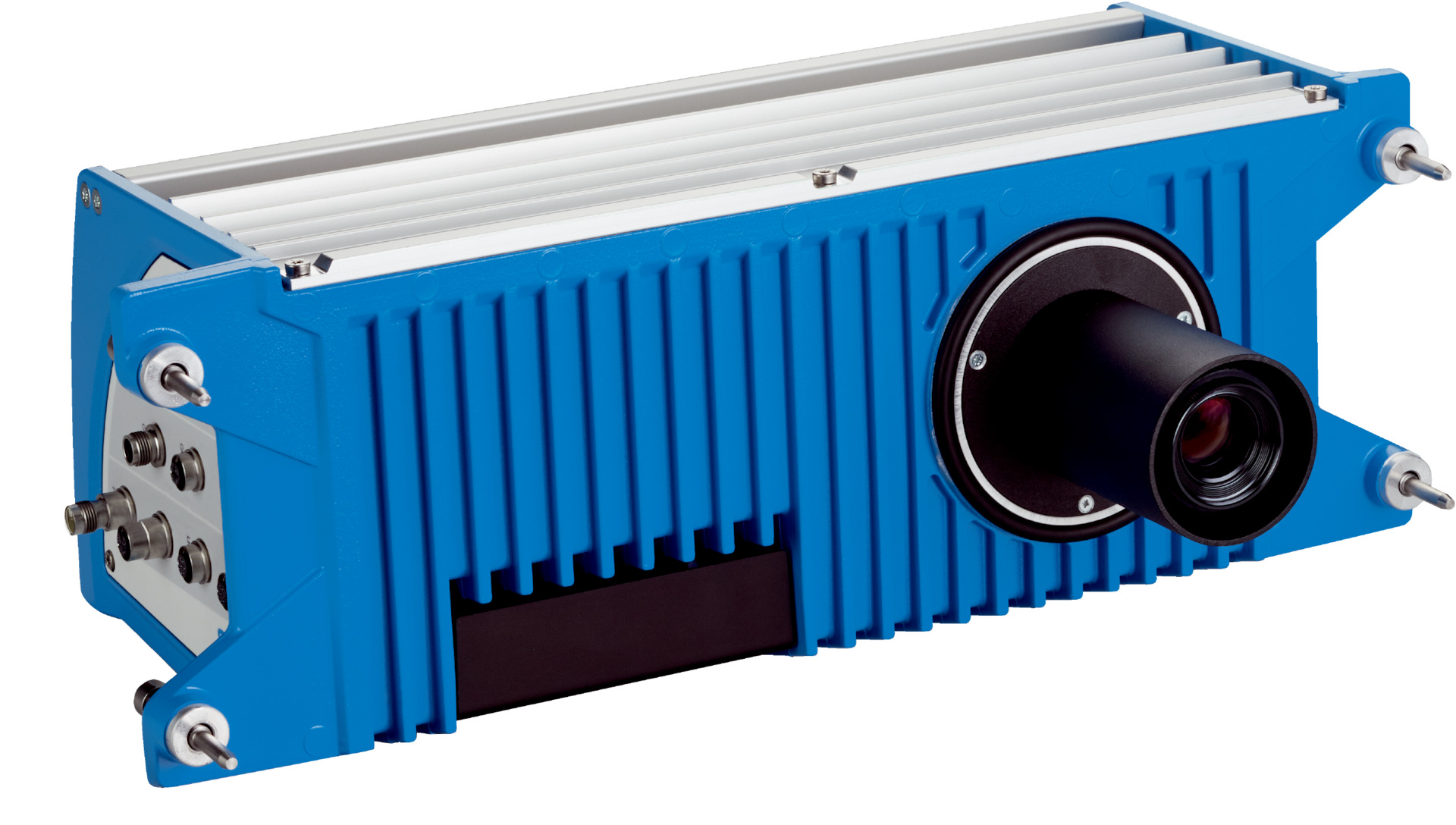

SICK Line Camera ICD890 | 12,288 px CMOS Sensor | Integrated 1D/2D Code Reader | IP65 Rated | by SICK
The SICK Line Camera ICD890 is engineered for high-performance barcode scanning, featuring a 12,288 px CMOS sensor and integrated 1D/2D code decoding. Ideal for indoor industrial automation and logistics, it offers advanced functions like code quality analysis and empty tote detection, ensuring reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS line sensor monochrome
- Sensor resolution: 12,288 px (200 dpi)
- Processor: Standard performance
- Line frequency: Max. 43 kHz
- Lens: Integrated 120 mm focal length
- Reading distance: 1,550 mm to 3,900 mm
- Field of view: 1,800 mm (170 dpi), 1,560 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating mode: Forward, backward, start/stop
- Working range: 1,550 mm to 3,900 mm
- Further functions: Code quality analysis, empty tote detection, hazardous material detection, object classification, 2D dimensioning
- Connection type: Multiple M12 connectors, USB 2.0 type A
- Supply voltage: 24 V DC, –10 % +20 %
- Power consumption: Typ. 80 W, standby typ. 50 W
- Battery: Lithium thionyl chloride, non-rechargeable
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 61010-1:2010-10
- MTBF: 120,000 h
- MTTR: < 10 min
- Readable code structures: 1D, 2D, stacked, plain text
- Barcode types: GS1-128, UPC, EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, postal codes
- 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
- Skew angle: ≤ 75°
- Transport speed: ≤ 4.5 m/s
- Minimum object distance: ≥ 50 mm
- Number of objects per second: ≤ 10
- Image type: JPEG, TIFF, BMP
- Image output: FTP clients, AWS S3 client, FTP Server, Samba Server, REST Server
- Data transmission rate: 20 kbit/s to 500 Mbit/s
- Configuration software: SOPAS ET
- Memory card: 2.5 inch SSD and microSD for data logging and backup
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Line camera with integrated 1D/2D code decoder and image output
- Dynamic and fixed optical focus with 120 mm integrated lens
- High resolution CMOS line sensor with 12,288 px (200 dpi)
- Extended code quality analysis and empty tote detection
- Supports multiple barcode and 2D code types including GS1, QR, Data Matrix
- High transport speed up to 4.5 m/s and skew angle ≤ 75°
- Multiple interfaces including Ethernet, USB 2.0, CAN with high data rates
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial vision systems and electrical safety standards.
Applications
- Indoor area barcode and code scanning
- Industrial automation and logistics
- Object classification and hazardous material detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with typical power consumption of 80 W and standby at 50 W
- Durable aluminum housing designed for long service life and reduced waste
- Supports image-based dimensioning reducing need for additional measurement devices
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK ICD890-45232020 line camera is available for immediate purchase, ideal for indoor industrial automation and logistics applications.
