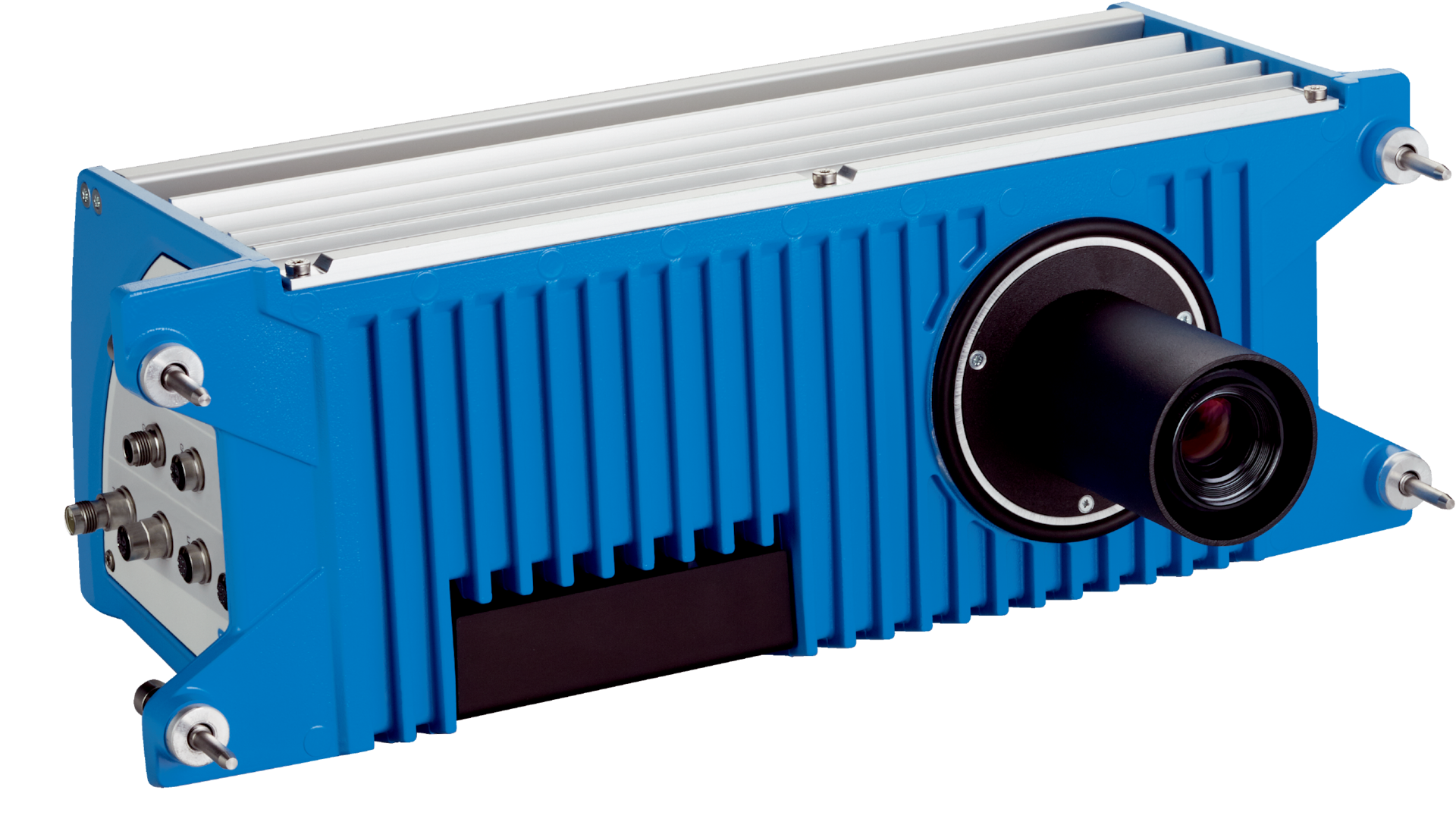

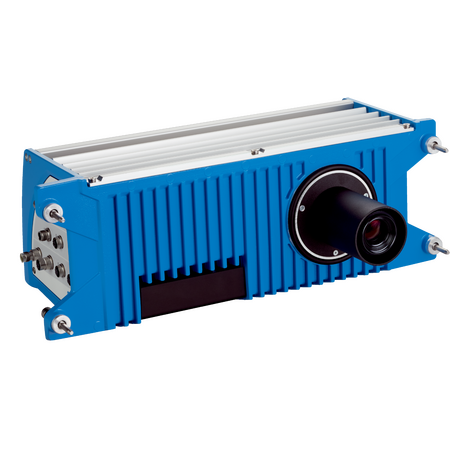

SICK Line Camera ICD890 | 8192 px CMOS Sensor | 50 kHz Line Frequency | IP65 Rated | by SICK

BRAND: SICK
SKU: 1092551
$85,640.90 List price: $107,641.80
+ −
30 Days Return Electricians Unlock Trade Access
The SICK Line Camera ICD890 is engineered for high-performance line scanning and code decoding, featuring an 8192 px monochrome CMOS sensor and a maximum line frequency of 50 kHz. Ideal for industrial automation, it excels in applications like object classification and hazardous material detection, ensuring reliable performance in demanding environments.

Alternatively Known As: SICK Line Camera ICD890, SICK 1D/2D Code Reader, SICK Industrial Vision Camera, ICD890-44342010 Barcode Scanner

Technical Specifications
  • Sensor: CMOS line sensor monochrome
  • Sensor resolution: 8192 px (200 dpi)
  • Processor: High performance
  • Line frequency: Max. 50 kHz
  • Lens: Integrated 95 mm focal length
  • Reading distance: 1550 mm to 3600 mm
  • Field of view: 1200 mm (170 dpi), 1035 mm (200 dpi)
  • Code resolution: ≥ 0.1 mm
  • Operating mode: Forward, backward, start/stop
  • Working range: 1550 mm to 3600 mm
  • Power consumption: Typical 80 W, standby 50 W
  • Supply voltage: 24 V DC, –10% +20%
  • Connection types: Multiple M12 connectors, USB 2.0
  • Enclosure rating: IP65
  • Protection class: III
  • Electrical safety: EN 61010-1:2010-10
  • MTBF: 120,000 hours
  • MTTR: < 10 minutes
  • Image output formats: JPEG, TIFF, BMP
  • Data transmission rate: 20 kbit/s to 500 Mbit/s
  • Ambient operating temperature: –10 °C to +50 °C
  • Storage temperature: –20 °C to +70 °C
  • Permissible relative humidity: 95%, non-condensing
  • Dimensions (H x L x W): 179mm x 487mm x 300mm
  • Weight: 11 kg
Key Features
  • Line camera with integrated 1D/2D code decoder and image output
  • Dynamic and fixed optical focus with 95 mm integrated lens
  • High resolution CMOS monochrome line sensor with 8192 px (200 dpi)
  • High performance processor with max line frequency of 50 kHz
  • Extended functions including code quality analysis, empty tote detection, hazardous material detection, object classification, and 2D dimensioning
  • Multiple connection types including Ethernet (3x M12, 8-pin), CAN, USB, and I/O connectors
  • Robust aluminum die cast housing with IP65 rating and protection class III
  • Supports various 1D and 2D barcode types including GS1-128, Data Matrix ECC200, QR code, and more
  • Image output supports JPEG, TIFF, BMP formats with FTP, AWS S3, Samba, and REST server options
  • Electromagnetic compatibility and vibration/shock resistance compliant with IEC standards
Professional Installation Requirements
  • Installation by qualified professionals is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
  • Indoor area applications requiring high-performance line scanning and code decoding
  • Industrial automation for barcode and 2D code reading
  • Object classification, hazardous material detection, and dimensioning in manufacturing lines
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
  • AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient 24 V DC operation with low standby power consumption
  • Durable aluminum housing designed for long service life and reduced waste
  • Supports image-based dimensioning reducing need for additional sensors
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

The SICK ICD890-44342010 line camera is available for immediate purchase, ideal for indoor industrial automation and barcode scanning applications.
