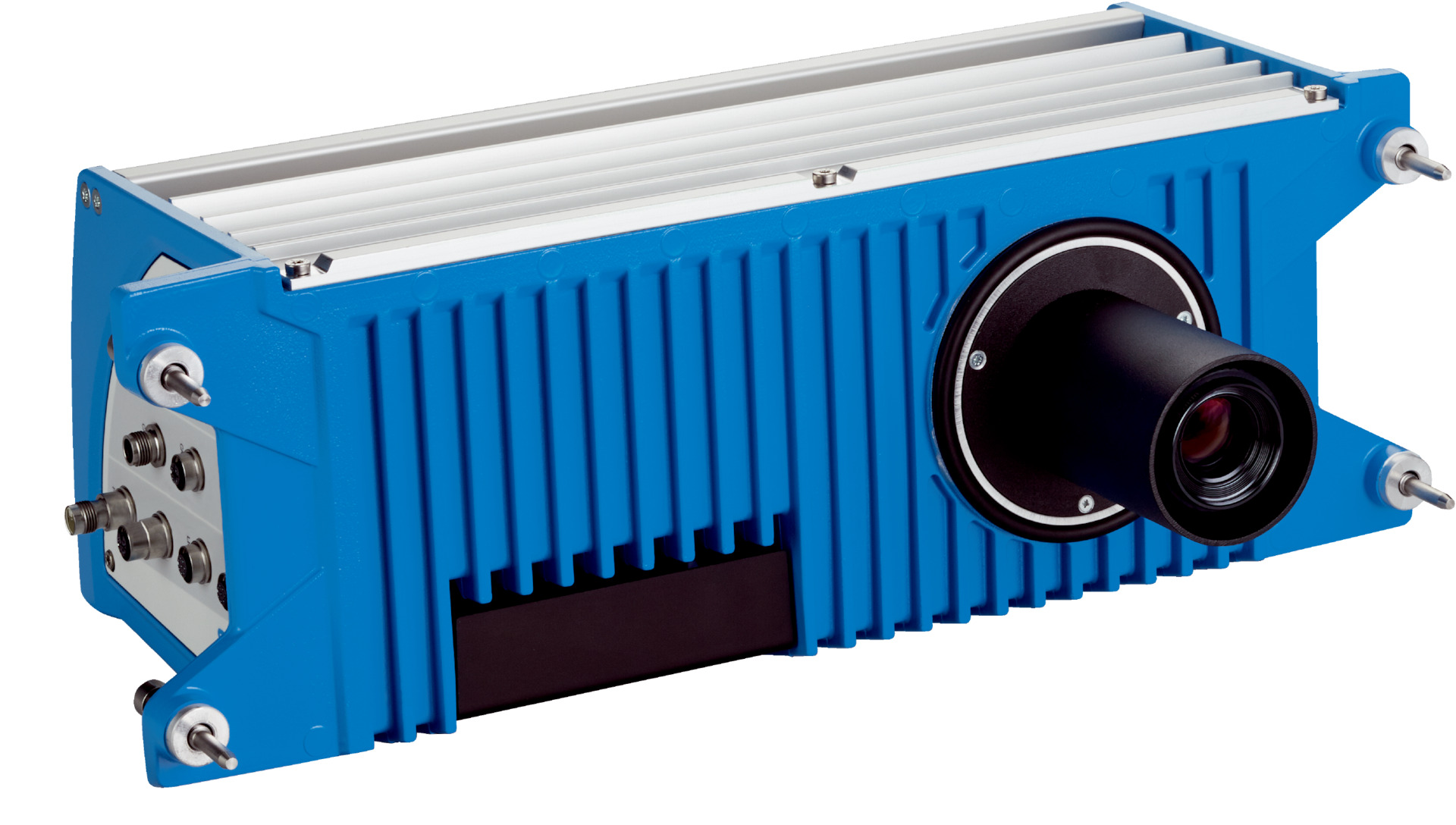

SICK Line Camera ICD890 | 8192 px Resolution | Integrated 1D/2D Code Reader | IP65 Rated | by SICK
The SICK Line Camera ICD890 is engineered for high-performance barcode scanning, featuring an impressive 8192 px resolution and integrated 1D/2D code decoding capabilities. Ideal for industrial automation and object classification, this camera supports multiple barcode types and offers advanced code quality analysis. With a robust aluminum housing and IP65 rating, it ensures durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS line sensor monochrome
- Sensor resolution: 8,192 px (200 dpi standard resolution)
- Processor: High performance
- Line frequency: Max. 50 kHz
- Lens: Integrated 95 mm focal length
- Reading distance: 1,550 mm to 3,600 mm
- Field of view: 1,200 mm (170 dpi), 1,035 mm (200 dpi)
- Code resolution: ≥ 0.1 mm
- Operating mode: Forward, backward, start/stop
- Working range: 1,550 mm to 3,600 mm
- Further functions: Code quality analysis, empty tote detection, hazardous material detection, object classification, 2D dimensioning
- Connection type: Multiple M12 connectors, USB 2.0 type A
- Supply voltage: 24 V DC, –10% +20%
- Power consumption: Typical 80 W, standby 50 W
- Battery: Lithium thionyl chloride, 0.2 g lithium
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Electrical safety: EN 61010-1:2010
- MTBF: 120,000 hours
- MTTR: < 10 minutes
- Readable code structures: 1D, 2D, stacked, plain text
- Supported bar code types: GS1-128, UPC, EAN, Code 39, Code 128, Pharmacode, and more
- Supported 2D code types: Data Matrix ECC200, QR code, MaxiCode, Aztec, PDF417
- Skew angle: ≤ 75°
- Transport speed: ≤ 4.5 m/s
- Minimum object distance: ≥ 50 mm
- Number of objects per second: ≤ 10
- Image type: JPEG, TIFF, BMP
- Image output: FTP clients, AWS S3, FTP Server, Samba Server, REST Server
- Data transmission rate: 20 kbit/s to 500 Mbit/s
- Electromagnetic compatibility: IEC 61000-6-4:2018 / IEC 61000-6-2:2019
- Vibration resistance: IEC 60068-2-6:2007
- Shock resistance: IEC 60068-2-27:2008
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 95%, non-condensing
- Ambient light immunity: 2,000 lx on code
- Contamination rating: 2 (EN 61010-1)
- Altitude: < 2,000 m
- Dimensions (H x L x W): 179mm x 487mm x 300mm
- Weight: 11 kg
Key Features
- Line camera with integrated 1D/2D code decoder and image output
- Dynamic and fixed optical focus with CMOS monochrome line sensor
- High sensor resolution of 8,192 px (200 dpi standard resolution)
- High performance processor with max line frequency of 50 kHz
- Extended code quality analysis and empty tote detection
- Supports multiple 1D and 2D barcode types including GS1, QR, Data Matrix
- Multiple interfaces including Ethernet (3x), USB 2.0, CAN In/Out
- Robust aluminum die cast housing with IP65 rating
- Wide ambient operating temperature range from -10°C to +50°C
- Supports image output via FTP, AWS S3, Samba, REST servers
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-performance line camera scanning
- Industrial automation for barcode and code quality analysis
- Object classification and hazardous material detection
- 2D dimensioning and image-based object measurement
Standards & Compliance
- Complies with AS/NZS 61010-1 Electrical Equipment Safety Standards
- Complies with AS/NZS 3000 Wiring Rules for electrical installation
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy efficient 24 V DC operation with standby power consumption of 50 W
- Non-rechargeable lithium thionyl chloride battery with minimal lithium content
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now

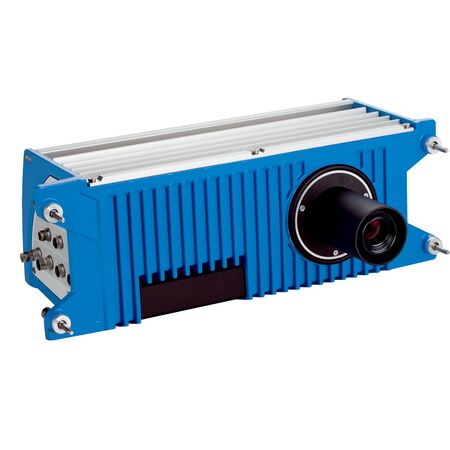

The SICK ICD890-44342010 line camera is available for immediate purchase, ideal for indoor industrial automation and barcode scanning applications.
