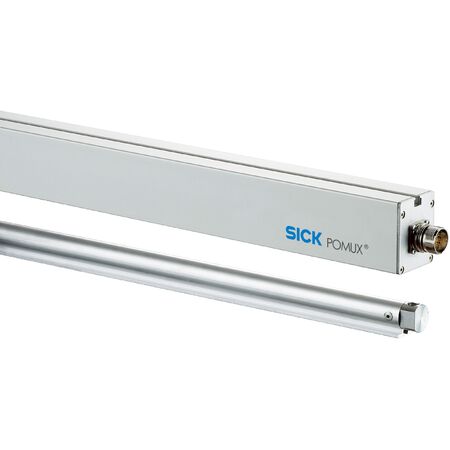

SICK Linear Measuring Sensor KHK53 | 354 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The SICK Linear Measuring Sensor KHK53 offers an impressive measuring range of up to 354 m with a precise 0.1 mm resolution, making it ideal for industrial automation and high-precision measurement tasks. With a robust IP66 rated enclosure, it withstands harsh environments while providing fast traversing speeds of 6.6 m/s and low initialization times of just 2 seconds. Perfect for manufacturing processes and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK Linear Measuring Sensor KHK53 | 354 m Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030071
Alternatively Known As: SICK Linear Measuring Sensor, KHK53 Position Sensor, Industrial Distance Sensor
Technical Specifications
- Measuring range: 0 m to 354 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Parametrization interface: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 seconds
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 10 m length
- Enclosure rating: IP66
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Material of read head: AlMgSiPbF28
- Dimensions (H x L x W): 100mm x 300mm x 150mm
- Weight: 3.6 kg
Key Features
- Measuring range up to 354 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via SSI 24 Bit gray code interface
- Low initialization time of 2 seconds
- Wide operating temperature range from -20 °C to +60 °C
- High resistance to shocks (30 g) and vibration (10 g)
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control
- Position measurement in manufacturing processes
- Safety-related monitoring in machinery
- High precision measurement tasks in harsh environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 250 mA supports energy efficiency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXU00354 measuring sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
