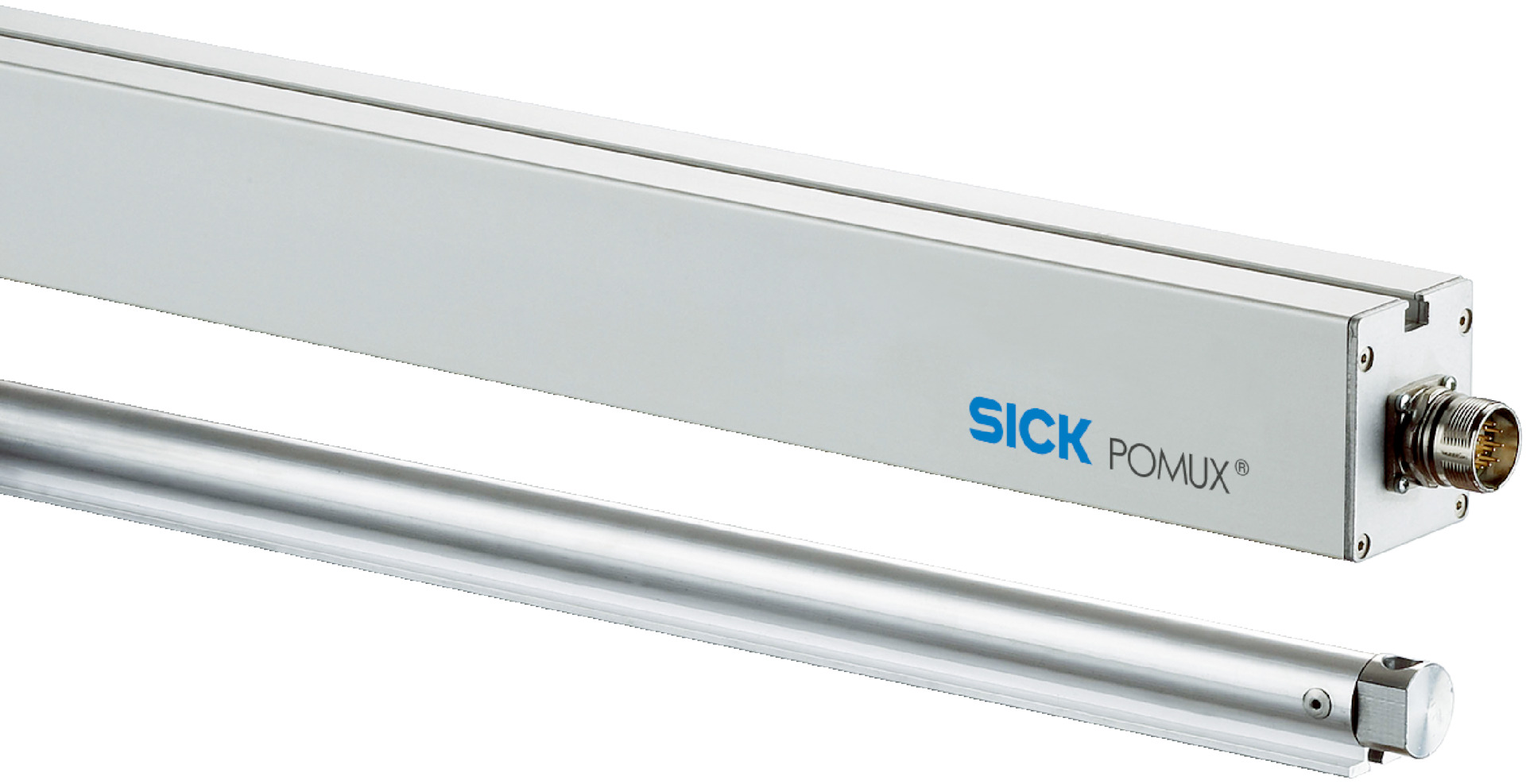

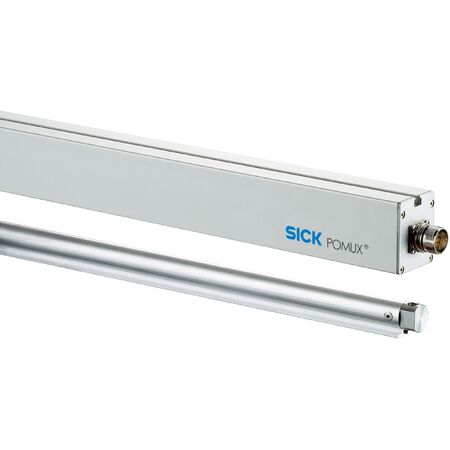

SICK Linear Measuring System KHK53-AXT00354 | 354m Range | 0.1mm Resolution | IP66 Enclosure | by SICK
The SICK Linear Measuring System KHK53-AXT00354 offers a high measuring range of up to 354 meters with exceptional resolution of 0.1 mm and repeatability of 0.3 mm. Designed for industrial automation and safety systems, it features a robust IP66 rated enclosure, making it ideal for harsh environments. With a fast traversing speed of 6.6 m/s and a wide operating temperature range from -20 °C to +60 °C, this system ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK Linear Measuring System KHK53-AXT00354 | 354m Range | 0.1mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030070
Alternatively Known As: SICK Linear Measuring System, SICK Position Sensor, KHK53 Linear Encoder
Technical Specifications
- Measuring range: 0 m to 354 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: 12-wire cable, 5 m length
- Read head material: AlMgSiPbF28
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 100mm x 400mm x 150mm
- Weight: 3.6 kg
Key Features
- High measuring range up to 354 meters
- Excellent resolution of 0.1 mm and repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Reliable safety-related parameters with MTTFD of 31 years
- Digital serial SSI interface with 24 Bit gray code
- Wide operating temperature range from -20 °C to +60 °C
- Resistance to shocks up to 30 g and vibration up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial measurement systems and electrical safety standards to ensure optimal performance and compliance.
Applications
- Industrial automation and safety systems requiring precise position measurement
- Machine tool positioning and control
- Robotics and material handling systems
- Quality control and inspection processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXT00354 measuring system is available for immediate purchase, ideal for industrial automation and safety applications requiring high precision and reliability.
