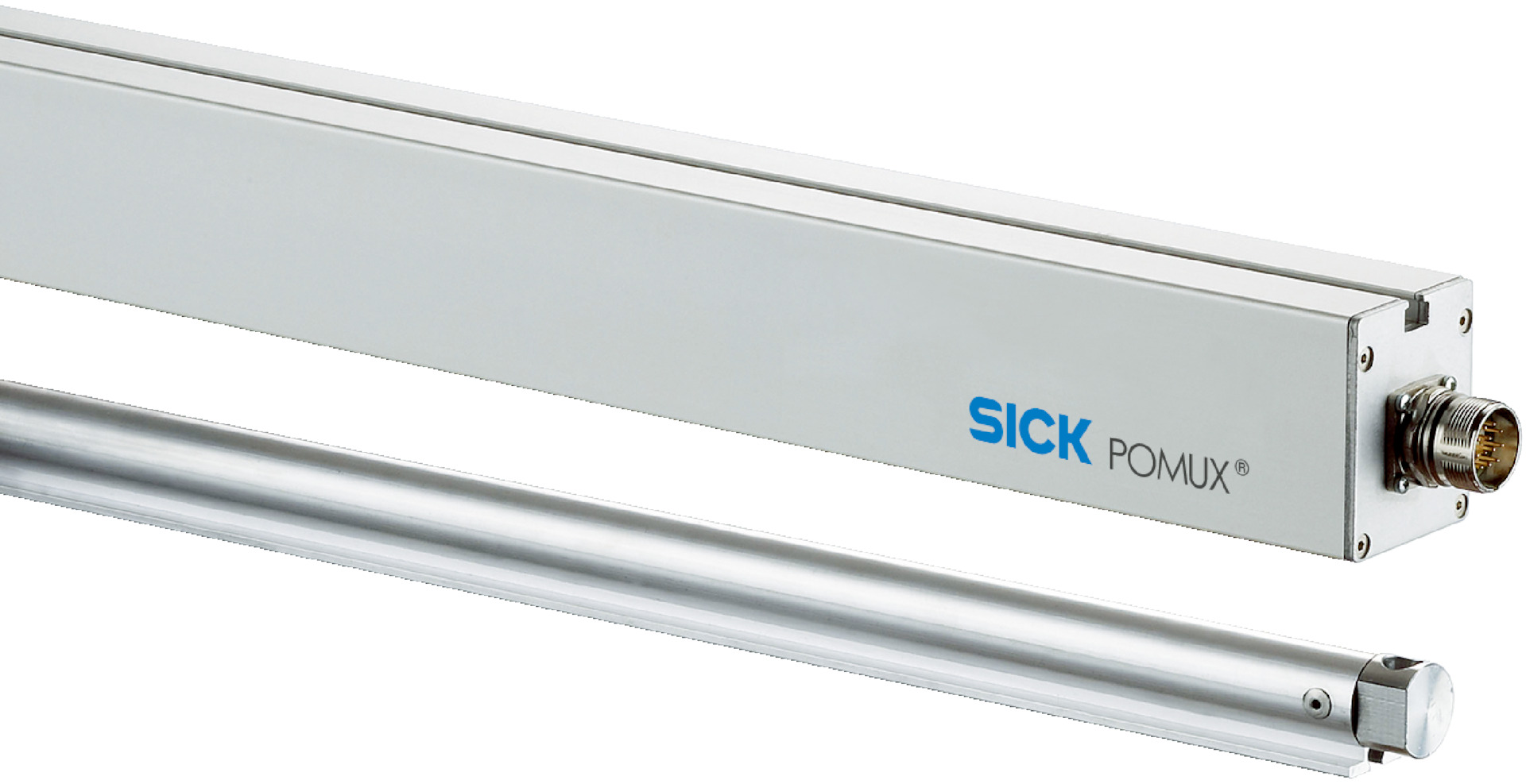

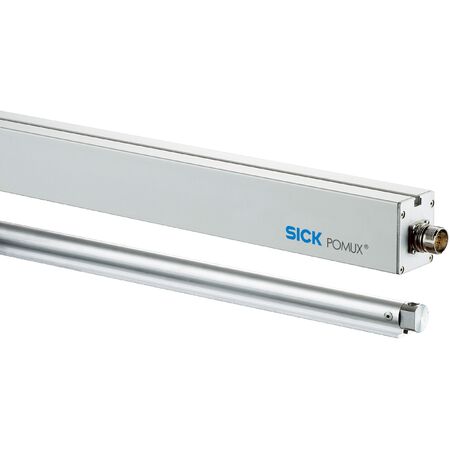

SICK Linear Position Sensor KHK53-AXR01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
The SICK Linear Position Sensor KHK53-AXR01700 offers a remarkable measuring range of up to 1700 m with a precision resolution of 0.1 mm, making it ideal for industrial automation and safety systems. With a robust IP66 rated enclosure, it withstands harsh environments while providing fast position forming times of +0.8 ms. Perfect for machine tool positioning, material handling, and robotics, this sensor ensures reliable performance in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK Linear Position Sensor KHK53-AXR01700 | 1700 m Measuring Range | 0.1 mm Resolution | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1030078
Alternatively Known As: SICK Linear Position Sensor, KHK53 Linear Encoder, Industrial Position Measuring System
Technical Specifications
- Measuring range: 0 m to 1700 m
- Resolution: 0.1 mm
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Traversing speed: 6.6 m/s
- Communication interface: SSI, 24 Bit gray code
- Position forming time: +0.8 ms
- Interface for parametrization: RS-422, ASCII protocol, 9600 Baud
- Initialization time: 2 s
- Supply voltage: 10 V to 32 V
- Current consumption: 250 mA
- Connection type: Cable, 12-wire, 1.5 m
- Enclosure rating: IP66
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 150mm x 400mm x 150mm
- Weight: 5.2 kg
Key Features
- Measuring range up to 1700 m with 0.1 mm resolution
- High repeatability of 0.3 mm
- Robust IP66 rated enclosure for harsh environments
- Fast position forming time of +0.8 ms
- Communication via SSI digital serial interface with 24 Bit gray code
- Wide operating temperature range from -20 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial measurement systems and electrical safety standards.
Applications
- Industrial automation and safety systems requiring precise position measurement
- Machine tool positioning and control
- Material handling and conveyor systems
- Robotics and automated manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient electronics reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-AXR01700 measuring system is available for immediate purchase, ideal for industrial automation and safety-critical applications.
