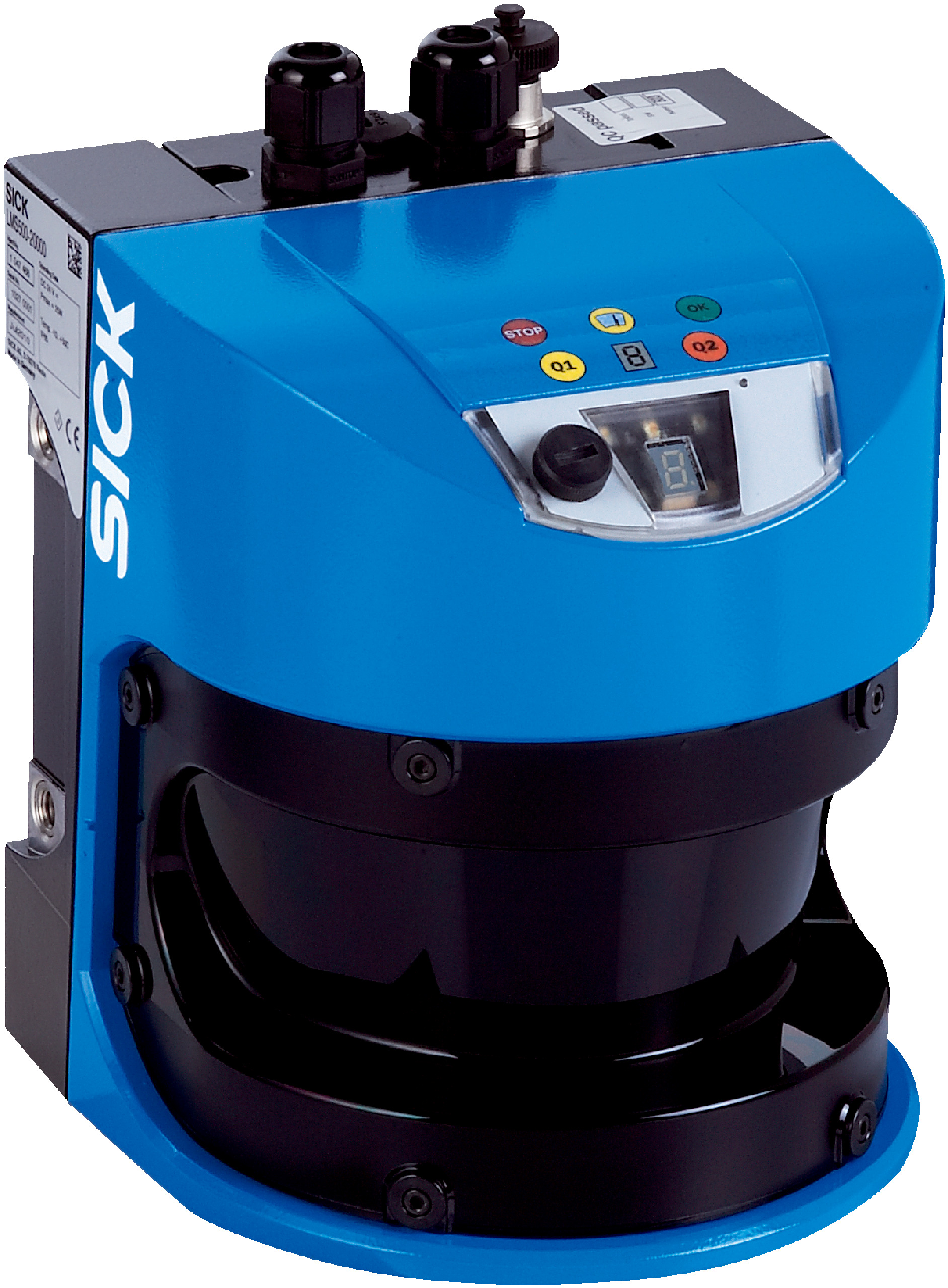

SICK LMS500-20000S01 Laser Scanner | High Resolution Infrared | IP65 Rated | 190° Aperture Angle | by SICK
The SICK LMS500-20000S01 Laser Scanner delivers high-resolution infrared scanning with a wide 190° aperture angle, making it ideal for indoor industrial automation and safety monitoring. With multiple scanning frequencies and a robust IP65-rated housing, this scanner ensures reliable performance in demanding environments, providing accurate measurements up to 80 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK LMS500-20000S01 Laser Scanner | High Resolution Infrared | IP65 Rated | 190° Aperture Angle | by SICK
Brand: SICK
SKU: 1056468
Alternatively Known As: SICK LMS500 PRO Laser Scanner, SICK LMS500 Indoor Laser Scanner, High Resolution Laser Scanner SICK LMS500
Technical Specifications
- Light source: Infrared (905 nm, ± 10 nm)
- Laser class: 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 190° horizontal
- Horizontal angular resolution: 0.042°, interlaced
- Scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range: 0.2 m to 80 m
- Measurement accuracy: ± 12 mm
- Spot size divergence: 4.7 mrad
- Power consumption: 22 W
- Supply voltage: 24 V DC, ± 20%
- Housing material: AlSi12
- Window material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (IEC 61140:2016-11)
- Interfaces: Ethernet (TCP/IP, UDP/IP), Serial (RS-232, RS-422), CAN, USB
- Digital inputs: 4 (digital, encoder HTL, synchronization)
- Digital outputs: 6 (digital)
- Optical indicators: 5 LEDs with additional 7-segment display
- MTBF: > 100 years
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Vibration resistance: 10 Hz to 150 Hz, amplitude 0.35 mm to 5 g, 20 cycles
- Shock resistance: 15 g, 11 ms, 6 single shocks per axis
- Impact resistance: IK05, IK06, IK07 (DIN EN 50102:09-1997)
- Dimensions (H x L x W): 185mm x 160mm x 155mm
- Weight: 3.7 kg
Key Features
- High resolution infrared laser source (905 nm, ± 10 nm)
- Laser class 1 compliant with EN/IEC 60825-1 standards
- Wide aperture angle of 190° horizontal
- Multiple scanning frequencies: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
- Working range from 0.2 m up to 80 m
- Measurement accuracy of ± 12 mm
- Supports up to 5 evaluated echoes
- Robust housing with IP65 rating and scratch-resistant polycarbonate window
- Multiple interface options including Ethernet, Serial (RS-232, RS-422), CAN, and USB
- Digital inputs and outputs with 4 inputs and 6 outputs
- Self-heating for stable operation
- Vibration and shock resistant with IK05, IK06, IK07 impact ratings
- Ambient operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Indoor applications requiring high resolution laser scanning
- Industrial automation and safety monitoring
- Object detection and measurement in manufacturing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports precise measurement reducing material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK LMS500-20000S01 PRO Laser Scanner is available for immediate purchase, ideal for indoor industrial automation and safety monitoring applications.
