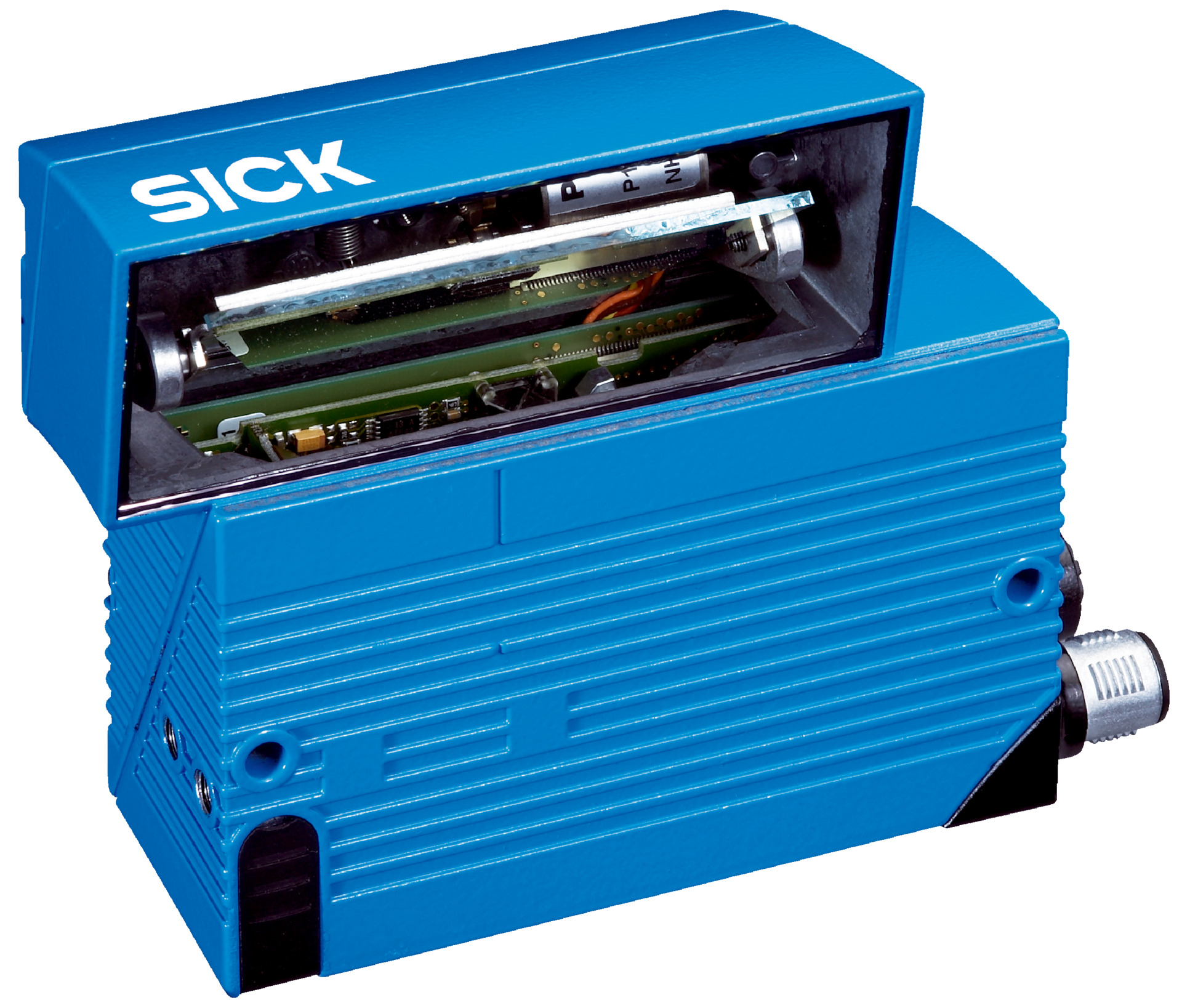

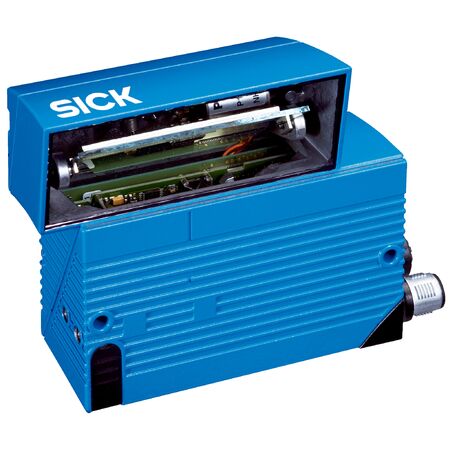

SICK Long Range Barcode Scanner | Ethernet Connection | 1D Code Reading | IP65 Rated | by SICK
The SICK Long Range Barcode Scanner is designed for industrial automation, featuring an Ethernet connection and the ability to read various 1D barcodes including Code 39 and Code 128. With a robust IP65-rated aluminum housing and high scanning frequency, it's perfect for logistics, manufacturing, and quality assurance applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK Long Range Barcode Scanner | Ethernet Connection | 1D Code Reading | IP65 Rated | by SICK
Brand: SICK
SKU: 1047279
Alternatively Known As: SICK Long Range Barcode Scanner, CLV630 Ethernet Scanner, Industrial Line Scanner, SICK CLV630-6121 Barcode Reader
Technical Specifications
- Version: Long Range
- Connection type: Ethernet
- Reading field: Oscillating mirror
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 45 mm to 659 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.35 mm to 1 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 6.25 Hz
- Angle of deflection: –20° to 20°
- Connection type: 2 x M12 cylindrical connectors (12-pin male, 4-pin female) on swivel connector
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 6 W
- Housing material: Aluminum die cast
- Window material: Plastic
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported bar code types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 41mm x 95mm x 107mm
- Weight: 0.35 kg
Key Features
- Long range line scanner with fixed optical focus
- Oscillating mirror with adjustable position and variable amplitude
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- High scanning frequency from 400 Hz to 1200 Hz
- Laser class 2 with visible red light spot at 655 nm
- Robust aluminum die cast housing with IP65 rating
- Supports up to 50 codes per reading interval and 5000 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser scanning technology reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Supports digital data transmission minimizing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV630-6121 Long Range Ethernet Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
