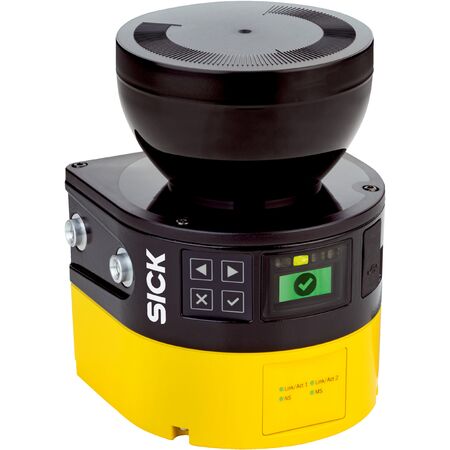

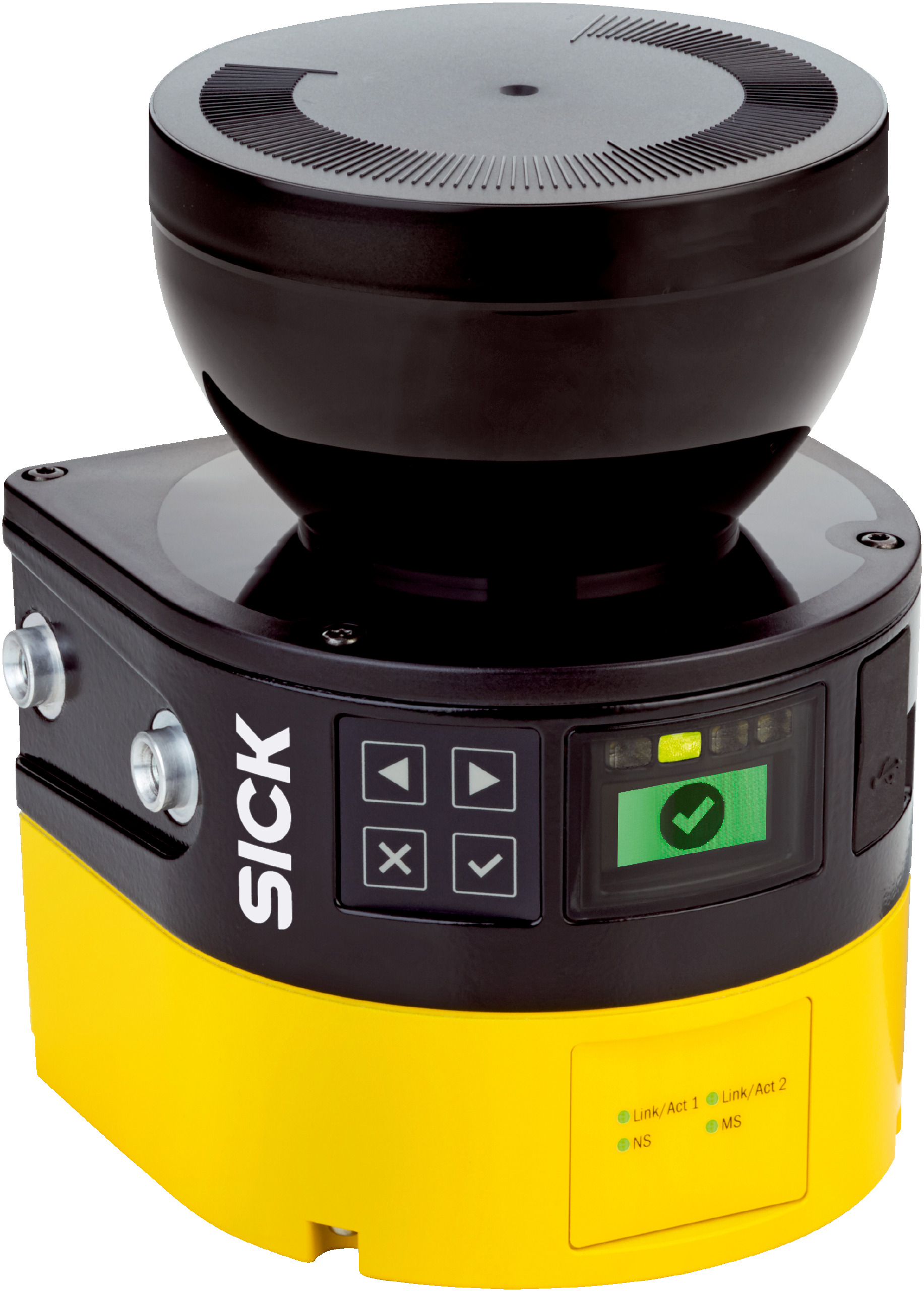

SICK microScan3 Core EFI-pro Safety Sensor | 4m Protective Range | 40m Warning Range | 275° Scanning Angle | by SICK
The SICK microScan3 Core EFI-pro Safety Sensor is designed for indoor safety monitoring in industrial automation, featuring a protective field range of 4 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, this robust sensor ensures reliable machine safeguarding and perimeter protection, making it ideal for factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - EFI-pro
- Protective field range: 4 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for fieldbus
- Fieldbus: EFI-pro
- Outputs: 4 safety outputs via network
- Configuration: PC with Safety Designer software
- Configuration interfaces: USB 2.0, Mini-USB, Ethernet
- Data interfaces: EtherNet/IP CIP Safety, CoLa 2, DHCP, SNMP, SNTP
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65 (IEC 60529)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: IEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-3
- Shock resistance: IEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-3
- Laser type: Pulsed laser diode, wavelength 845 nm, Laser class 1
- Dimensions (H x L x W): 151mm x 111mm x 112mm
- Weight: 1.45 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Safe outputs via network with 4 safety outputs
- Integrated configuration memory and safe SICK device communication via EFI-pro
- Graphic color display and LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety sensor systems and industrial network protocols to ensure compliance with safety standards.
Applications
- Indoor safety monitoring in industrial automation
- Machine safeguarding and perimeter protection
- Factory automation requiring reliable safety sensors
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable design reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Core EFI-pro Safety Sensor MICS3-ABAZ40ZA1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
