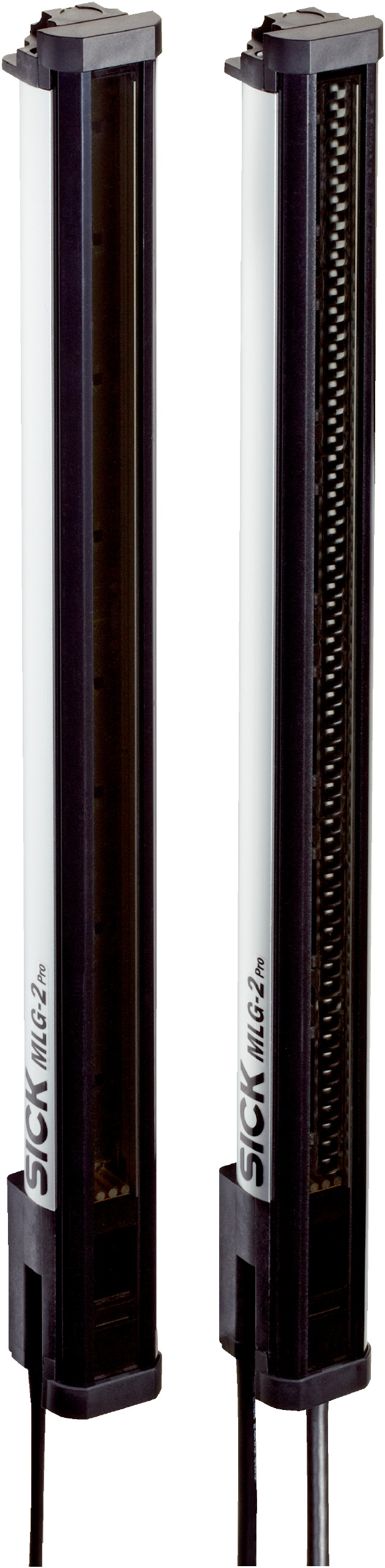

SICK MLG10A-0890B10801 Sensor | Pro Extended Functionality | 90 Beams | IP65 & IP67 Rated | by SICK
The SICK MLG10A-0890B10801 sensor is designed for precise object detection and measurement, featuring a pro extended functionality with 90 beams and a minimum detectable object size of 10 mm. Ideal for industrial automation, this sensor operates in various modes, including standard and transparent, ensuring reliable performance in challenging environments. With an IP65 and IP67 enclosure rating, it withstands dust and moisture, making it perfect for diverse applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Number of beams: 90
- Beam separation: 10 mm
- Synchronization: Cable
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption: Sender 59.5 mA, Receiver 138 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin, 8-pin male; 4-pin female D-coded)
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Response time: 8.2 ms
- Maximum range: 12 m
- Operating range: 8.5 m
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Data interfaces: IO-Link V1.1, Analog current output 4-20 mA, Digital outputs Q1, Q2
- Cycle time: 2.3 ms
- Process data length: 32 Byte
- Dimensions (H x L x W): 900mm x 150mm x 100mm
- Weight: 2.05 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 10 mm
- 90 beams with 10 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67
- LED display
- Circuit protection including reverse polarity and short-circuit protection
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Ambient operating temperature from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10A-0890B10801 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
