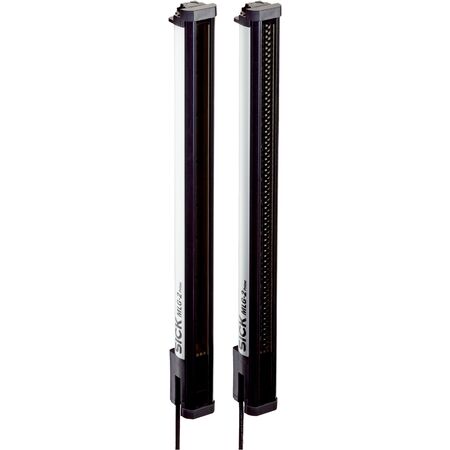

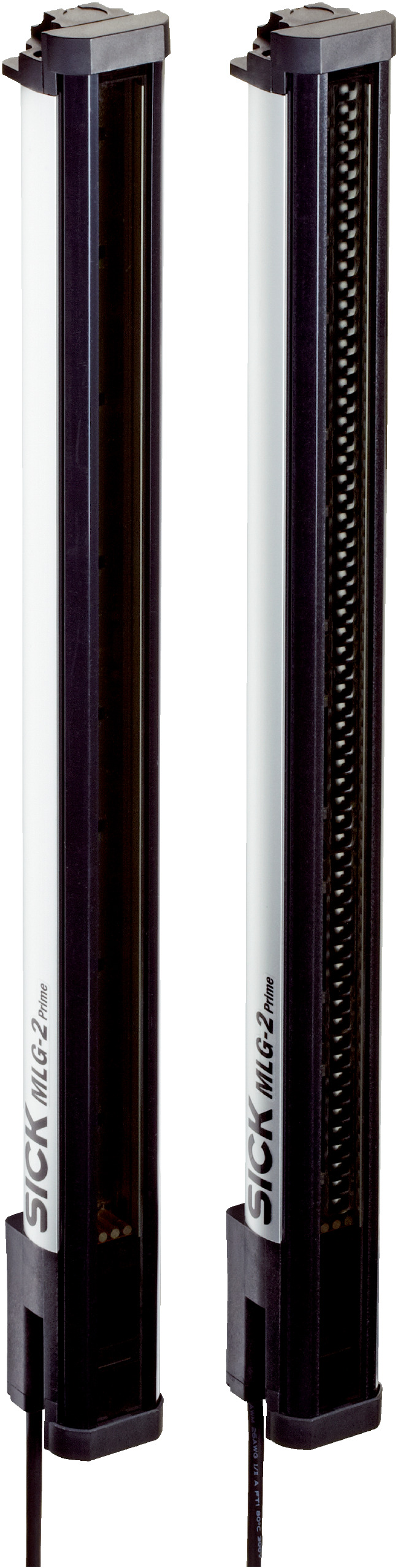

SICK MLG10S-0440A10501 Sensor | 440 mm Height Detection | 45 Beams | IP65/IP67 Rated | by SICK
The SICK MLG10S-0440A10501 sensor excels in object detection and height measurement, featuring a 440 mm detection height and 45 beams with 10 mm separation. Designed for industrial automation, it operates efficiently with an LED infrared light source and supports IO-Link for smart data communication, making it ideal for precise applications in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 14 mm
- Number of beams: 45
- Beam separation: 10 mm
- Detection height: 440 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.25 mA
- Power consumption receiver: 129 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Response time: 6.7 ms
- Operating range: 5 m
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- IO-Link V1.1 support with 38.4 kbit/s data rate
- Analog output current: 4 mA to 20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 50mm x 150mm x 100mm
- Weight: 1.15 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 14 mm
- 45 beams with 10 mm beam separation
- Optical synchronization
- Height detection of 440 mm
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- LED display
- Short initialization time under 1 second
- Circuit protection including reverse polarity and short-circuit protection
- Supports IO-Link V1.1 and analog current output
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Supports IO-Link for smart data communication enabling predictive maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10S-0440A10501 sensor is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and height measurement.
