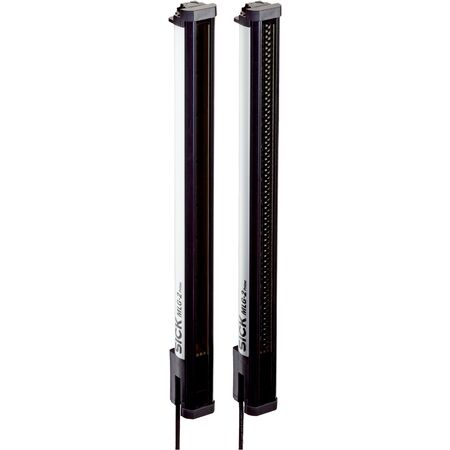

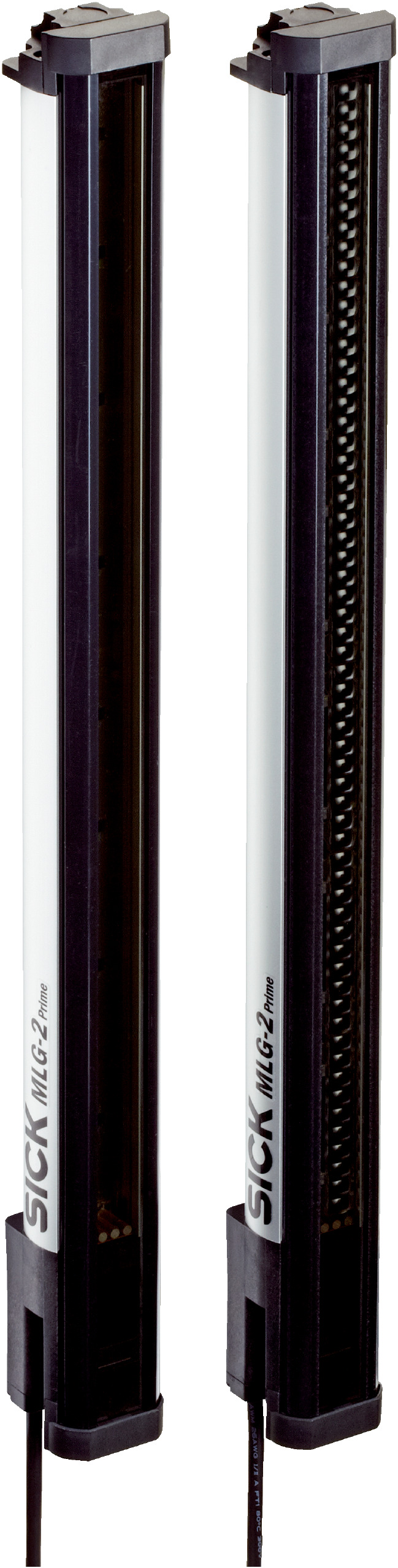

SICK MLG10S Height Sensor | 3,140 mm Detection Height | 315 Beams | IP65/IP67 Rated | by SICK
The SICK MLG10S Height Sensor is designed for precise object detection and height measurement, featuring a detection height of 3,140 mm and 315 beams with 10 mm beam separation. Ideal for industrial automation applications, this sensor operates efficiently in temperatures ranging from -30°C to +55°C, ensuring reliable performance in various environments. With its robust aluminum housing and IP65/IP67 rating, it offers durability and protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 14 mm
- Beam separation: 10 mm
- Number of beams: 315
- Detection height: 3,140 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 70.75 mA
- Power consumption receiver: 183 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- Operating range: 5 m
- Response time: 33.9 ms
- IO-Link V1.1 with 38.4 kbit/s data rate and 20 m max cable length
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 12,000 lx, Indirect 50,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 3500mm x 150mm x 100mm
- Weight: 6.5 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- 315 beams with 10 mm beam separation
- Detection height of 3,140 mm
- Auto-define height classification software features
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Aluminum housing with PMMA front screen
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- Short initialization time under 1 second
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces material waste and extends product life
- IP65/IP67 rating ensures protection against dust and water, reducing maintenance needs
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG10S-3140D10501 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
