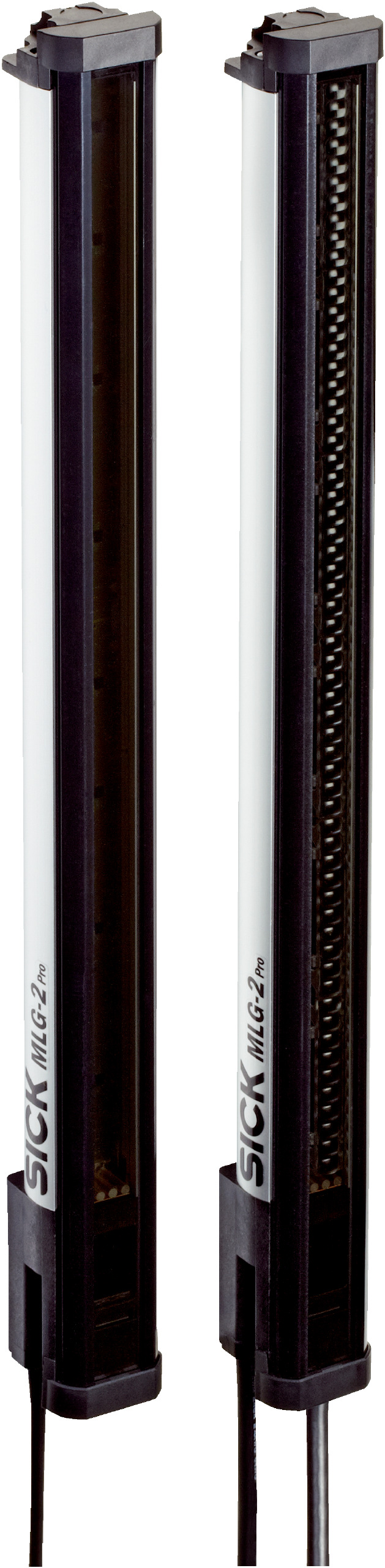

SICK MLG25A-2525R10501 Object Detection Sensor | Pro Version | 102 Beams & IP65/IP67 Rated | by SICK
The SICK MLG25A-2525R10501 object detection sensor features a pro version with extended functionality, utilizing a sender/receiver principle with 102 beams for precise detection. Ideal for industrial automation, it excels in object recognition, height classification, and zone definition, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm
- Number of beams: 102
- Detection height: 2525 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 60.1 mA
- Power consumption receiver: 140.4 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin, 8-pin, 4-pin D-coded)
- Enclosure rating: IP65, IP67
- Response time: 9.2 ms
- Maximum range: 7 m
- Operating temperature: -30°C to +55°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Data interface: IO-Link V1.1 with 230.4 kbit/s
- Cycle time: 2.3 ms
- Process data length: 32 Byte
- Dimensions (H x L x W): 100mm x 100mm x 300mm
- Weight: 5.3 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 102 beams
- Minimum detectable object size of 25 mm
- Beam separation of 25 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- Aluminum housing with PMMA front screen
- IO-Link V1.1 interface with 230.4 kbit/s data transmission rate
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for industrial automation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP65/IP67 rated housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- Robust design reduces electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG25A-2525R10501 sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
