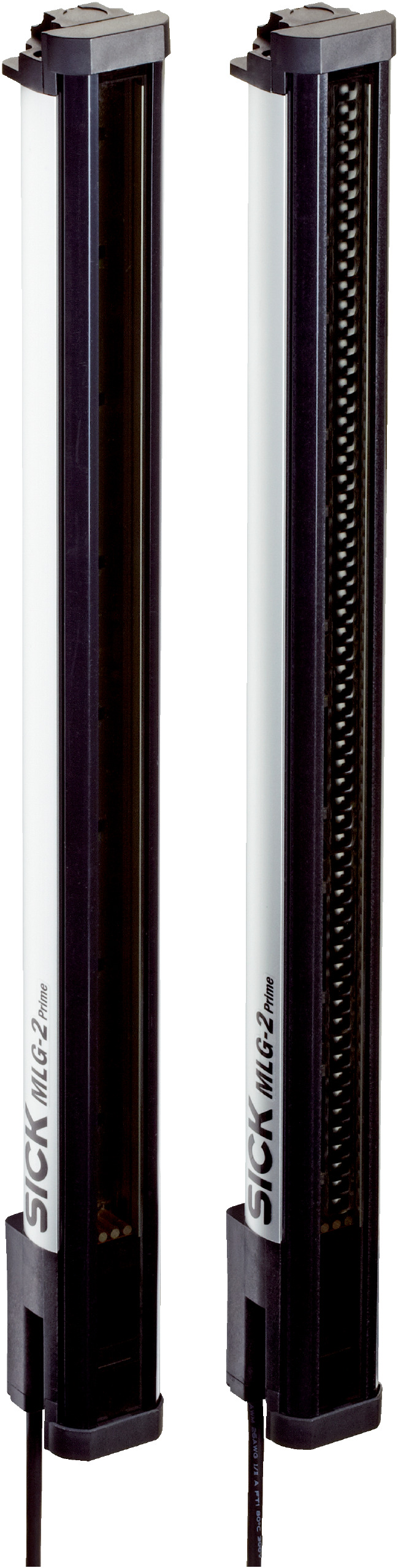

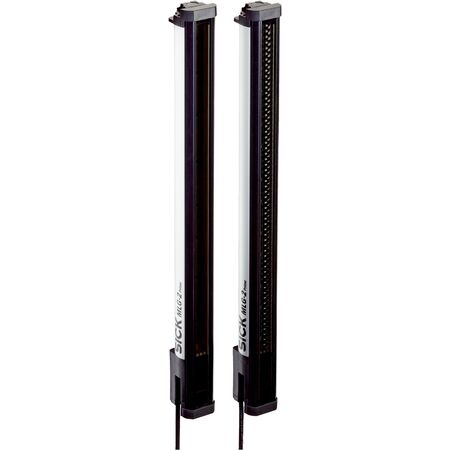

SICK MLG50S-2650D10501 | 54 Beams | IP65 & IP67 Rated | 2,650 mm Detection Height | by SICK
The SICK MLG50S-2650D10501 is a high-performance object detection sensor featuring 54 beams with 50 mm beam separation and a detection height of 2,650 mm. Designed for industrial automation, it offers robust IP65 and IP67 rated protection, making it ideal for challenging environments. With a quick initialization time of less than 1 second and an IO-Link V1.1 interface, this sensor ensures reliable performance for height classification and object recognition applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 54 mm
- Beam separation: 50 mm
- Number of beams: 54
- Detection height: 2,650 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.7 mA
- Power consumption receiver: 130.8 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Protection class: III
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- Operating range: 5 m
- Response time: 7.6 ms
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 300mm x 100mm x 150mm
- Weight: 5.65 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- 54 beams with 50 mm beam separation
- Detection height of 2,650 mm
- Auto-define height classification software features
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure for robust protection
- LED display for status indication
- Short initialization time of less than 1 second
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems and electrical safety standards.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED infrared light source
- Durable aluminum housing reduces need for frequent replacements
- Robust design minimizes electronic waste through extended product life
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MLG50S-2650D10501 sensor is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and height classification.
