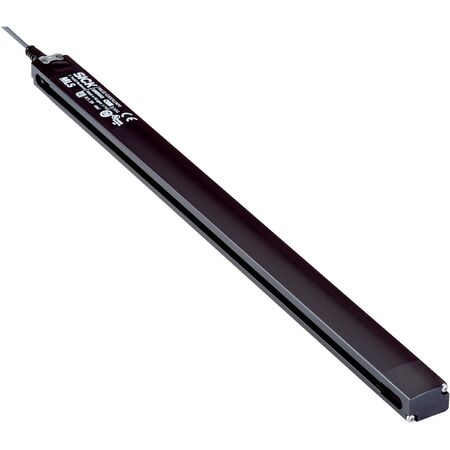

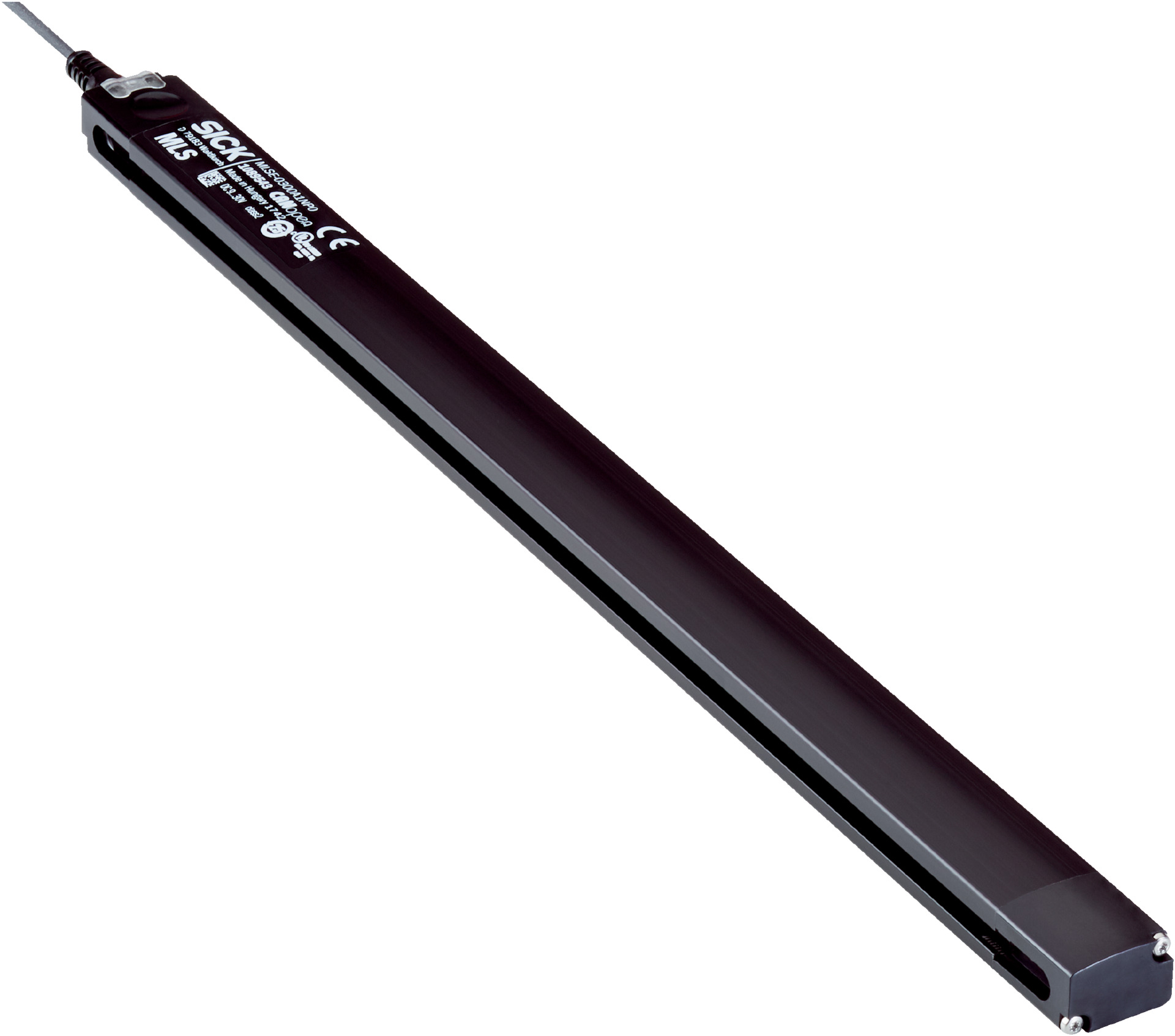

SICK MLSE-0200A2NQ0 Orientation Sensor | 200 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The SICK MLSE-0200A2NQ0 orientation sensor features a typical detection range of 200 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation and robotics, it offers high resolution and repeat accuracy of 1 mm, making it ideal for precise object detection and positioning. With robust IP65, IP67, and IP68 ratings, this sensor is built to withstand harsh environments while providing reliable data for safety systems and machine monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 200 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function: Yes
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- EMC compliance: EN 61000-6-2, EN 61000-6-4
- Connection type: Cable with M12 male connector, 4-pin, 0.3 m
- Material housing: Metal, Aluminum, plastic
- Cable material: PUR
- Orientation measurement: 3-axis Euler angles with ±180° roll/yaw and ±90° pitch
- Orientation resolution: 0.02°
- Roll, pitch, yaw repeatability: ±1°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- MTTFD: 143 years
- Mission time: 20 years
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 200 mm with operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- High resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with teach-in functionality
- Robust enclosure rated IP65, IP67, and IP68 for harsh environments
- Wide supply voltage range from 9 V DC to 30 V DC
- Shock and vibration resistant up to 30 g
- CANopen communication interface for easy integration
- Orientation measurement with 3-axis Euler angles and high repeatability
- Certified with multiple international conformity declarations including EU, UK, ACMA, and cULus
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and CANopen communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for precise object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring reliable sensor data
- Machine monitoring and control
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 600 mW supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0200A2NQ0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety system applications.
