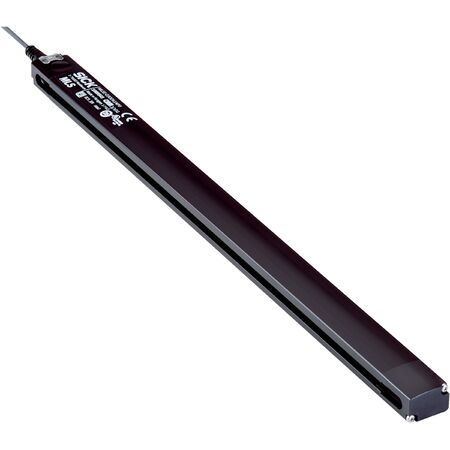

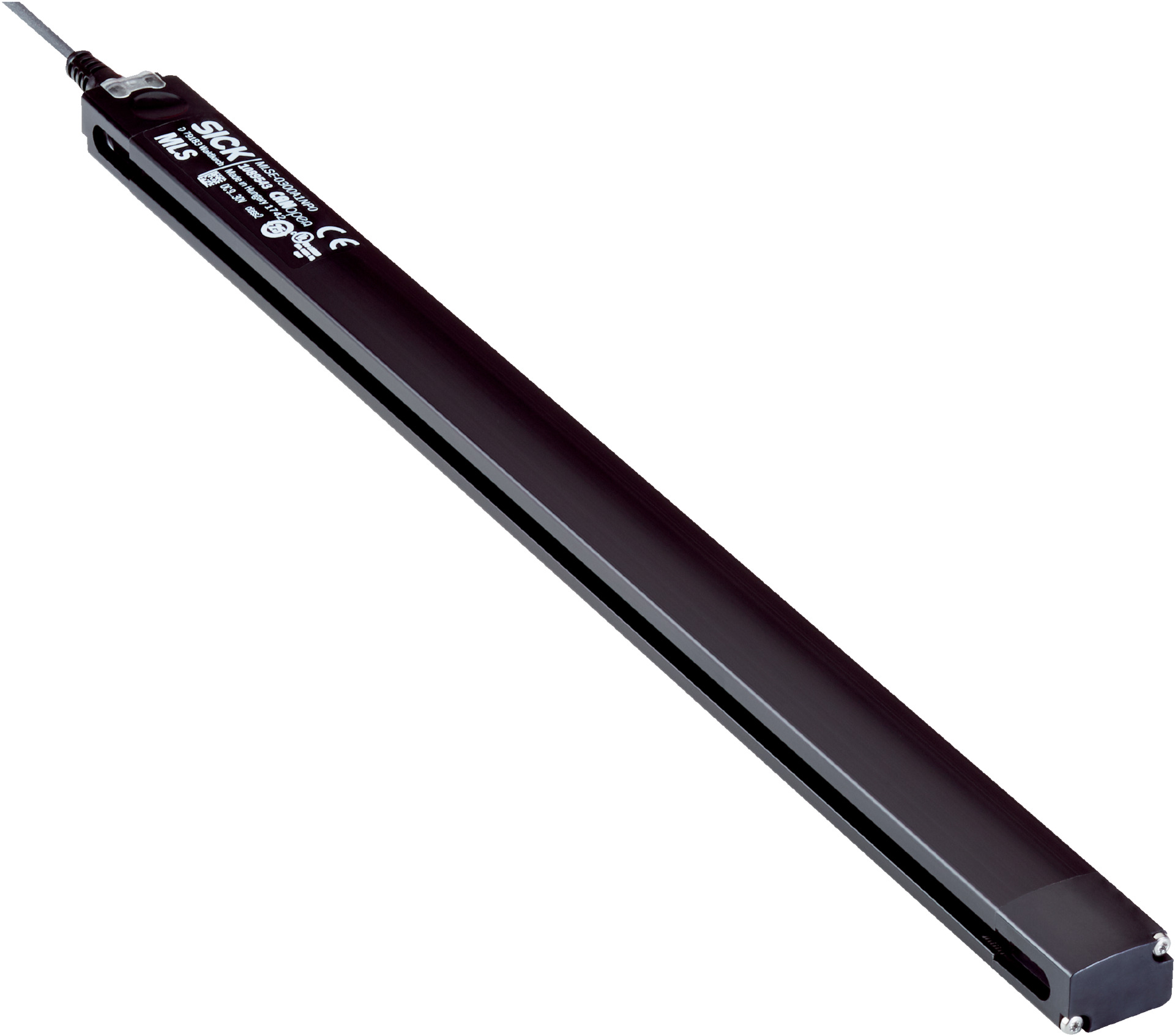

SICK MLSE-0500A2NP0 Sensor | 500mm Detection Range | IP65/IP67/IP68 Rated | CANopen Interface | by SICK
The SICK MLSE-0500A2NP0 sensor features a typical detection range of 500 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation, this sensor is perfect for object detection and positioning, offering robust IP65/IP67/IP68 protection and a CANopen communication interface for seamless integration. With a resolution and repeat accuracy of 1 mm, it ensures precise measurements in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 500 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Teach-in function included
- Reverse polarity and short-circuit protection
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms/10 Hz to 55 Hz
- Communication interface: CANopen
- Housing material: Metal, Aluminum, plastic
- Cable material: PUR
- Safety parameters: MTTFD 103 years, Mission time 20 years
- Dimensions (H x L x W): 30mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 500 mm
- Operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring
- Enclosure rating IP65, IP67, IP68 for robust protection
- Supply voltage range from 9 V DC to 30 V DC
- Resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with CANopen communication interface
- Reverse polarity and short-circuit protection
- Shock and vibration resistant (30 g, 11 ms/10 Hz to 55 Hz)
- Ambient operating temperature from -20 °C to +70 °C
- Metal, aluminum, and plastic housing with PUR cable
- Safety parameters include MTTFD of 103 years and mission time of 20 years
- Includes teach-in function for easy setup
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with CANopen systems and industrial sensor wiring to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring precise distance measurement
- Machine monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 600 mW supports energy efficiency
- Robust protection ratings reduce environmental damage risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0500A2NP0 sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
