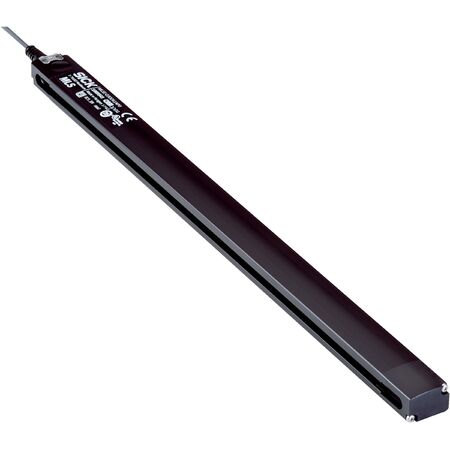

SICK MLSE-0600A2NP0 Proximity Sensor | 600 mm Detection Range | IP65/IP67/IP68 Rated | by SICK
The SICK MLSE-0600A2NP0 Proximity Sensor offers a typical detection range of 600 mm and operates effectively at heights from 10 mm to 70 mm. Designed for industrial automation and robotics, this sensor features robust IP65/IP67/IP68 enclosure ratings, ensuring durability in harsh environments. With a power consumption of just 600 mW and a CANopen communication interface, it provides precise measurements and reliable performance for safety systems and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Detection range typical: 600 mm
- Operating height: 10 mm to 70 mm
- Electrical wiring: DC 4-wire
- Enclosure rating: IP65, IP67, IP68
- Supply voltage: 9 V DC to 30 V DC
- Power consumption: 600 mW
- Resolution typical: 1 mm
- Repeat accuracy typical: 1 mm
- Update rate: 100 Hz
- Communication interface: CANopen
- Protection class: III
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Ambient operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Housing material: Metal, Aluminum, plastic
- Cable material: PUR
- Orientation axes: 3
- Roll, Pitch, Yaw Euler angle measuring range: ±180°, ±90°, ±180°
- Resolution: 0.02°
- Roll, Pitch, Yaw repeatability: ±1°
- Maximum rotation rate: 2,000 °/s
- Sampling rate: 200 Hz
- Dimensions (H x L x W): 30mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- Typical detection range of 600 mm
- Operating height from 10 mm to 70 mm
- DC 4-wire electrical wiring
- Enclosure rating IP65, IP67, IP68 for robust protection
- Supply voltage range from 9 V DC to 30 V DC
- Power consumption of 600 mW
- Resolution and repeat accuracy of 1 mm
- Update rate of 100 Hz with CANopen communication interface
- Reverse polarity and short-circuit protection
- Shock and vibration resistance up to 30 g
- Ambient operating temperature from -20 °C to +70 °C
- Metal, aluminum, and plastic housing with PUR cable
- Orientation measurement with 3 axes and high repeatability
- Certified with EU, UK, ACMA, Moroccan, China-RoHS, cULus, and CANopen
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation for object detection and positioning
- Robotics for orientation and motion sensing
- Safety systems requiring precise detection and measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of 600 mW reduces energy usage
- Durable IP65-IP68 rated housing extends product lifespan, reducing waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MLSE-0600A2NP0 sensor is available for immediate purchase, ideal for industrial automation, robotics, and safety system applications.
