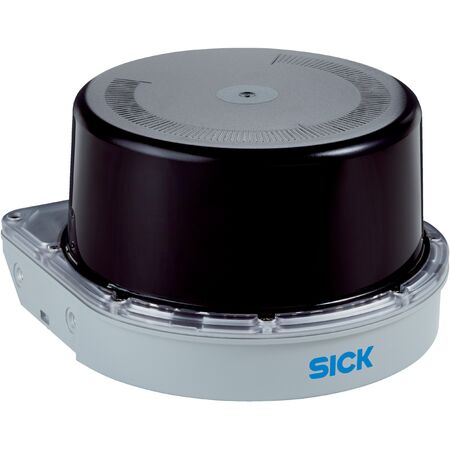

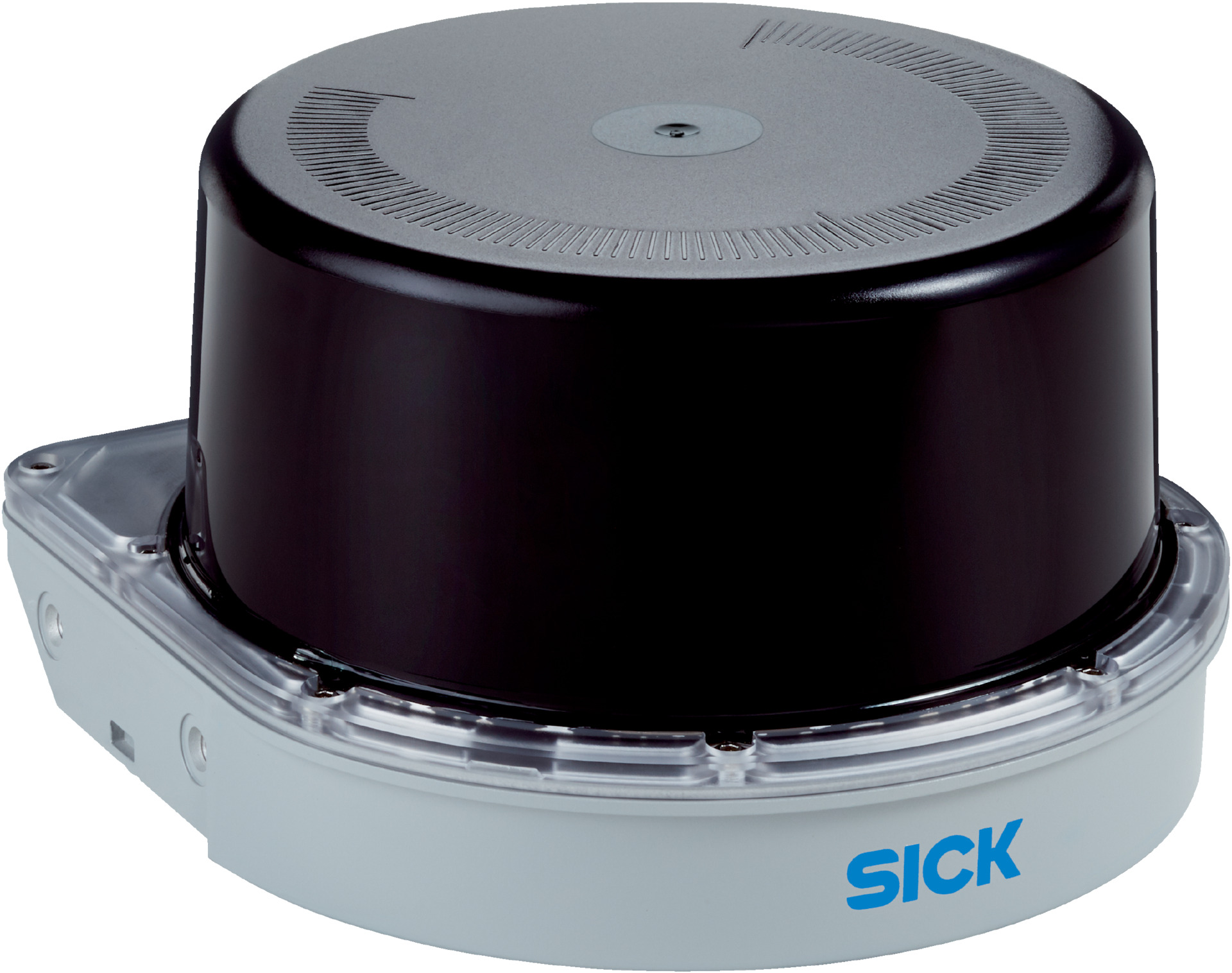

SICK MRS1104C LiDAR Sensor | HDDM+ Measurement | IP65 & IP67 Rated | 0.2m to 64m Range | by SICK
The SICK MRS1104C LiDAR Sensor utilizes HDDM+ measurement technology with an infrared light source for precise distance measurement and object detection. With a working range of 0.2m to 64m and robust IP65 and IP67 protection ratings, this sensor is perfect for both indoor and outdoor applications in industrial automation and safety monitoring. Its low power consumption and advanced filtering options ensure reliable performance in various environmental conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- Horizontal angular resolution: 0.0625°, interlaced
- Vertical angular resolution: 2.5°
- Scanning frequency: 50 Hz, 4 x 12.5 Hz
- Working range: 0.2 m to 64 m
- Scanning range at 10% remission factor: 16 m
- Scanning range at 90% remission factor: 30 m
- Spot size: 10.4 mrad x 8.7 mrad
- Amount of evaluated echoes: 3
- Connection type: M12 round connectors with swivel connector
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: Typical 13 W, max 37 W, start-up max 30 W for 1 s
- Housing material: AlSi12 with polycarbonate optics cover
- Enclosure rating: IP65 and IP67
- Protection class: III (IEC 61140:2016-11)
- Electrical safety: IEC 61010-1:2010-06
- MTBF: 50 years
- MTTFD: > 100 years
- Output data: Contamination indication, IMU (secondary sensor data)
- Scan/frame rate: 55,000 to 165,000 measurement points per second
- Response time: 4 layers typical 20 ms, 1 layer typical 80 ms
- Systematic error: ± 60 mm
- Statistical error: ≤ 30 mm
- Number of field sets: Up to 64
- Simultaneous evaluation cases: Up to 16
- Filters: Fog, particle, average, median, ground reference, edge, echo
- Ethernet: TCP/IP, UDP/IP, 10/100 MBit/s
- Digital inputs/outputs: 8 multiport I/O
- Optical indicators: 2 LEDs
- Configuration software: SOPAS ET, web server display
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80 klx
- Vibration resistance: 10 Hz to 150 Hz, 5 g, 20 frequency cycles
- Shock resistance: 15 g, 11 ms, 6 single shocks per axis; 10 g, 16 ms, 1000 continuous shocks per axis
- Dimensions (H x L x W): 92.5mm x 152mm x 150mm
- Weight: 1.2 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide aperture angle: Horizontal 275°, Vertical 7.5° over 4 scan layers
- High scanning frequency: 50 Hz with 4 x 12.5 Hz layers
- Self-heating for stable operation
- Working range from 0.2 m up to 64 m
- Multiple echo evaluation with up to 3 echoes
- Robust housing with IP65 and IP67 protection ratings
- Supply voltage range: 10 V DC to 30 V DC
- Low power consumption with typical 13 W
- Advanced filtering options including fog, particle, average, median, ground reference, edge, and echo filters
- Ethernet interface with TCP/IP and UDP/IP support
- Configuration via SOPAS ET software and web server display
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor setup and electrical safety standards.
Applications
- Outdoor and indoor distance measurement and object detection
- Industrial automation and safety monitoring
- Environmental scanning and mapping
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
- Advanced filtering improves measurement accuracy in adverse environmental conditions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MRS1104C-111011 LiDAR sensor is available for immediate purchase, ideal for industrial automation, safety monitoring, and environmental scanning applications.
