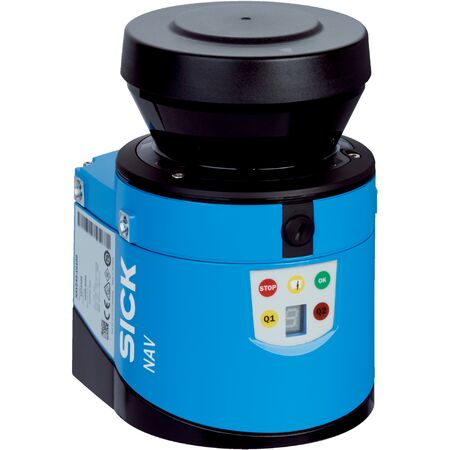

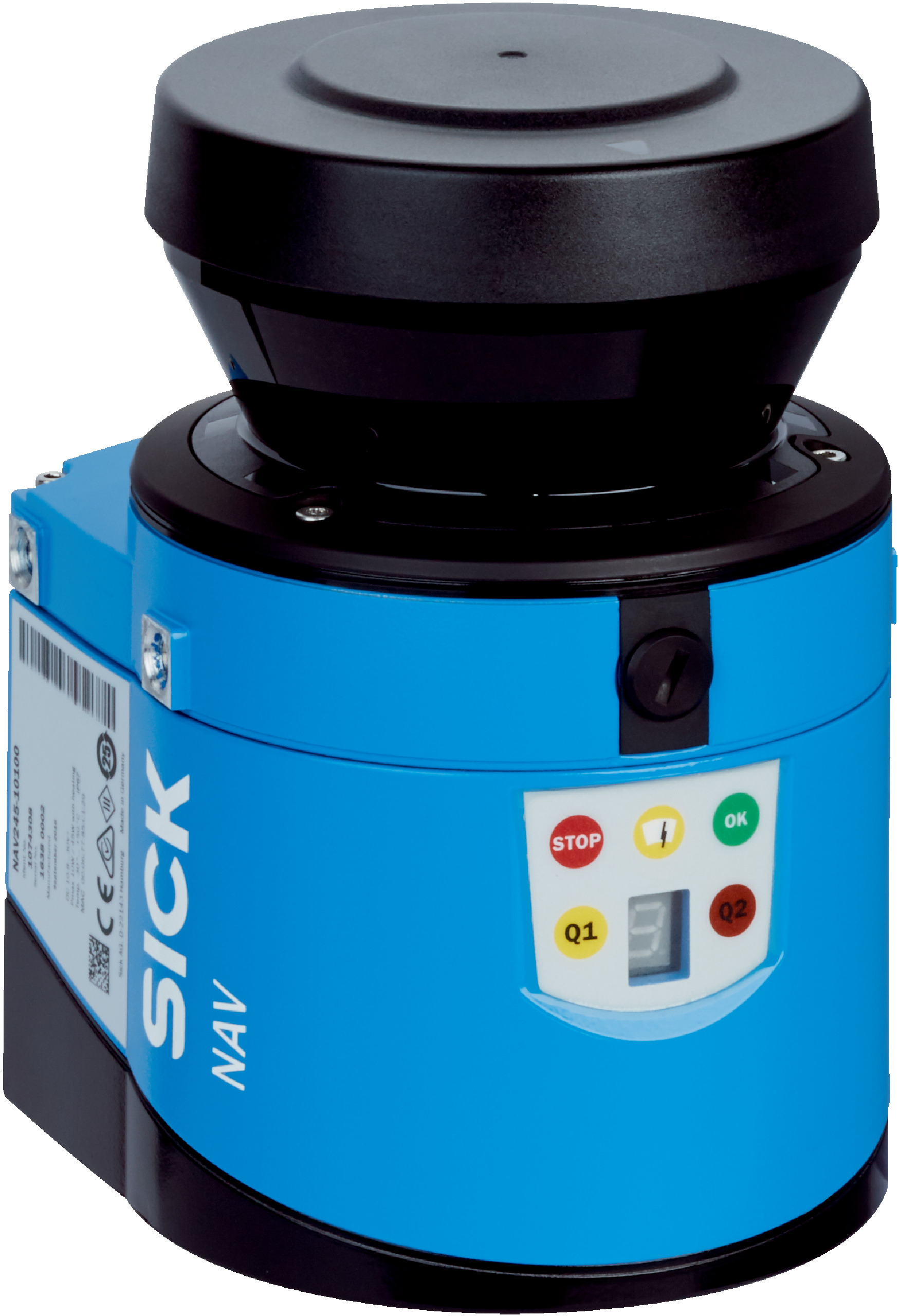

SICK NAV245 Laser Sensor | 270° Aperture Angle | 25 Hz Scanning Frequency | IP65 Rated | by SICK
The SICK NAV245 Laser Sensor features a laser diode light source with a 270° horizontal aperture angle and a high scanning frequency of ≥ 25 Hz. Designed for indoor industrial automation, this sensor excels in object detection and machine safety monitoring, ensuring reliable performance in various applications. With robust aluminum housing and IP65 rating, it withstands challenging environments while maintaining low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Light source: Laser diode (905 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle: 270° horizontal
- Scanning frequency: ≥ 25 Hz
- Angular resolution: 0.001° on reflectors, 0.25° on raw/contour data
- Working range: 0.5 m to 50 m (30 m on reflectors)
- Connection type: 2 x M12 male/female connectors
- Supply voltage: 10.8 V DC to 30 V DC
- Power consumption: Typical 8 W, heating 35 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 1.1 kg
- MTBF: > 100 years
- Systematic error: Typical ±10 mm (RDI), ±30 mm (Contour)
- Statistical error: Typical 8 mm (RDI), 12 mm (Contour)
- Temperature drift: Typical 0.1 mm/K
- Interfaces: Ethernet TCP/IP (10/100 MBit/s), Serial RS-232 (9.6 kBaud to 115.2 kBaud)
- Optical indicators: 4 LED
- Operating temperature: –30 °C to +50 °C
- Storage temperature: –30 °C to +70 °C
- Relative humidity: ≤ 85%, non-condensing
- Dimensions (H x L x W): 152mm x 125mm x 102mm
- Weight: 1.1 kg
Key Features
- Laser diode light source (905 nm) with laser class 1 safety
- Wide horizontal aperture angle of 270°
- High scanning frequency ≥ 25 Hz
- Angular resolution of 0.001° on reflectors and 0.25° on raw/contour data
- Working range from 0.5 m to 50 m (30 m on reflectors)
- Robust aluminum die cast housing with IP65 rating
- Multiple interfaces including Ethernet TCP/IP and RS-232 serial
- Operating temperature range from –30 °C to +50 °C
- Low power consumption with typical 8 W and heating 35 W
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Indoor industrial automation
- Object detection and ranging
- Machine safety monitoring
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK NAV245-10100S01 Indoor Laser Diode Sensor is available for immediate purchase, ideal for indoor industrial automation and safety applications.
