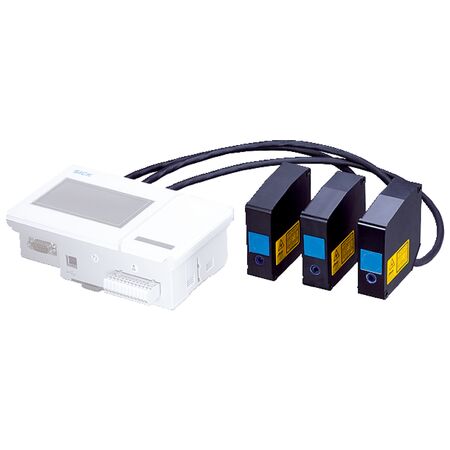

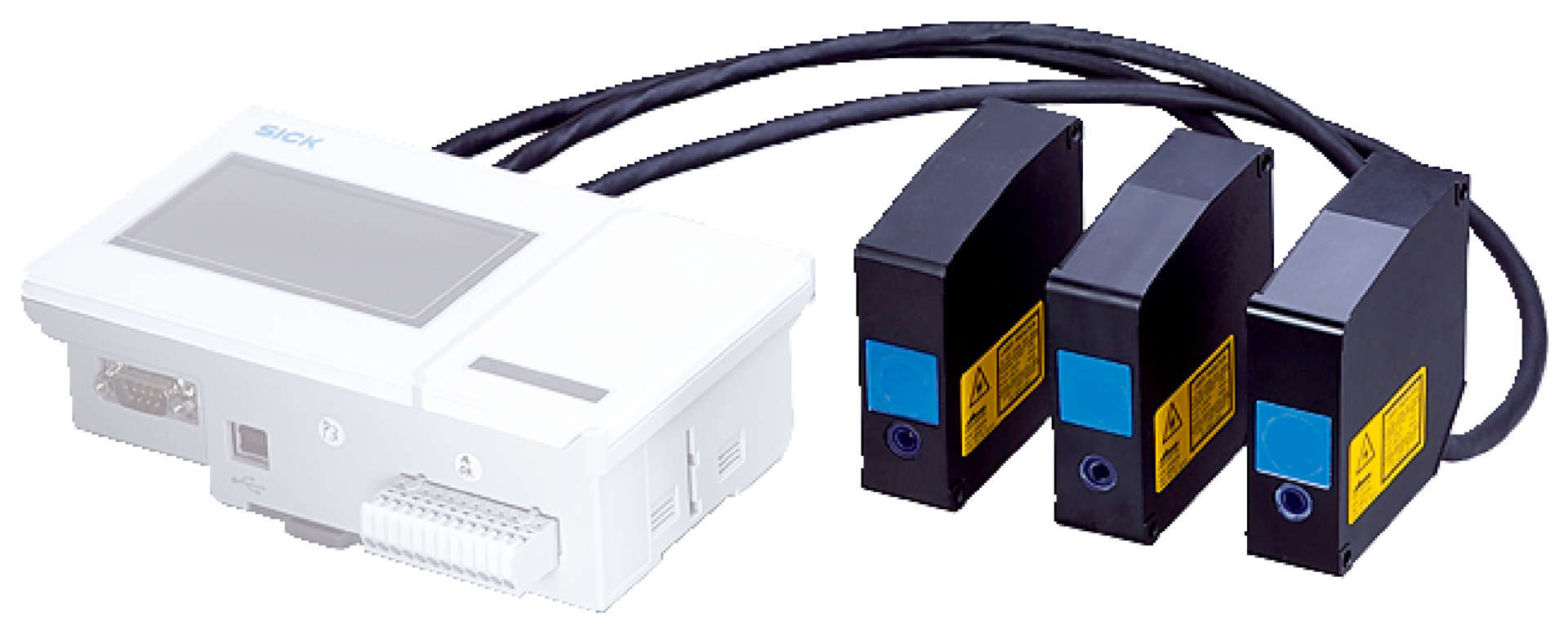

SICK OD5-30T05 Precision Laser Thickness Sensor | 25 mm to 35 mm Range | 0.2 µm Repeatability | IP67 Rated | by SICK
The SICK OD5-30T05 Precision Laser Thickness Sensor is designed for accurate thickness measurement of transparent materials, featuring a measuring range of 25 mm to 35 mm and a high repeatability of 0.2 µm. With its robust IP67 rated enclosure and visible red laser light source, this sensor is perfect for industrial automation and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 25 mm to 35 mm
- Repeatability: 0.2 µm
- Linearity: Diffuse ±8 µm, Specular ±4 µm
- Response time: ≥ 0.1 ms
- Output time: ≥ 0.1 ms
- Light source: Visible red laser light, Laser class 2
- Typical light spot size at 30 mm: 30 µm x 100 µm
- Thickness measurement range for transparent material: 0.7 mm to 5 mm
- Supply voltage: DC 12 V to 24 V
- Warm-up time: ≤ 5 minutes
- Enclosure rating: IP67
- Protection class: III
- Connection: 0.5 m cable with connector
- Digital outputs: 3 PNP/NPN outputs, max 100 mA
- Analog outputs: 3 current/voltage outputs (4 mA to 20 mA, 0 V to 10 V)
- Laser-off input: 1 x laser-off
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: 35% to 85% non-condensing
- Vibration resistance: 10 Hz to 55 Hz, 1.5 mm amplitude
- Shock resistance: 50 G
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 25 mm to 35 mm
- High repeatability of 0.2 µm
- Linearity: Diffuse ±8 µm, Specular ±4 µm
- Response and output time ≥ 0.1 ms
- Visible red laser light source, Laser class 2
- Selectable measuring frequency and mean-value setting
- Automatic and manual sensitivity adjustment
- Mutual interference and glass thickness measurement capabilities
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance with safety regulations.
Applications
- Thickness measurement of transparent materials
- Industrial automation and quality control
- Use with AOD5-P/N1 or standalone via RS-422 interface
