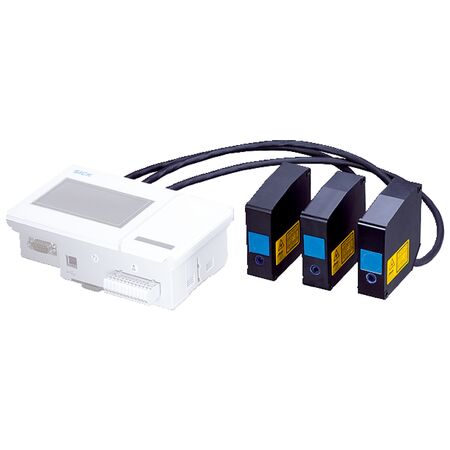

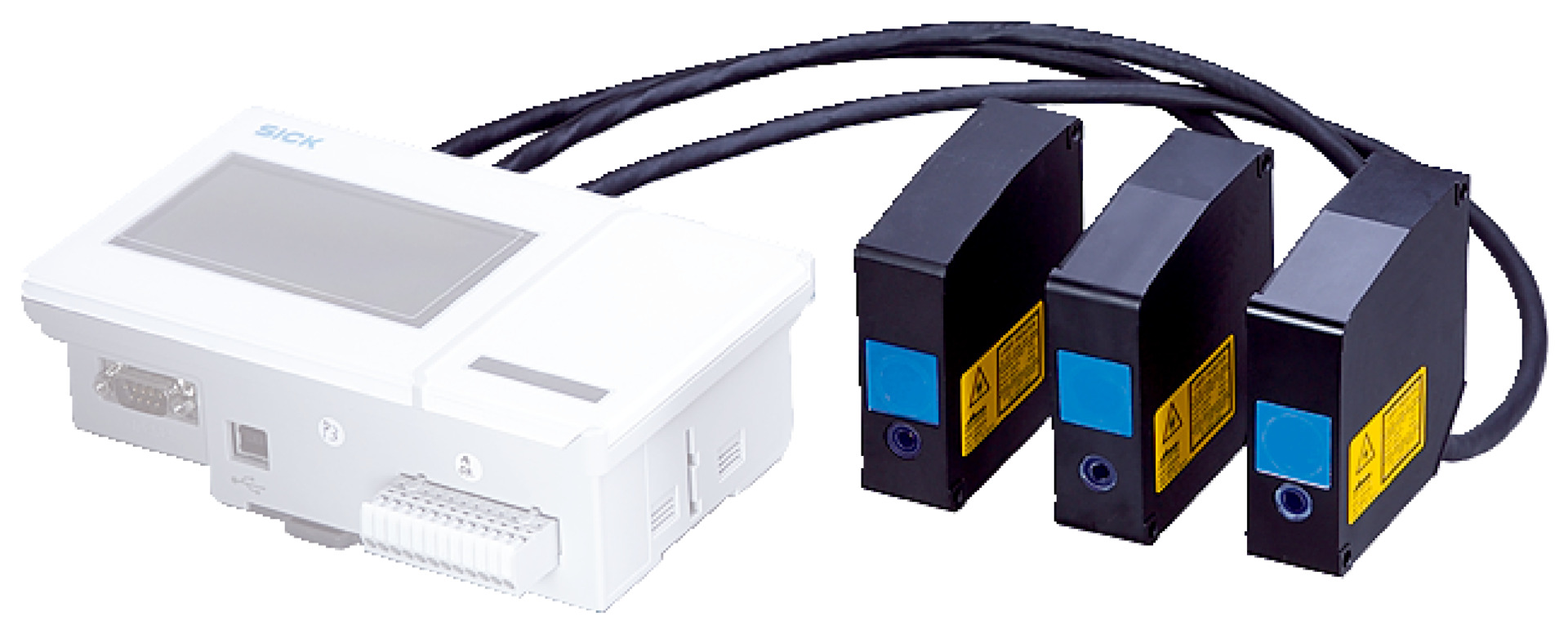

SICK OD5-85T20 Precision Laser Thickness Sensor | 65 mm to 105 mm Range | 1 µm Repeatability | IP67 Rated | by SICK
The SICK OD5-85T20 Precision Laser Thickness Sensor is designed for accurate thickness measurement of transparent materials, featuring a measuring range of 65 mm to 105 mm and a high repeatability of 1 µm. With a fast response time of ≥ 0.1 ms and an IP67 rated enclosure, this sensor is perfect for industrial automation and quality control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 65 mm to 105 mm
- Repeatability: 1 µm
- Linearity: Diffuse ±20 µm, Specular ±16 µm
- Response time: ≥ 0.1 ms
- Light source: Visible red laser, class 2
- Typical light spot size at 85 mm: 70 µm x 290 µm
- Thickness measurement range: 2 mm to 20 mm
- Output types: 3 digital outputs (PNP/NPN), 3 analog outputs (4-20 mA, 0-10 V)
- Supply voltage: DC 12 V to 24 V
- Enclosure rating: IP67
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +60 °C
- Weight: 250 g
- Connection: 0.5 m cable with connector
- Dimensions (H x L x W): 78mm x 75mm x 29mm
- Weight: 0.25 kg
Key Features
- Measuring range: 65 mm to 105 mm
- High repeatability of 1 µm
- Laser class 2 visible red light source
- Thickness measurement capability from 2 mm to 20 mm
- Automatic and manual sensitivity adjustment
- Mean-value setting selectable up to 4,096x
- Fast response time ≥ 0.1 ms
- IP67 rated enclosure for robust protection
- Metal (Aluminum) housing with glass window
- Multiple output types: digital (PNP/NPN), analog (4-20 mA, 0-10 V)
- Supports RS-422 serial communication; RS-232 optional via external unit
